5

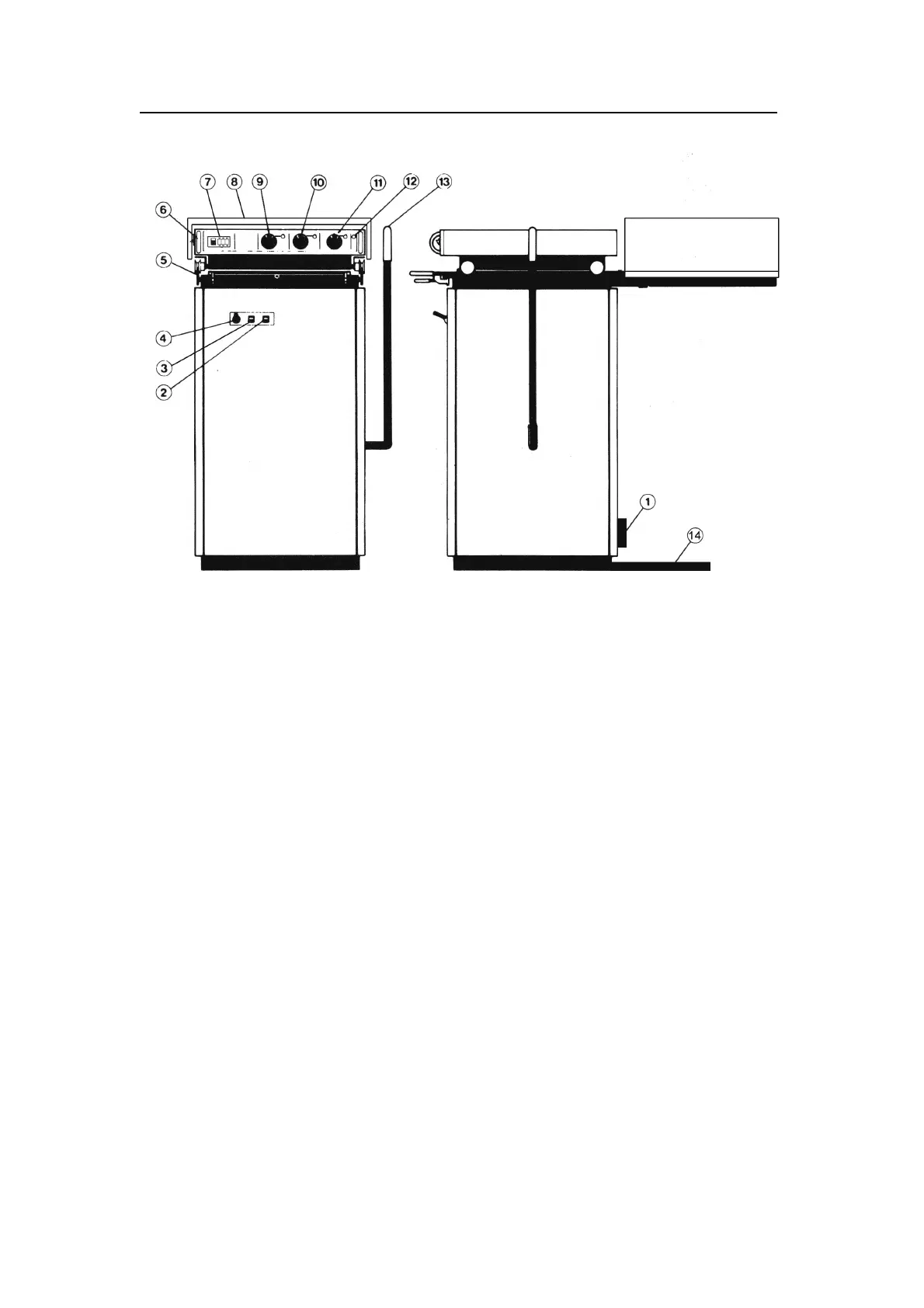

General Layout Formech 450
Features
1 Isolator box and heater power connection
2 Pump switch
3 Aux switch for cooling system (optional)
4 Inflation valve
5 Material clamp
6 Heater movement handle
7 Timer
8 Heater safety guard
9 Inner zone heater control and neon
10 Middle zone heater control and neon
11 Outer zone control and neon
12 Mains neon
13 Drape table lever
14 Stabiliser bar
Mechanical specification Electrical specification
Material size 450mm x 450mm Standard voltage 220-240V
Forming area 422mm x 422mm Standard frequency 50/60Hz
Maximum depth draw 229mm Standard max. wattage 3000W
Max. sheet thickness 6mm Standard machines are single phase
Overall width 660mm Other electrical specification to order
Overall height 1200mm
Overall depth 1240mm
Weight 95 Kilos
Optional extras
Single fan cooling system
Reel feed gantry
Reducing windows – two sizes; 300mm x 300mm - 150mm x 150mm
