3) Push up and keep the spring (figure Q) while removing the spring locking ring nut
(figure R) by sliding it off the rod and remove the spring from the shock absorber. If
the hardware is too wide, it need to remove it before the spring;
ATTENTION: during this operation do not scratch the stem. This could compro-
mise the suspension and damage it.
4) Insert the spring to be
installed (figure T) and
keep it up and reinsert
the locking ring (figure
U);

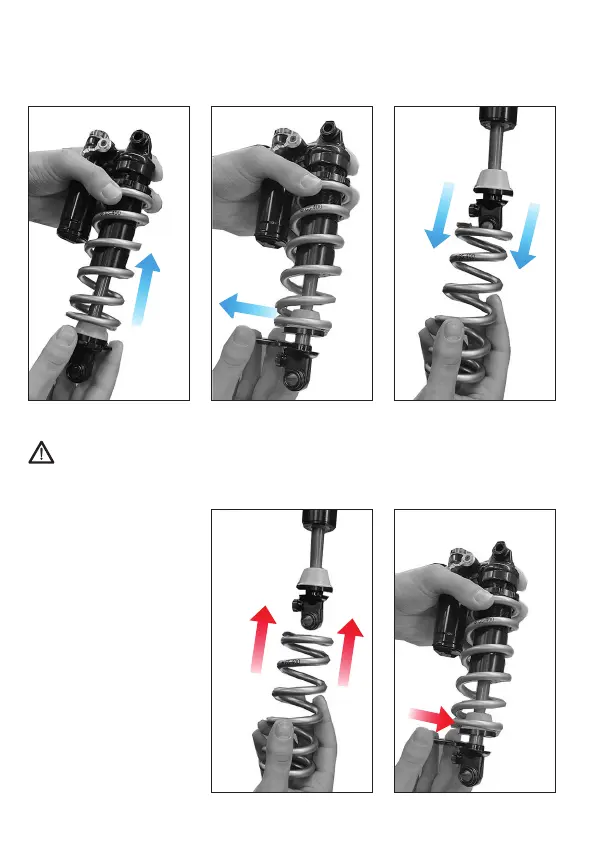

Fig. Q Fig. R Fig. S
Fig. T Fig. U
