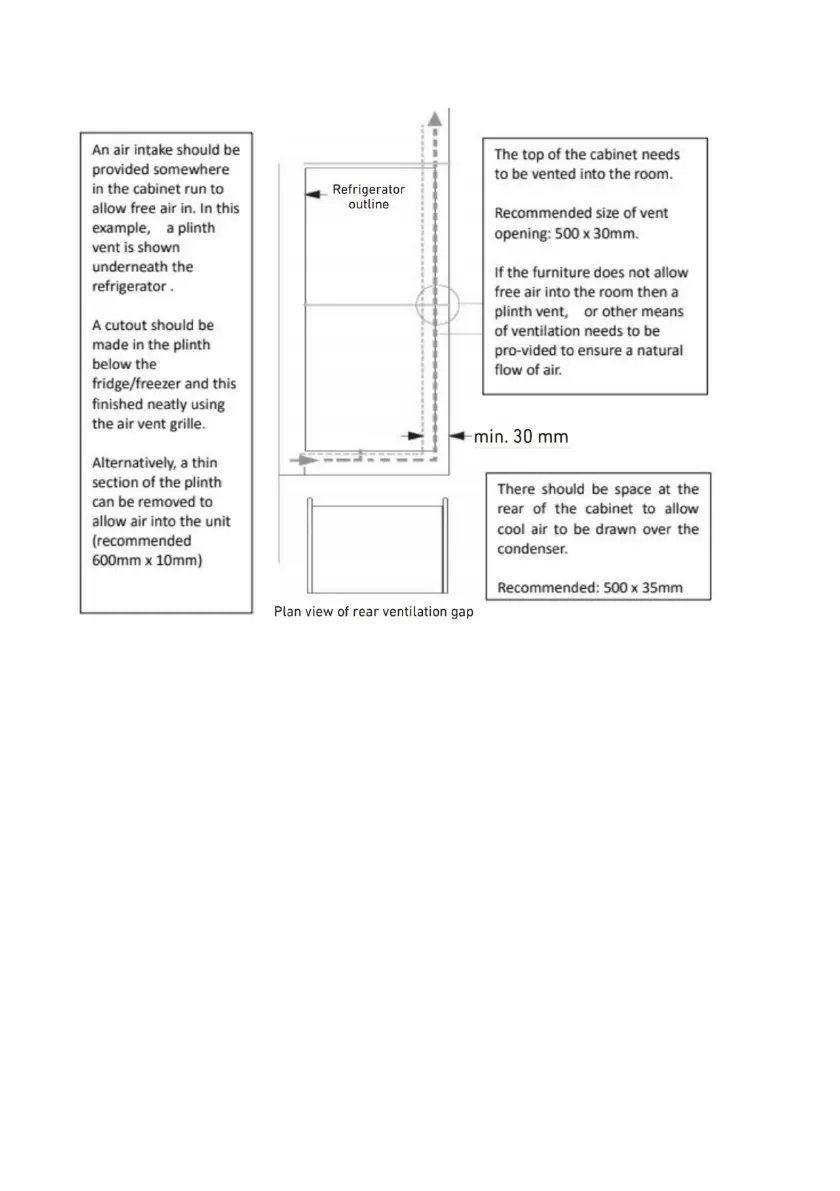

The open channel at the rear is clearly shown. For the correct operation of the appliance it is
important that the top of the housing unit is not blocked off.A channel depth of 1 37/64”- 1
31/32” ( 40-50mm) is normal with most units.
A ventilation hole is required in the plinth of the unit; this allows air to be drawn over the
compressor & heat exchange.
As a rule, the more air that can get in and out, the better and more efficient the operation of
the product.
