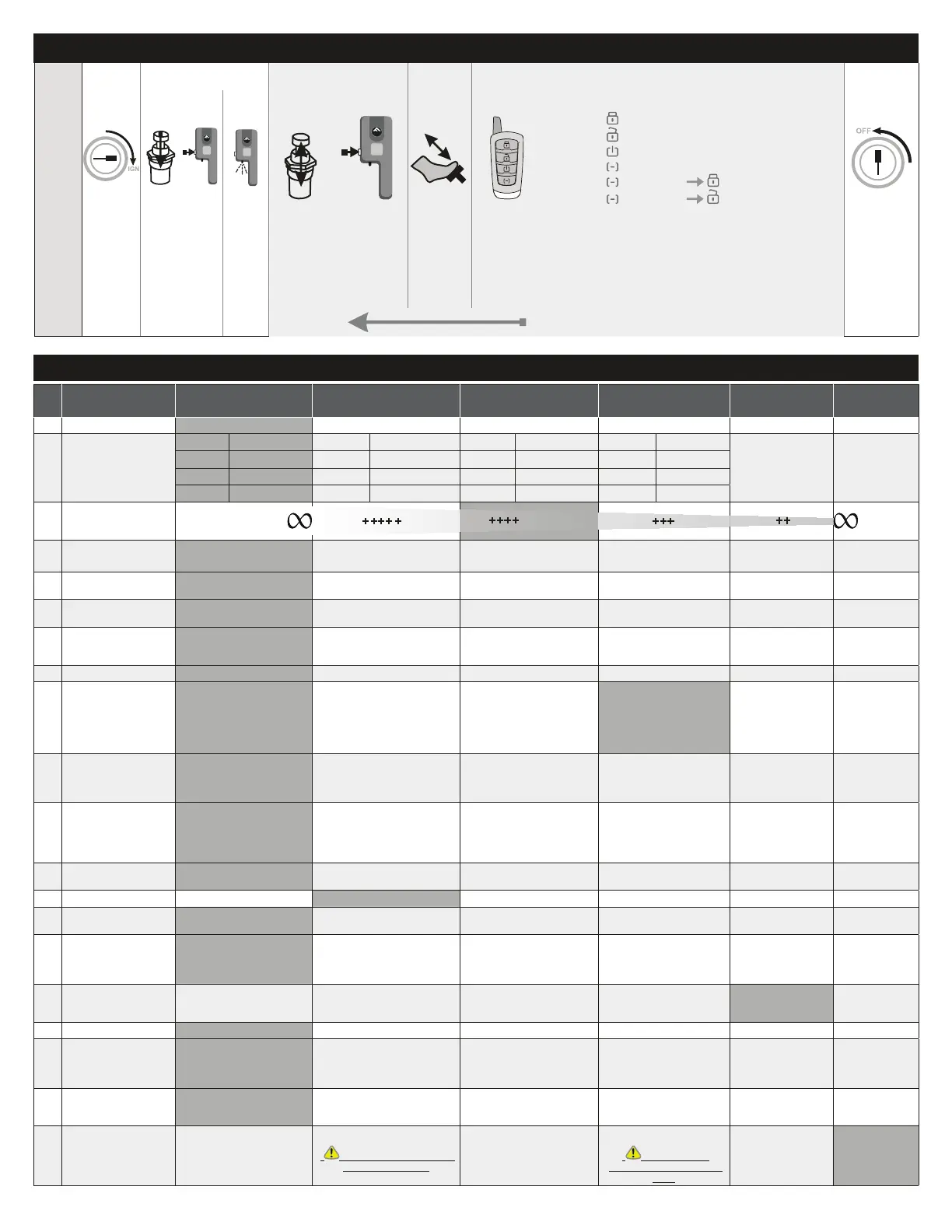

Fortin RF642W - Page 2

FUNCTION
FUNCTION MODE 1 MODE 2 MODE 3 MODE 4 MODE 5 MODE 6
1 — — —————
2
Programmable Output
(+) Ign/Acc/Start
(FUNCTION 31
MODE 4)
White (+)Ignition2 White (+)Accessory2 White (+)Start2 White (+)Start
——
Orange (+)Accessory Orange (+)Accessory Orange (+)Accessory Orange (+)Ignition2
Pink (+)Ignition Pink (+)Ignition Pink (+)Ignition Pink (+)Ignition
Yellow (+)Start Yellow (+)Start Yellow (+)Start Yellow (+)Start2
3 Tachless sensivity
Increase
crank time
(By default)
Decrease
crank
time
4
Remote car starter
runtime
Gas: 15 minutes
Diesel: 30 minutes
Gas: 7 minutes
Diesel: 14 minutes
Gas: 3 minutes
Diesel: 6 minutes
———
5
Add Remote on FMH
antenna series
Add Remote —————
6 Doorlock option No
Unlock before remote-start &
Lock after remote-start.
Lock after remote-start.
Unlock and relock after
shut-down.
Relock 10 sec.after
shut-down.
Disarm before
shut down.
7
Ignition Doorlock
option
No
Lock after foot-brake &
unlock after key is turned
OFF.
Unlock after key is turned
OFF.
Doorlock Output at
Ignition only.
——
8 Unlock Pulse Time Single 0.25 sec Double 0.25 sec Single 4.0 sec Single 2.5 sec Single 1.5 sec Single 0.75 sec
9
Active or Passive
Alarm & Starter Kill.
Active
Press LOCK to activate
the Alarm and starter-kill.
Passive (Lock disabled)
Arm alarm activate
starter-kill 30(MODE
4), 60(MODE5), or
120(MODE6) sec. after the
door is closed.
Passive (Lock enabled)
Arm alarm, activate
starter-kill and lock doors
30(MODE 4), 60(MODE5),
or 120(MODE6) sec. after
the door is closed.
Passive arm
30 seconds (by default
if MODE 2 ot 3 is
activated.
Passive arm
60 seconds. (if
MODE 2 ot 3 is
activated.
Passive arm
120 seconds.
(if MODE 2 ot 3
is activated.
10
Starter Kill Output.
Required function 32
mode 4. - Dk.Blue
(A8) = starter-kill.
Starter-kill &anti-grind Anti-grind only Relay normally open — — —
11
Sound Con rmation
& LED antenna
Antidémarreur
1st LOCK/UNLOCK silent
2nd LOCK/UNLOCK
sound
---------------------------
Antenna LED active.
LOCK/UNLOCK
sound always.
Antenna LED disabled.
Antenna LED disabled
with ignition.
Con rmation sound
at LOCK only
Panic mode
disabled
12
Output horn/siren
con
guration
Horn(-) only. Siren(+) Output (E1) white
Siren(+) Output (E1) white
and Horn(-)
Siren(-) only (A7) — —
13 Con rmation Pulse Long Short — — — —
14
Alarm ON/OFF
Starter ON/OFF
Alarm OFF
Remote-starter ON
Alarm ON
Remote-starter ON.
Alarm ON
Remote-starter OFF
———
15
Smart Arming
Smart Doorlock
Smart Lock pulse
Disable
(Unlock signal) Automatically
LOCK and rearm alarm if
door(s) are not opened after
30 seconds.
Automatic Lock when
starter kill arms.
Lock pulse only when its
Unlock
——
16 Cold Start Timer 3 hours at -5
o
c/Runtime 1.5 hours at -5
o
c/Runtime 3 hours at -5
o
c/5 minutes
1.5 hours at -5
o
c/5
minutes
Cold time OFF —
17 — — — — — — —
18 Diesel Mode Disable
Enable (20 seconds)
Delay between Ignition
power up and Starter (crank).
Enable (10 seconds)
Delay between Ignition
power up and Starter
(crank).
Enable
No delay between
Ignition power up and
Starter (crank).
——
19 Turbo timer Disable Run 2 minutes. Run 4 minutes. — — —
20
Engine supervision:
-Tachless -
-analog tach-
-Tach Data-Link-
Tachless on crank
and supervision Tach
Data-Link.
Tachless only.
(
vehicles with automatic
transmission only)
—
Start (crank) 8 seconds
on Tachless.
(
vehicles with
automatic transmission
only)
Start (Crank) 8 sec
+ Supervision by
Data-LInk Tach
Tach Data-Link
only
STEP 1 STEP 2 STEP 3 STEP 4 STEP 5 STEP 6
Disarm
the
system
(The
antenna
led must
not be
 ashing,
see enter/
exit valet
mode
p.4).
OR
F
M
H
2
-
W
OR
F
M
H
2
-W
X1
MODE 1 - LOCK
MODE 2 -
UNLOCK
MODE 3 -
START (3 SECONDS)
MODE 4 - FUNCTION (3 SECONDS)
MODE 5 -
FUNCTION LOCK
MODE 6 -
FUNCTION UNLOCK
Turn the
Ignition
ON.
Press and
hold the valet
switch or the
antenna but-
ton until the
Parking lights
turn ON, the
horn/siren will
chirp.
The
LED will
 a s h
rapidly.
Press and release the valet
switch or the antenna but-
ton X time for the desired
function. The Parking
lights will  ash and the
horn/siren will chirp each
time to con rm.
Press and
release the
brake-ped-
al once.
Turn the Igni-
tion OFF to
exit program-
ming.
The Parking
lights will
 ash 4
times.
Press the BUTTON on a programmed remote to select the mode (X).
The Parking lights will  ash 1-6 times to con rm.
Return to step 3 to programmed the next option
F
M
H
2
-W
FUNCTION PROGRAMMING
