SFP & SFP+ Ports
Green: Connected
Flashing Green: Transmitting and
receiving data
Off: No link established
Ethernet Ports Link/Activity
Green: Connected
Flashing Green: Transmitting & receiving data
Off: No link established
Ethernet Ports Speed
Green: Connected at 1Gbps
Amber: Connected at 100Mbps
Off: Connected at 10Mbps or not in use
Logo
Green: The unit is on
Off: The unit is off
Power
Green: The unit is on
Off: The unit is off
Status
Green: Normal
Flashing Green: Booting up
Red: The unit has a major alarm
HA
Green: Operating in an HA cluster
Red: HA failure
Off: Not operating in an HA cluster

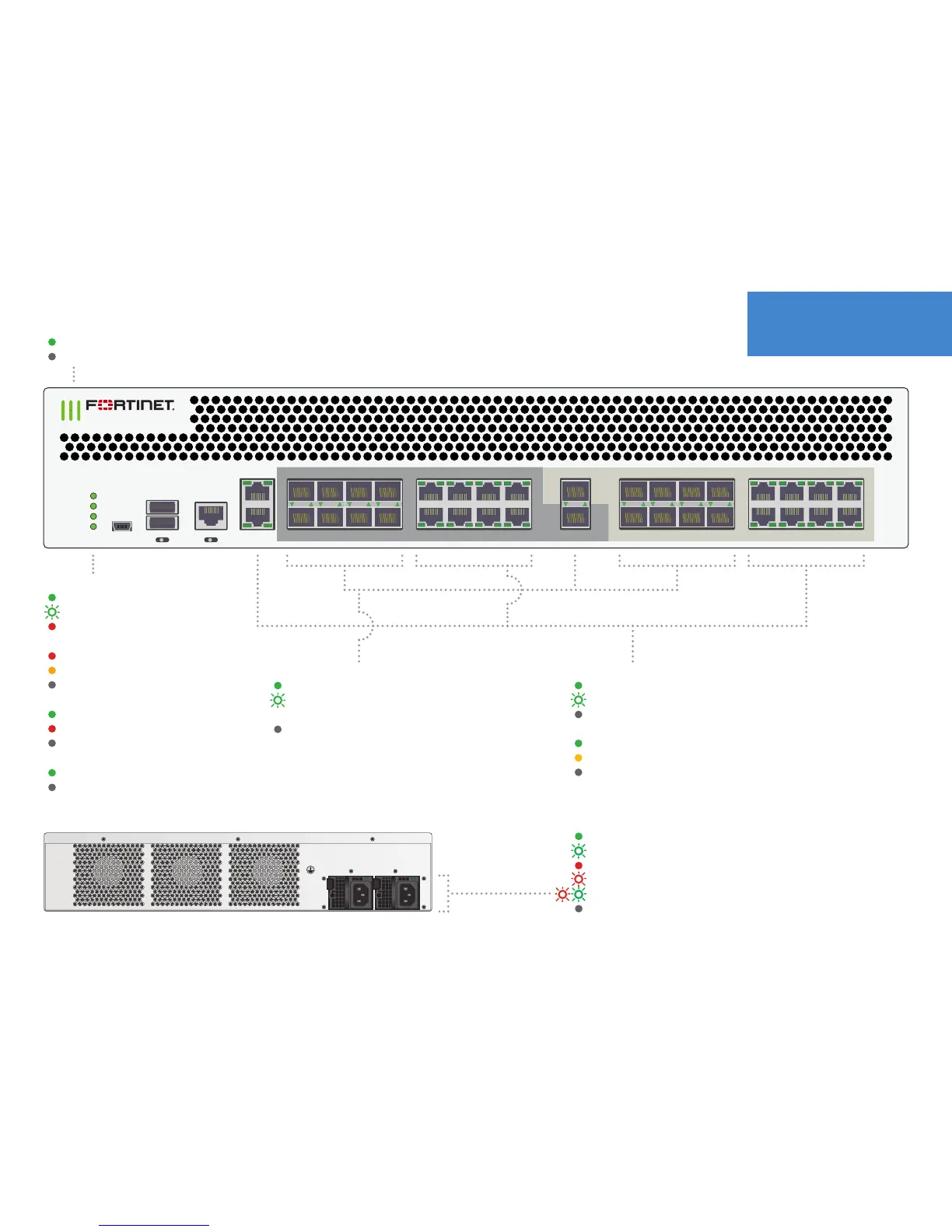

Device Guide
FortiGate 1000D
7
8
1
2
3 5
4 6
31
32
25
26
27 29
28 30
13 15
9 11
14 1610 12
17
18
19 21 23
20 22 24
B
A
10G SFP+
MGMT 1
MGMT 2
USB CONSOLE
USB MGMT
STATUS
ALARM
HA
POWER
Alarm
Red: The unit has a major alarm
Amber: The unit has a minor alarm
Off: The unit is operating normally
Power Supplies
Green: Power supply providing power
Flashing Green: Power supply functional but not providing power
Red: Power supply has failed
Flashing Red: Only this power supply is not powered
Flashing Red and Green: Power supply warning
Off: Power supply not powered
