10 11

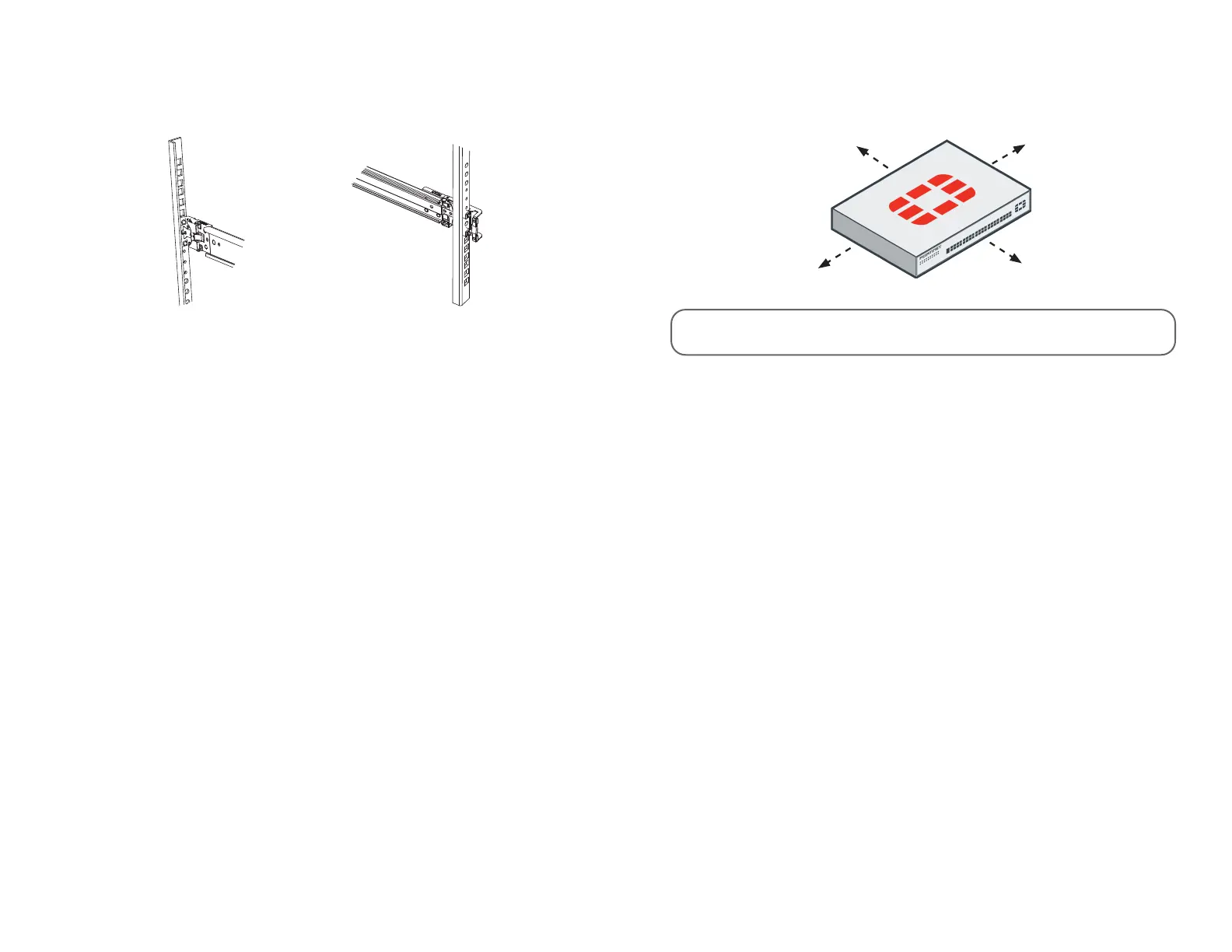

Install the outer rails on a rack
1. Ensure that the right and left rails are correctly identified.
Front
Rear
2. Press the front of the outer rail into three available screw holes on the
front of the rack until you hear a click.
3. Ensure that the rail is level, then slide the rear of the rail over three
holes on the back of the rack until you hear a click.
4. No screws are required to secure the rail to the rack.
5. Repeat steps 2 - 3 for the remaining outer rail.
Install the device into the rack
1. Ensure that there is enough room around the unit to allow for sufficient
air flow.
2. Ensure that the inner rails are properly connected to the device, and the
that the outer rails are securely attached to the rack.
3. Align the inner rails with the outer rails and slide the device onto the
rails until the locking tabs click into the locked position.
4. Ensure that even pressure is applied to both sides of the device while
doing this.
5. Simultaneously push the locking tabs on both sides while pushing the
device all the way into the rack.
6. For additional security, secure the handles to the front of the rack with
the two provided rack mount screws.
7. To remove the device from the rack, pull it out as far as it will go, then
push the locking tabs on both sides and slide the device out.
After the device is installed in the rack, plug the provided power cable into
the rear of the unit, and then into a grounded electrical outlet or separate
power source, such as an uninterruptible power supplies (UPS) or a power
distribution units (PDU).
Desktop Installation
Note: Place the device on a flat, clean and stable surface.
1.5in
1.5in
1.5in
1.5in
