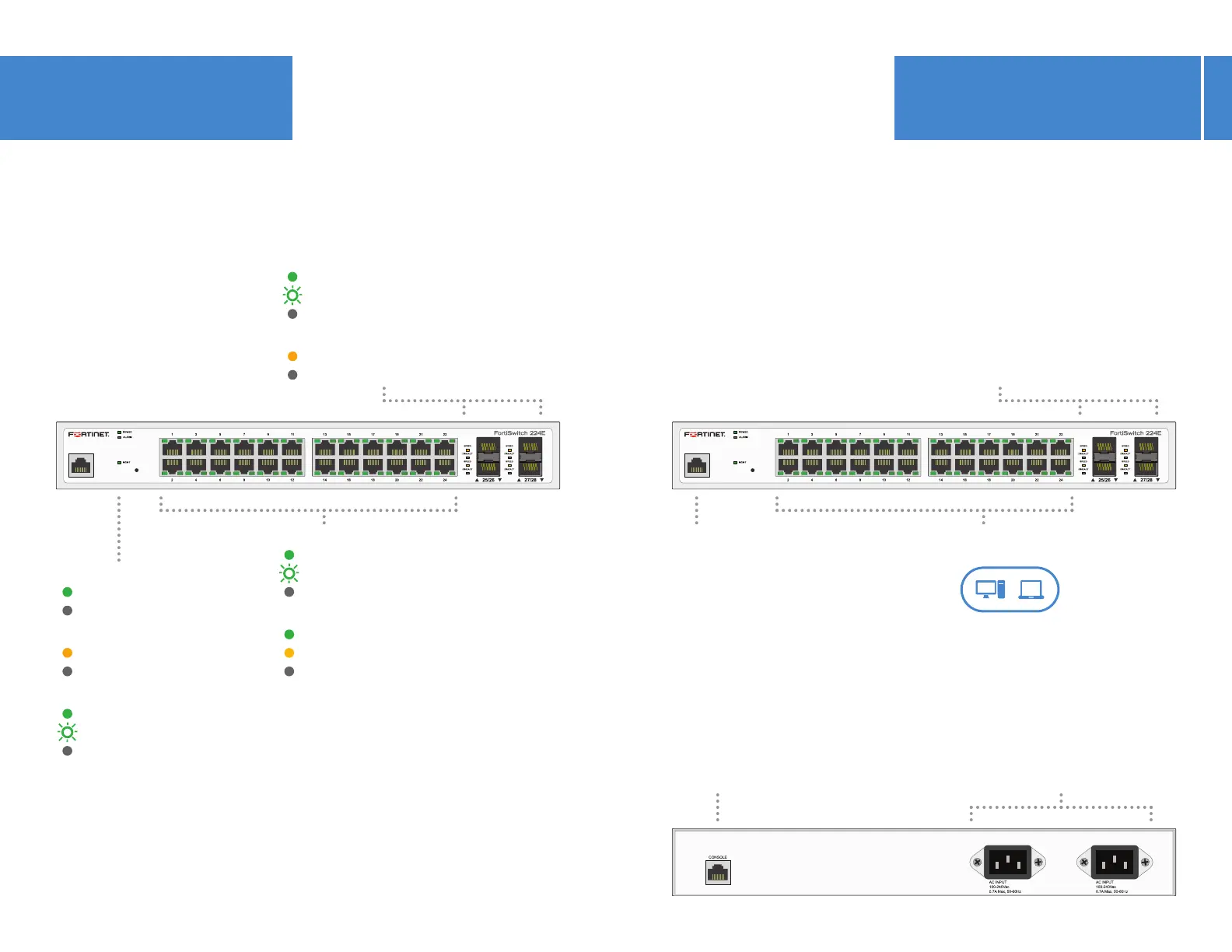

FortiSwitch 224EFortiSwitch 224E
MGMT MGMT
SFP Ports Speed
Amber: Connected at 1Gbps
Off: No link established
SFP Ports Link/Activity
Green: Connected
Flashing Green: Transmitting & receiving data
Off: No link established
MGMT
Green: Connected
Flashing Green: Transmitting & receiving data
Off: No link established
Power
Green: The unit is on
Off: The unit is off
Alarm
Amber: The unit has a fault
Off: No faults detected
Ethernet Ports Link/Activity
Green: Connected
Flashing Green: Transmitting & receiving data
Off: No link established
Ethernet Ports Speed
Green: Connected at 1Gbps
Amber: Connected at 100Mbps
Off: Connected at 10Mbps or not in use
Power Supplies
100-240V AC, 0.7A Max, 50/60Hz
redundant power supplies
Console (RJ-45)
Optional connection to the
management computer
Provides access to the CLI
Ethernet Ports 1 to 24 (RJ-45)
Gigabit Ethernet network connections
MGMT (RJ-45)
Client port for management
Default IP address is 192.168.1.99
SFP Ports 25 to 28 (SFP)
1Gbps small form-factor pluggable
transceiver ports
