FortiSwitch 224E-POEFortiSwitch 224E-POE
+12V 14A
AND
-54V 7.8A
DC INPUT FOR REMOTE POWER SUPPLY SPECIFIED IN MANUAL
MGMT MGMT

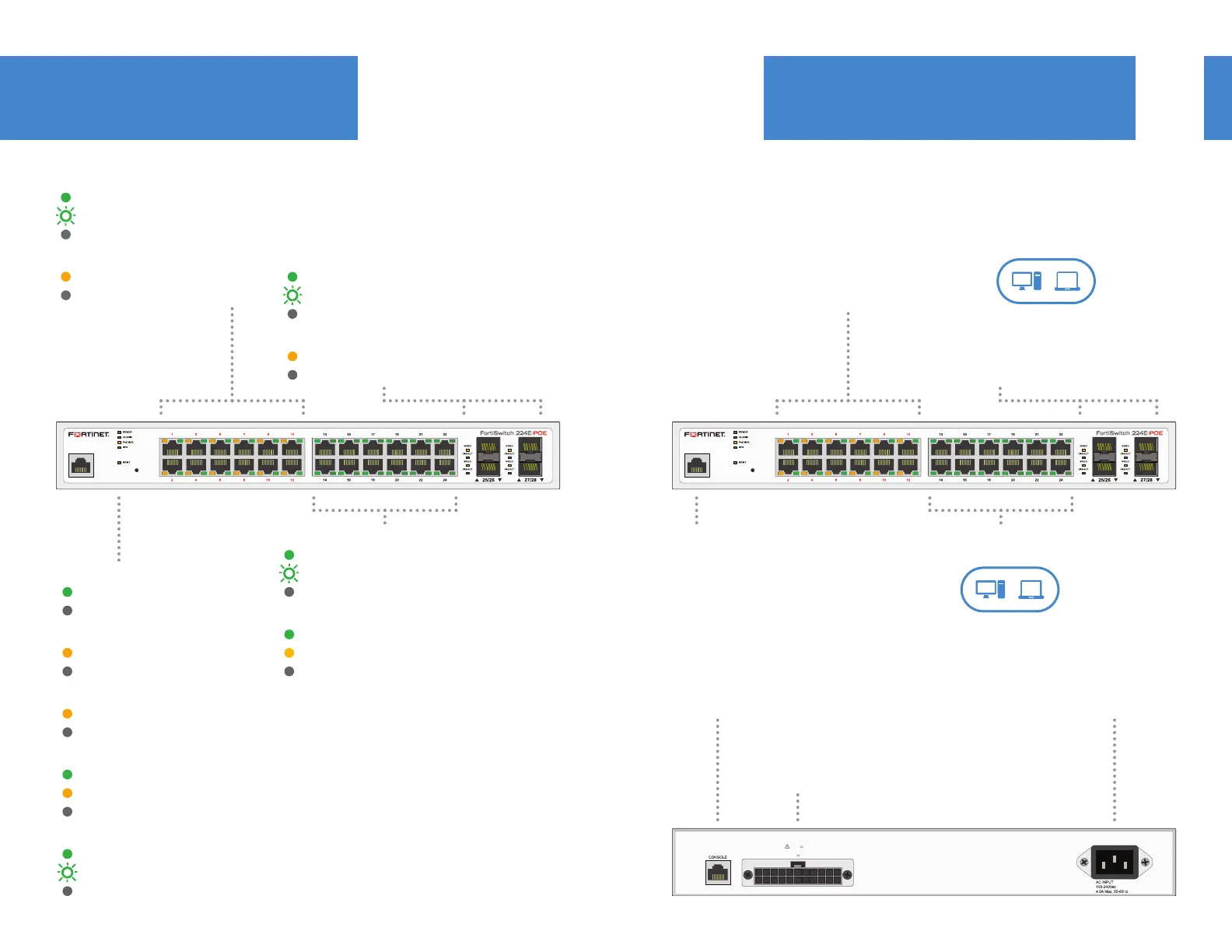

Ethernet Ports 1 to 12 (RJ-45)
Gigabit Ethernet ports with smart Power over Ethernet
(PoE) providing up to a maximum of 180W for all ports
RPS
Optional connection for redundant power
12V DC, 14A and -54V DC, 7.8A
PoE MAX
Amber: Maximum output power budget reached
Off: Power available for new PD
RPS
Green: Power on and the RPS DC input is normal
Amber: RPS failure
Off: Power off, no connection
MGMT
Green: Connected
Flashing Green: Transmitting & receiving data
Off: No link established
Power
Green: The unit is on
Off: The unit is off
Alarm
Amber: The unit has a fault
Off: No faults detected
PoE Ports Link/Activity
Green: Connected
Flashing Green: Transmitting & receiving data
Off: No link established
PoE Ports Power
Amber: Providing power
Off: Not providing power
SFP Ports Speed
Amber: Connected at 1Gbps
Off: No link established
SFP Ports Link/Activity
Green: Connected
Flashing Green: Transmitting & receiving data
Off: No link established
Ethernet Ports Link/Activity
Green: Connected
Flashing Green: Transmitting & receiving data
Off: No link established
Ethernet Ports Speed
Green: Connected at 1Gbps
Amber: Connected at 100Mbps
Off: Connected at 10Mbps or not in use
MGMT (RJ-45)
Client port for management
Default IP address is 192.168.1.99
Ethernet Ports 13 to 24 (RJ-45)
Gigabit Ethernet network connections
SFP Ports 25 to 28 (SFP)
1Gbps small form-factor pluggable
transceiver ports
Console (RJ-45)
Optional connection to the
management computer
Provides access to the CLI
Power Supply
100-240V AC, 4.0A Max, 50/60Hz
