Fortinet Rugged 70F Series - Physical Installation; Device Dimensions; DIN Rail Mounting

1514

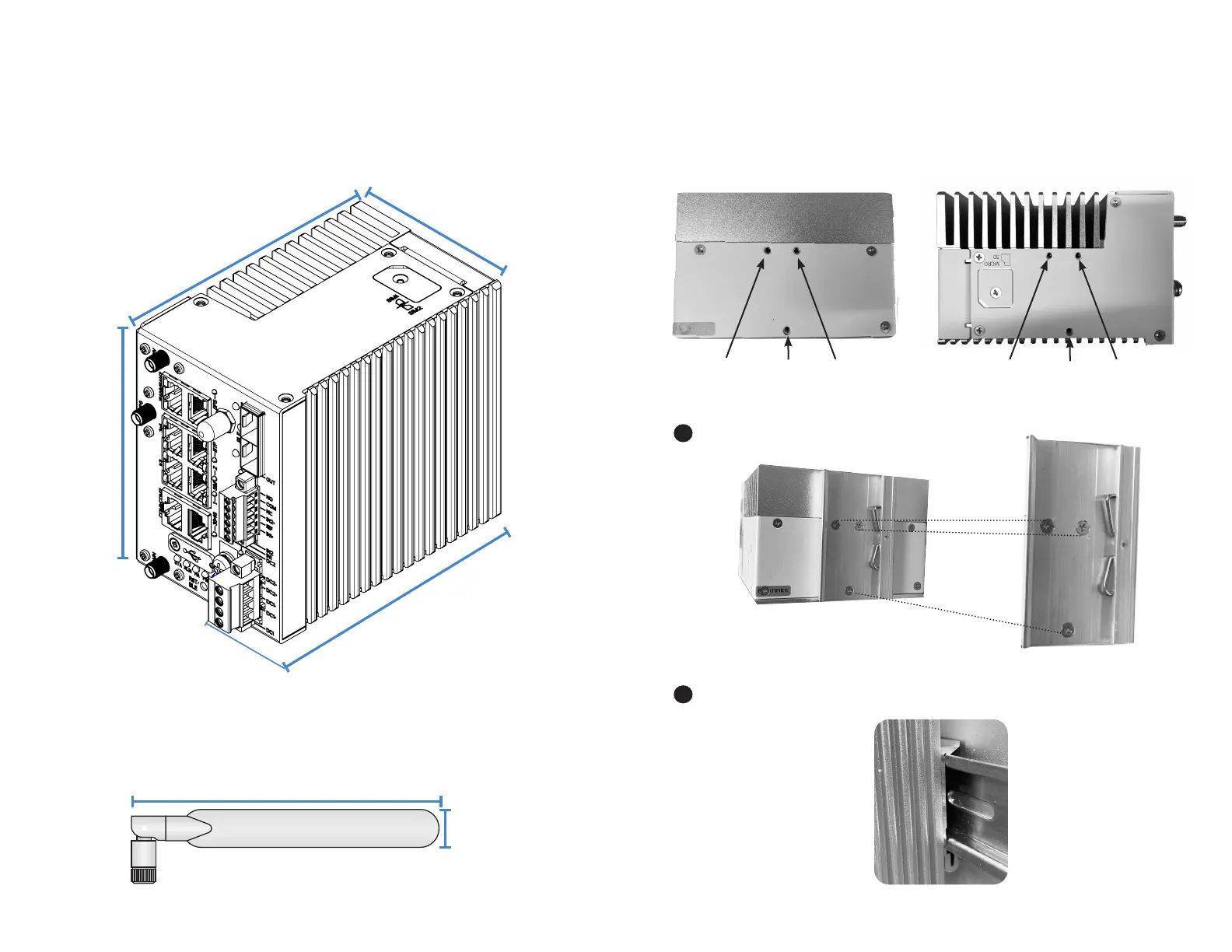

Dimensions DIN Installation



Rear Mounting Holes


Side Mounting Holes
DIN Bracket
Rail Mounted
DIN Bracket Installed
1
2
Depth w/ connector
140.5mm (5.53in)
Height
80.5mm (3.17in)
Depth
122.0mm (4.80in)
Width
110.0mm
(4.33in)
Length
205mm (8.07in)
Width
25mm (.98in)

