MICI 440 Series CCTV Camera Head Exd IIC T6 ATEX approved.

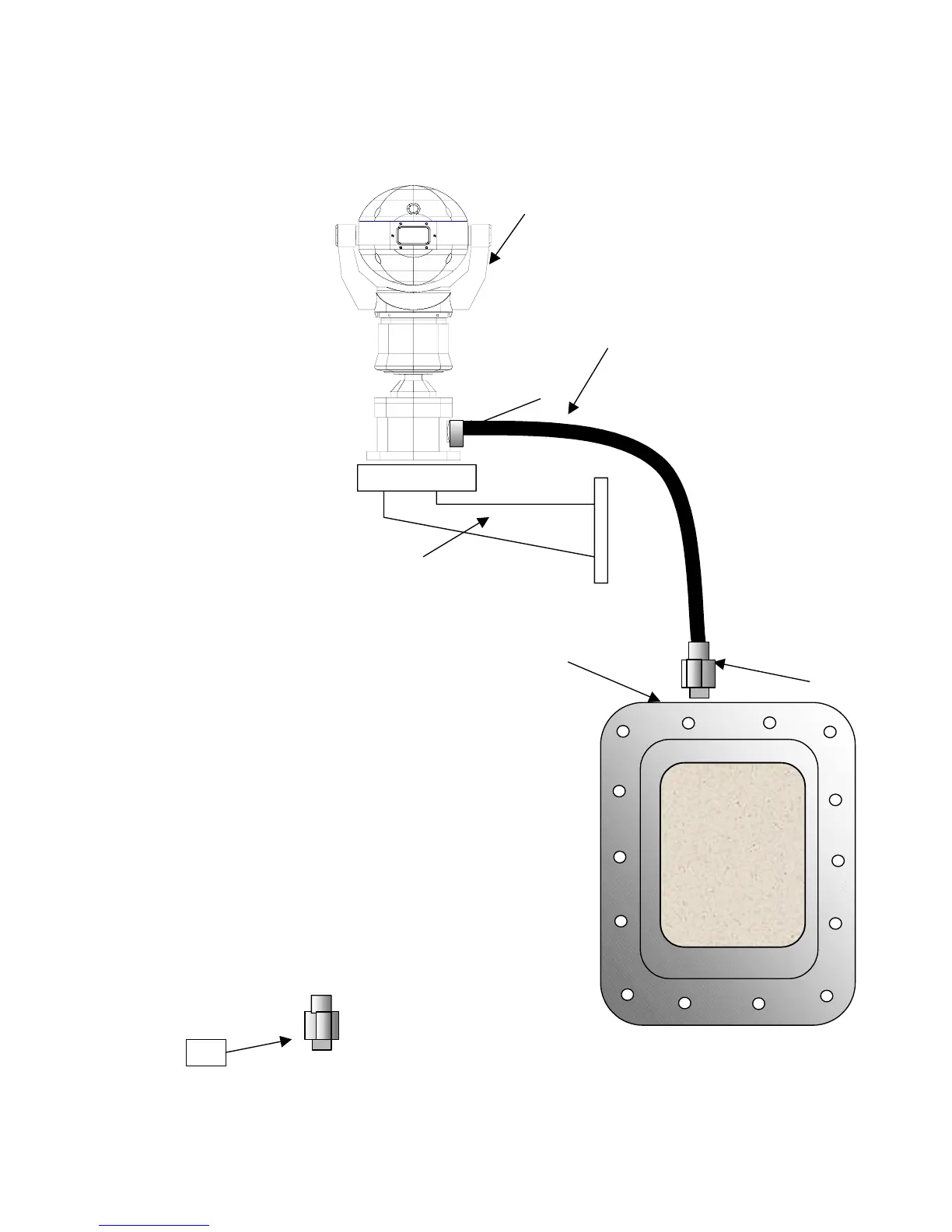

Installation using Flexible Conduit.
Item1 Camera Head Unit Exd IIC Ta –20 to 60ْ C P/no MIC 1-440
Item 02 Exd Cable Gland KOPEX type HAM 0404 P/no G3 Exd
(Supplied loose)
Item 03 Flexible conduit KOPEX type FLT04 P/no FVFC04
Item 04 Exd Cable Gland KOPEX type HAM 0404 P/no G3 Exd
(Supplied loose)
Item 05 Junction Box Exd (supplied loose) P/No JB EExd
Item 06 Exd Barrier Glands (not supplied) P/no
To be selected by installer to match incoming cables.
Item 07 Mounting Bracket Heavy Duty (Not supplied) P/no FVMB
4
3 Length of conduit to be
specified by customer up
to 20 meters maximum
6
1
2
7
PSU &
Interface
5
EExd Junction Box
6
MIC1-440 Instruction Manual Page 40 of 43 Issue 2
