Thanks for choosing and using forklift. The product is of excellent workmanship with
reasonable design and simple operation. For the purpose of safety and right use of the product,
please read this instruction manual carefully.
Note: All the information is based on the data obtained when this instruction manual is issued.
The company will have right to improve the product at any time without any prior notice.
Therefore, we would like to advise you to obtain our latest information try all means.
1. Standard of Specification
Load: 2000-3000Kg Length of Fork: 1100-1220mm
Width of Fork: 550-685mm Height of Fork:65-190-200mm
Net Weight: 74-90Kg
2. Mounting handle welding prat to Pump Body
Some tools are necessary after purchasing forklift such as an iron hammer and a pinchers. In
addition to these tools, some other parts are necessary such as a positioning bearing(106) and two
elastic pins (107). Note: One of pins is in the positioning bearin(106) and all the other parts are
contained in a plastic bag and bound to the handle welding prat with adhesive plaster.

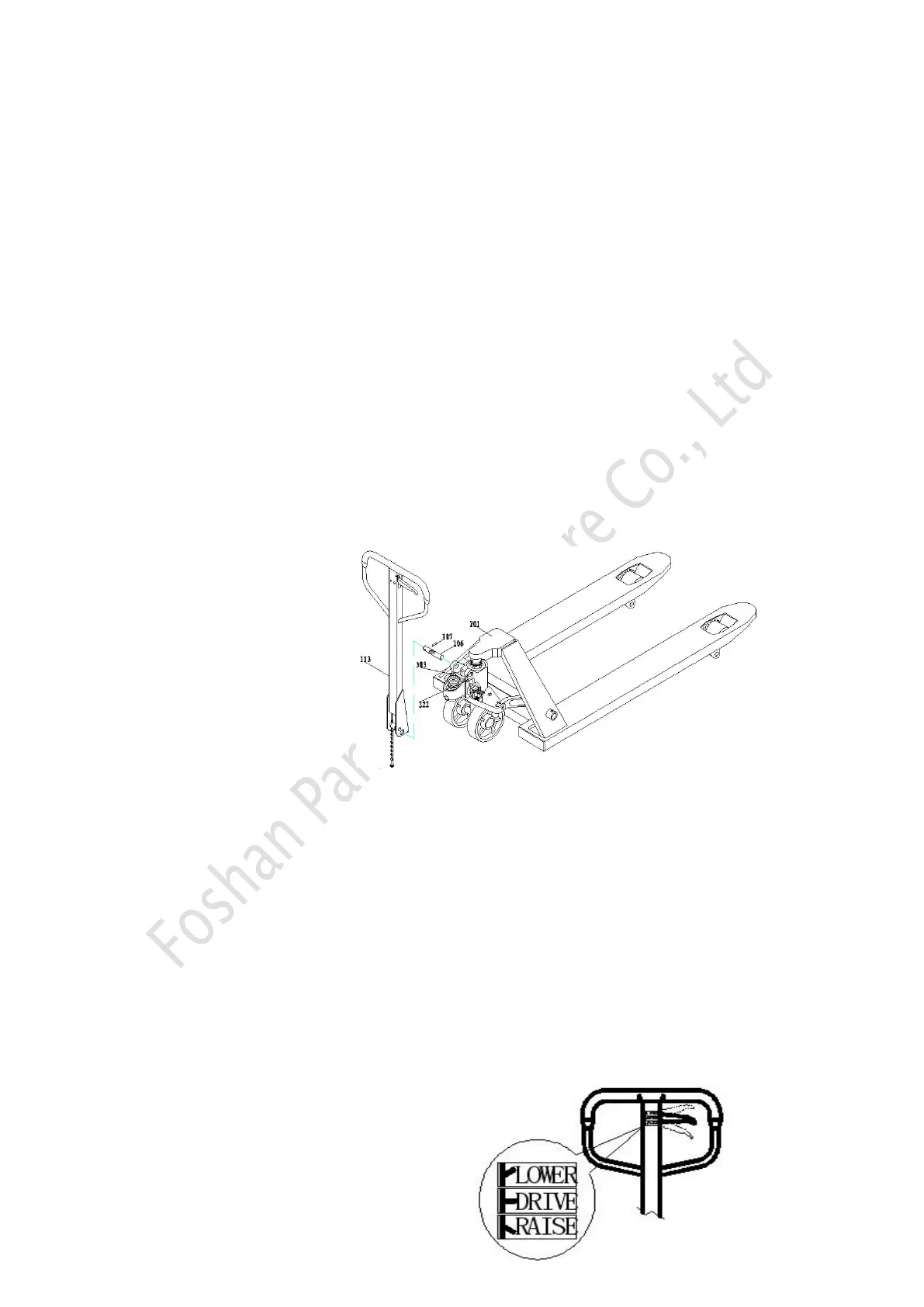

Note: handle welding prat must match the pump body
106、Positioning bearing
107、Elastic pin
113、Handle welding prat
201、Body frame
322、Limit level
2.1 Put the handle welding prat(113) onto pump core and use hammer hitting positioning
bearing(106) to make it enter hydraulic pump and handle welding prat(113) (note: Make center
hole of positioning bearing(106) in "V' shape and the elastic pin facing yourself). Use pinchers
and hammer to hit elastic pin (106) into the positioning bearing (106).
2.2 Remove nut with wrench and set the handle welding prat(113), remove limit level(322) (see
figure l).
2.3 Make hexagonal nut (104), drop bolt (103) and chain (102) through the center 'hole of
positioning bearing (106), and adjust pedal control(327) and put drop bolt(103) the trough
at front end and make hexagonal nut (104) stick to bottom of pedal control(327).
After done the process, the handle welding prat has been mounted to pump.
3. Adjusting of Buffer Device
On the handle welding prat of forklift, you can view control handle(119). It can be adjusted to
three positions which are:
Raise
Drive Position
Lower
