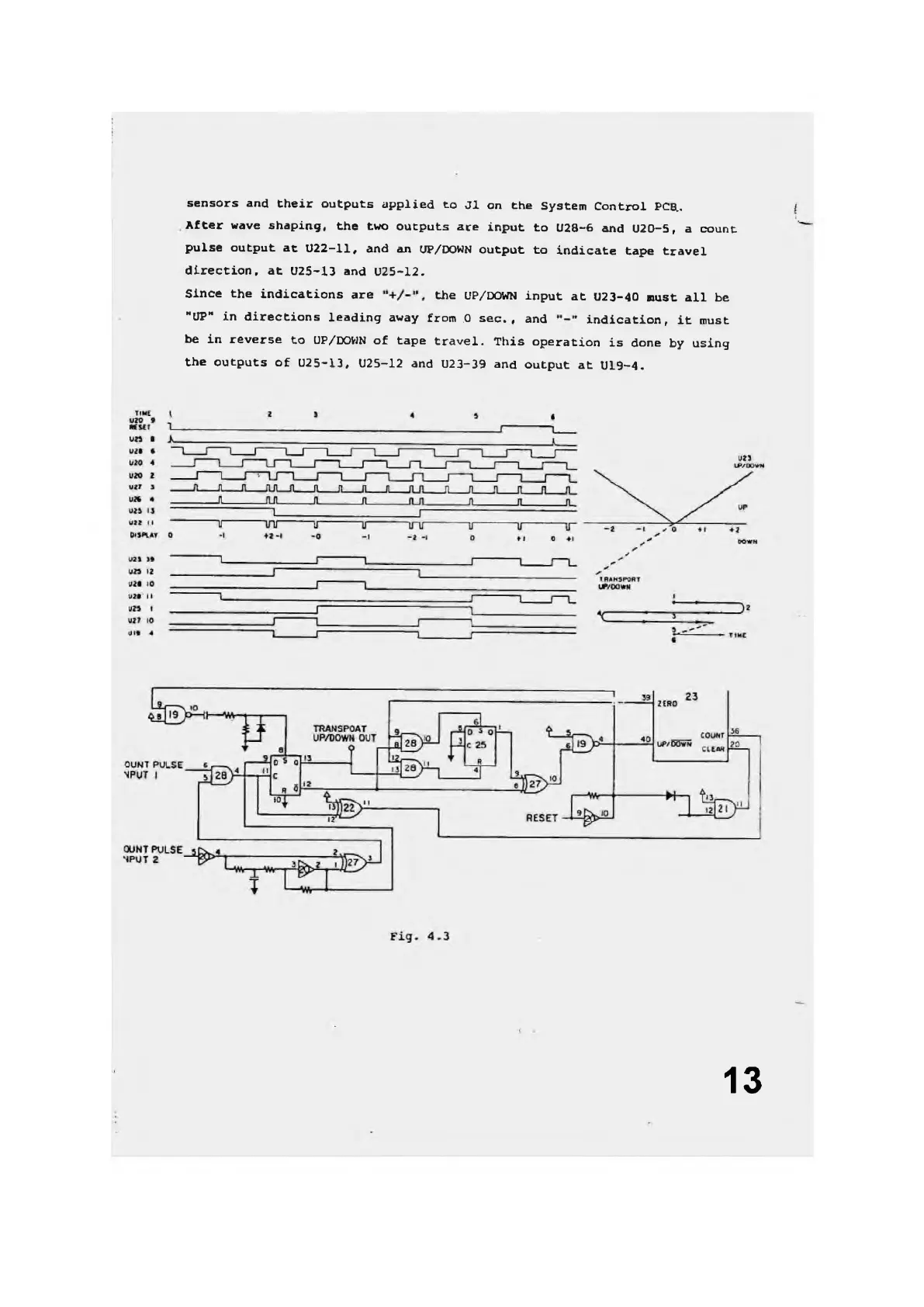

sensors

and

their

outputs

applied

to

JI

on

the

System

Control

PCS..

After

wave

shaping,

the

two

outputs

are

input

to

U23-6

and

U20-5

,

a

count

pulse

output

at

U22-11,

and

an

up

/

down

output

to

indicate

tape

travel

direction,

at

U25-13

and

U25-12.

Since

the

indications

are

the

UP/DOWN

input

at

U23-40

must

all

be

"UP"

in

directions

leading

away

from

,0

sec.,

and

indication,

it

must

be

in

reverse

to

UP/DOWN

of

tape

travel.

This

operation

is

done

by

using

the

outputs

of

U25-13,

U25-12

and

U23-39

and

output

at

U19-4.
