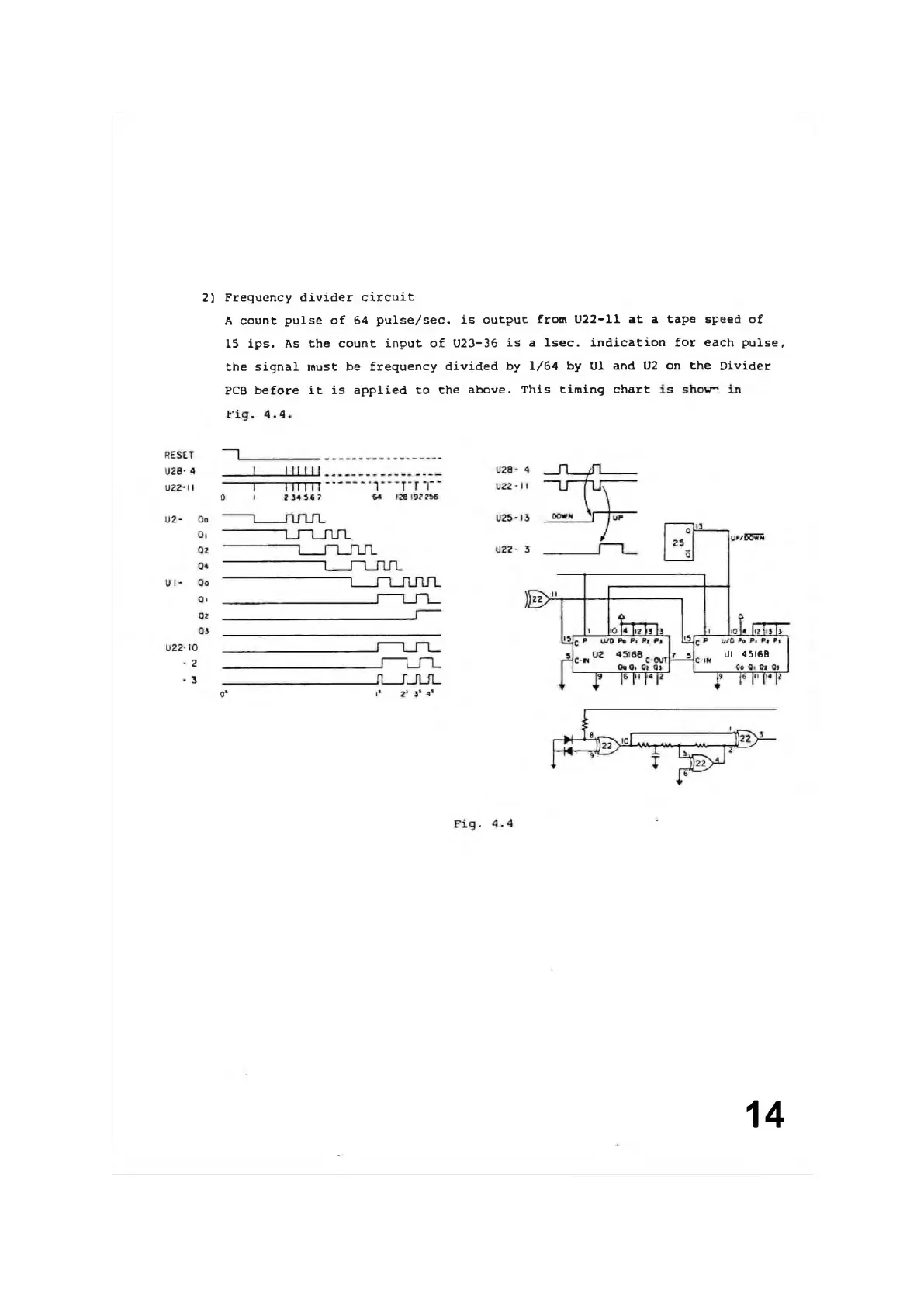

2)

Frequency

divider

circuit

A

count

pulse

of

64

pulse/sec.

is

output

from

U22-11

at

a

tape

speed

of

15

ips.

As

the

count

input

of

U23-36

is

a

Isec.

indication

for

each

pulse,

must

be

frequency

divided

by

1/64

by

UI

and

Ü2

on

the

Divider

the

signal

it

is

applied

to

the

above.

This

timing

chart

PCB

before

UI

45I6B

14
