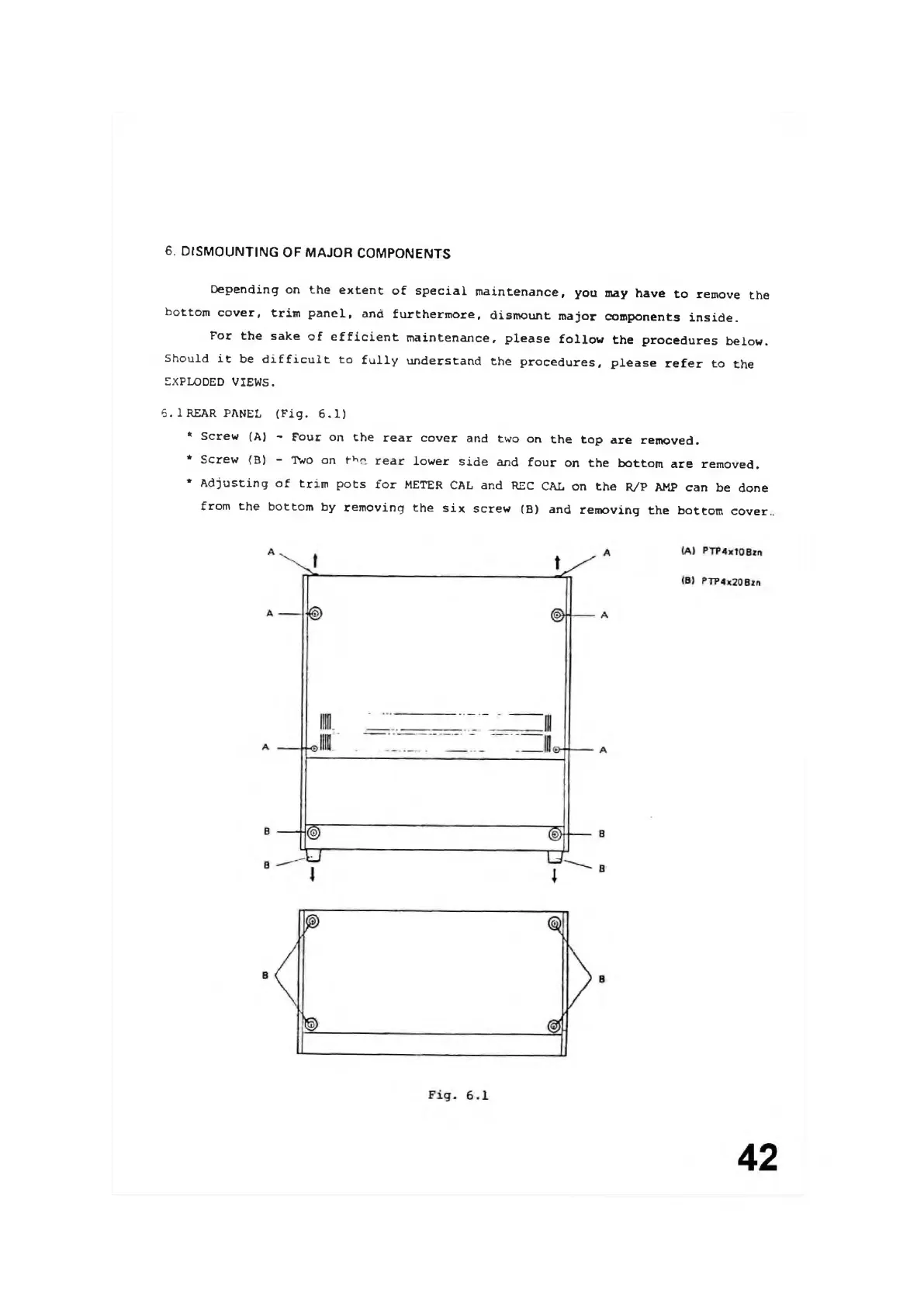

6.

DISMOUNTING

OF

MAJOR

COMPONENTS

Depending

on

the

extent

of

special

maintenance,

you

may

have

to

remove

the

bottom

cover,

trim

panel,

and

furthermore,

dismount

major

components

inside.

For

the

sake

of

efficient

maintenance,

please

follow

the

procedures

below.

Should

it

be

difficult

to

fully

understand

the

procedures,

please

refer

to

the

EXPLODED

VIEWS.

6.1

REAR

PANEL

(Fig.

6.1)

*

Screw

(A)

-

Four

on

the

rear

cover

and

two

on

the

top

are

removed.

*

Screw

(B)

—

Two

on

the*

rear

lower

side

and

four

on

the

bottom

are

removed.

*

Adjusting

of

trim

pots

for

METER

CAL

and

REC

CAL

on

the

R/P

AMP

can

be

done

from

the

bottom

by

removing

the

six

screw

(B)

and

removing

the

bottom

cover.
