6.2 TAPE TRANSPORT PANEL (Fig. 6.2)
* Remove the head housing by unscrewing the two housing screws (A) with a coin
* Rotate the pinch roller cap (B) CCW to remove it and then take off the pinch
roller.
* Remove the four screw (C) and the head base panel can be lifted out.
* Loosen screw (D) and the panel display and the panel function unit can be
lifted out.
. * Remove four screw (E) .

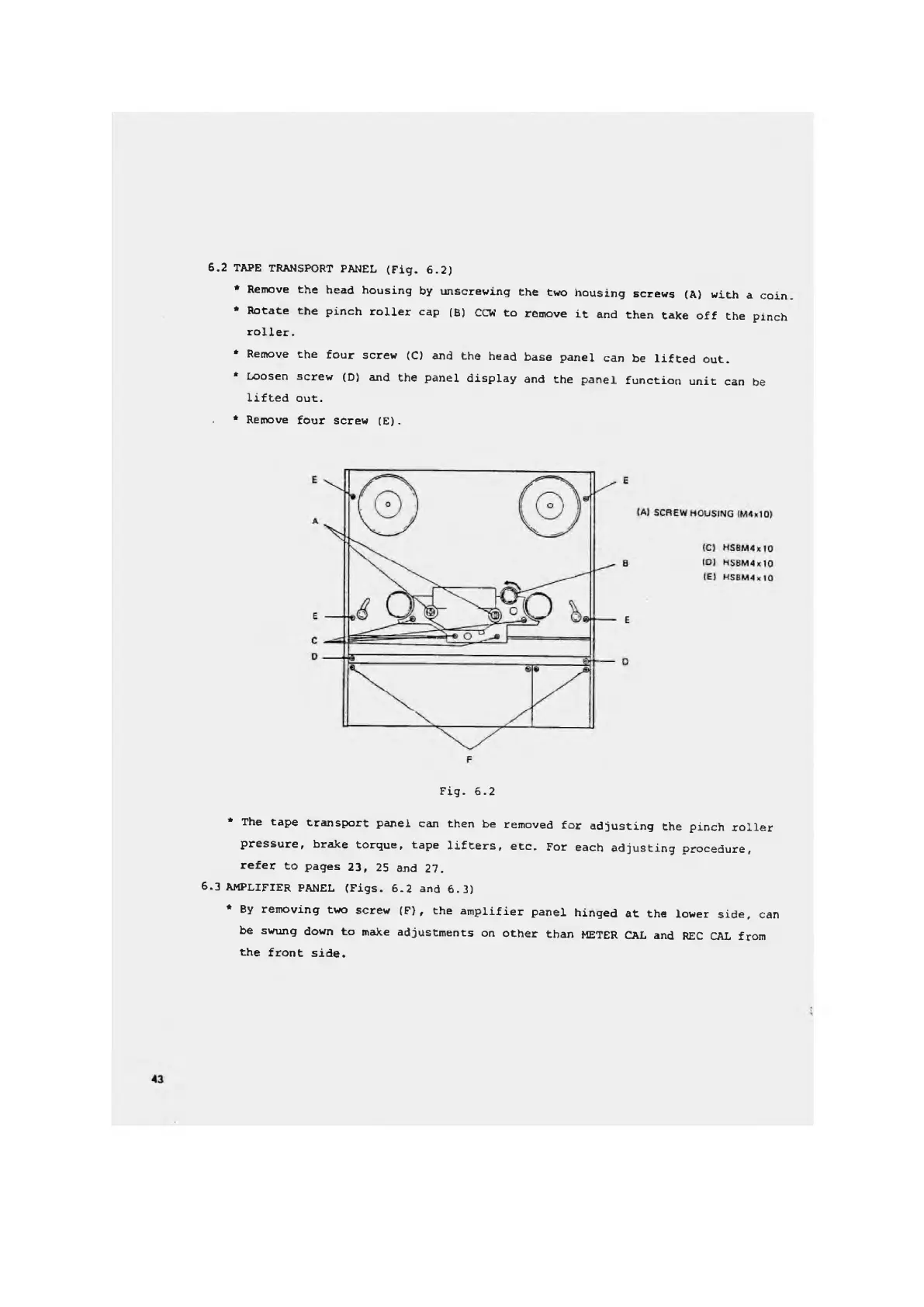

Fig. 6.2
* The tape transport panel can then be removed for adjusting the pinch roller
pressure, brake torque, tape lifters, etc. For each adjusting procedure,
refer to pages 23, 25 and 27.
6.3 AMPLIFIER PANEL (Figs. 6.2 and 6.3)
* By removing two screw (F) , the amplifier panel hinged at the lower side, can
be swung down to make adjustments on other than METER CAL and REC CAL from
the front side.
