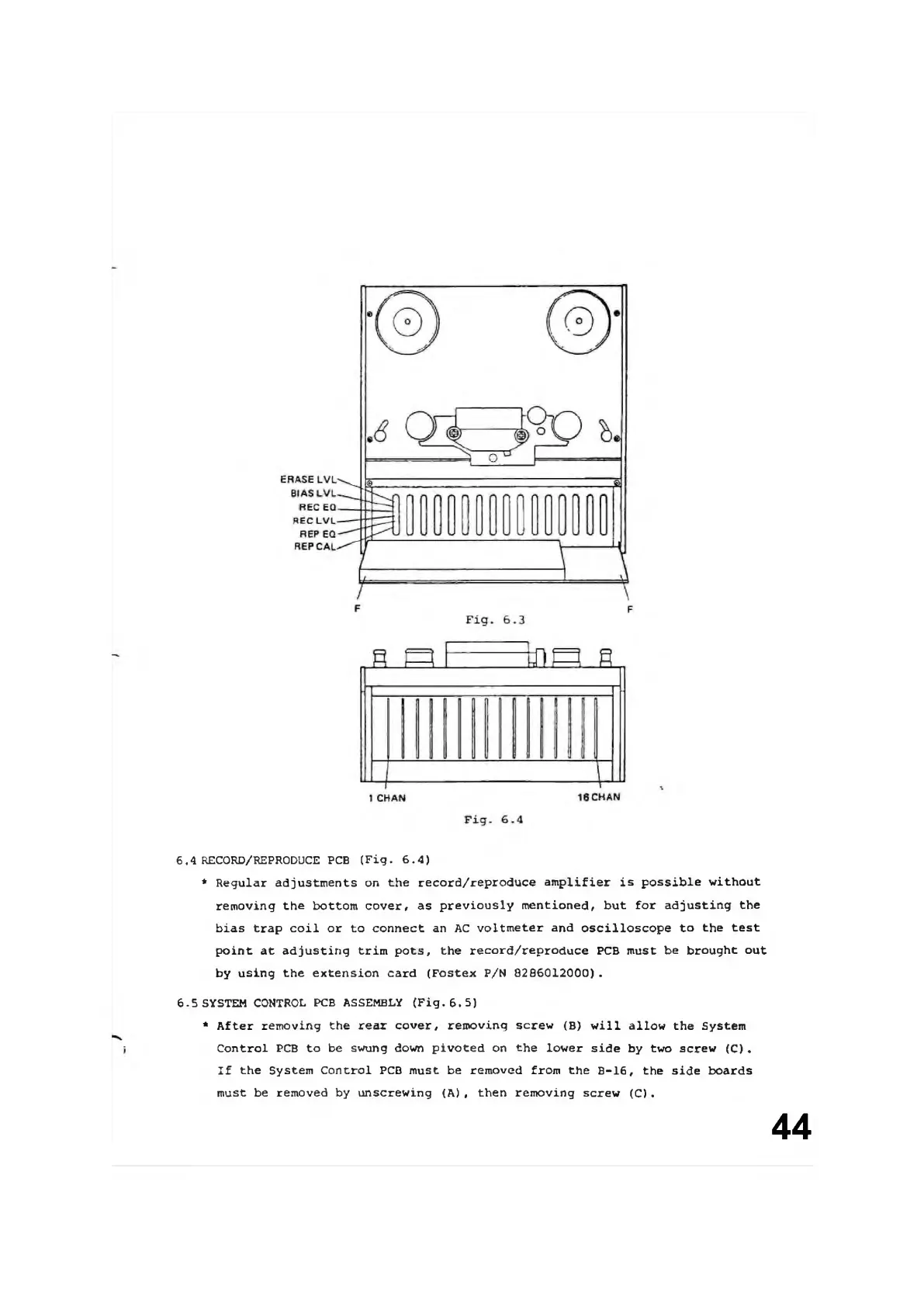

6.4 RECORD/REPRODUCE PCB (Fig. 6.4)
* Regular adjustments on the record/reproduce amplifier is possible without
removing the bottom cover, as previously mentioned, but for adjusting the
bias trap coil or to connect an AC voltmeter and oscilloscope to the test
point at adjusting trim pots, the record/reproduce PCB must be brought out
by using the extension card (Fostex P/N 8206012000).
6.5 SYSTEM CONTROL PCB ASSEMBLY (Fig. 6.5)
* After removing the rear cover, removing screw (B) will allow the System
Control PCB to be swung down pivoted on the lower side by two screw (C) .
If the System Control PCB must be removed from the B-16, the side boards
must be removed by unscrewing (A) , then removing screw (C) ■
