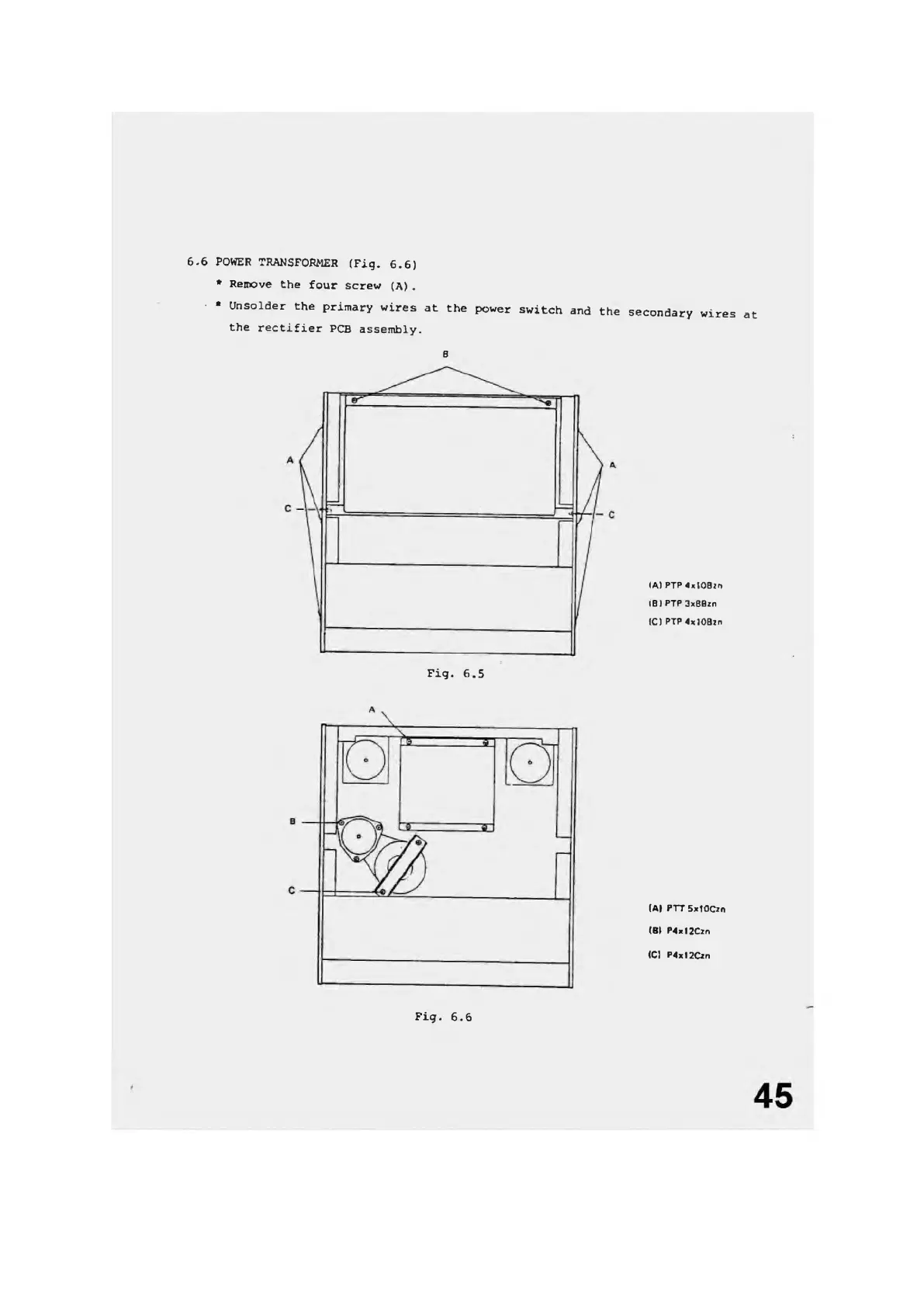

6.6 POWER TRANSFORMER (Fig. 6.6)
* Remove the four screw (A) .
■ * Unsolder the primary wires at the power switch and the secondary wires at
the rectifier PCB assembly.
0
(A) PTP 4xlOBjr>
IB1 PTP 3x8Bzn
IC) PTP 4x)OBzn
(A) PTT 5xtOCzn
(B) P4xl2Czn
<C> P4xl2Czn
Fig. 6.5
Fig. 6.6
