THRUST 0.1-0.5

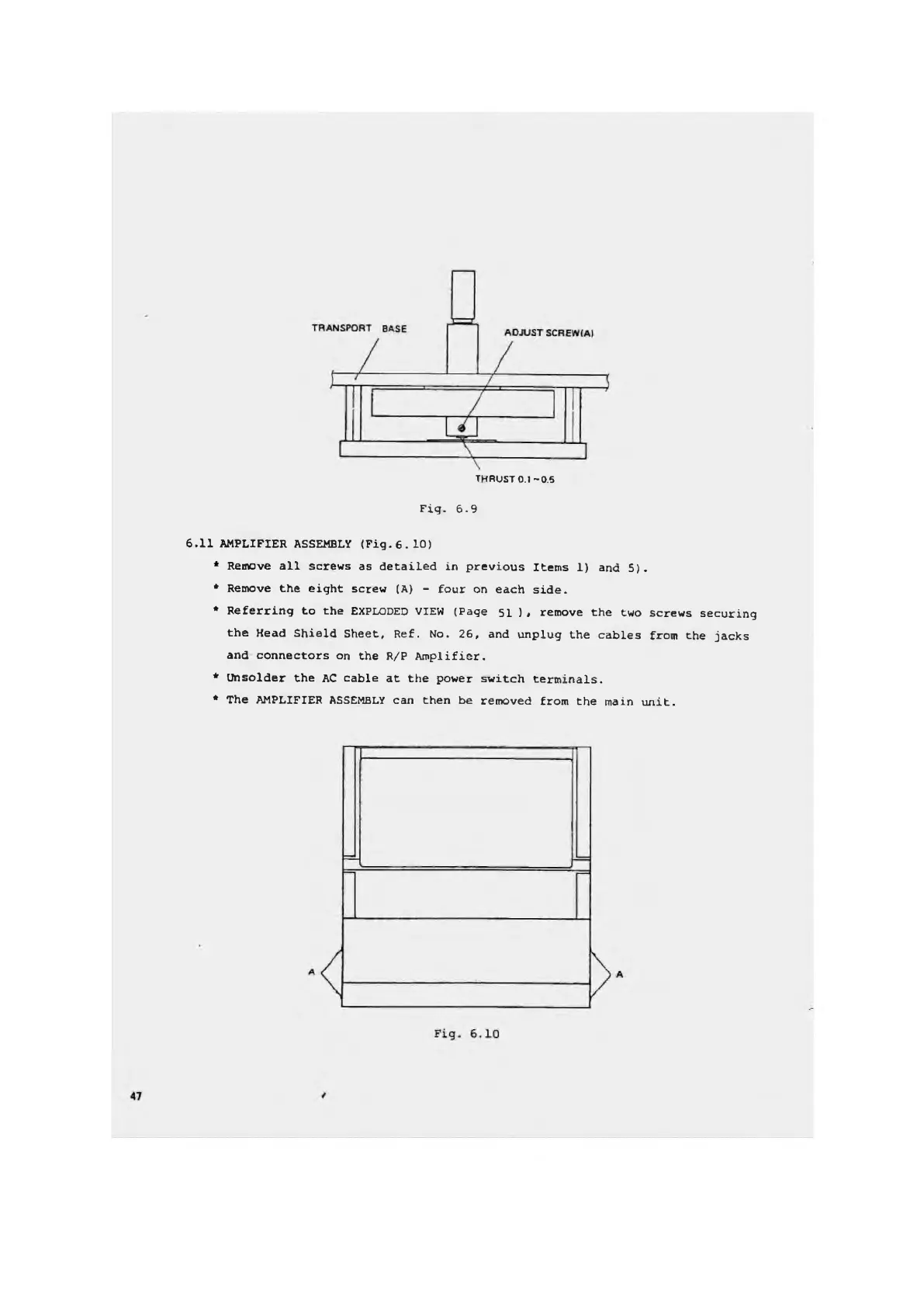

Fig. 6.9
6.11 AMPLIFIER ASSEMBLY (Fig. 6.10)
* Remove all screws as detailed in previous Items 1) and 5).
* Remove the eight screw (A) - four on each side.
* Referring to the EXPLODED VIEW (Page 51 )* remove the two screws securing
the Head Shield Sheet, Ref. No. 26, and unplug the cables from the jacks
and connectors on the R/P Amplifier.
* Unsolder the AC cable at the power switch terminals.
* The AMPLIFIER ASSEMBLY can then be removed from the main unit.
