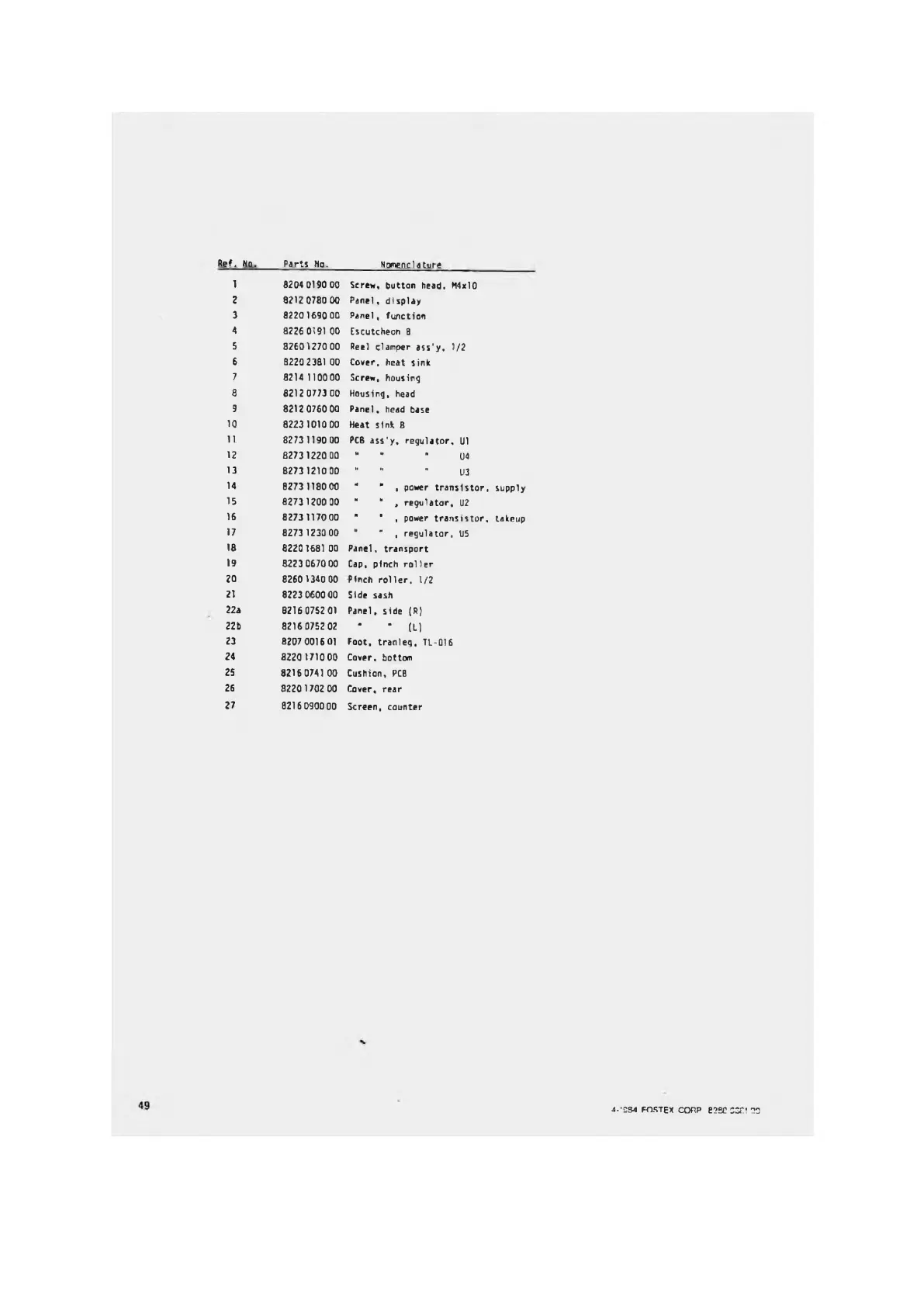

Fostex B-16 - Page 52

Ref, No. Parts Mo.Nomenclature
1 8204 0190 00
Screw, button head, M4x10
2
8212 0780 00
Panel , di splay
3
8220 1690 00
Panel, function
4
8226 0191 00
Escutcheon a
5
82601270 00
Reel clamper ass'y, T/2
6
8220 2381 00
Cover, heat Sink
7 8214 110000
Screw, housing
8
8212 0773 00
Housing, head
9
8212 0760 00
Panel, head base
10 8223 1 010 00
Heat sink B
11.
8273 1190 00
PCB ass'y, regulator, UI
12
8273 1220 00 * * ’ U4
13
8273 1210 00 " " " U3
14
8273 1180 00
* * , power transistor,
supply
15
8273 1200 00 " " * regulator* U2
15
82731170 00
" ■ , power transistor,
takeup
17
8273 1230 00
* “ , regulator, U5
18
8220 1681 00 Panel, transport
19
8223 0670 00 Cap, pinch roller
20
8260 1340 00 Pinch roller, 1/2
21
8223 0600 00 Side sash
224
8216 0752 01 Pane!, side (R)
22b
8216 0752 02
’ * (L)
23
8207 0016 01
Foot, tranleg, TL-016
24
8220 1710 00
Cover, bottom
25
8216 0741 00 Cushion, PCB
26
8220 1 702 00 Cover, rear
27
8216 0900 00
Screen, counter
