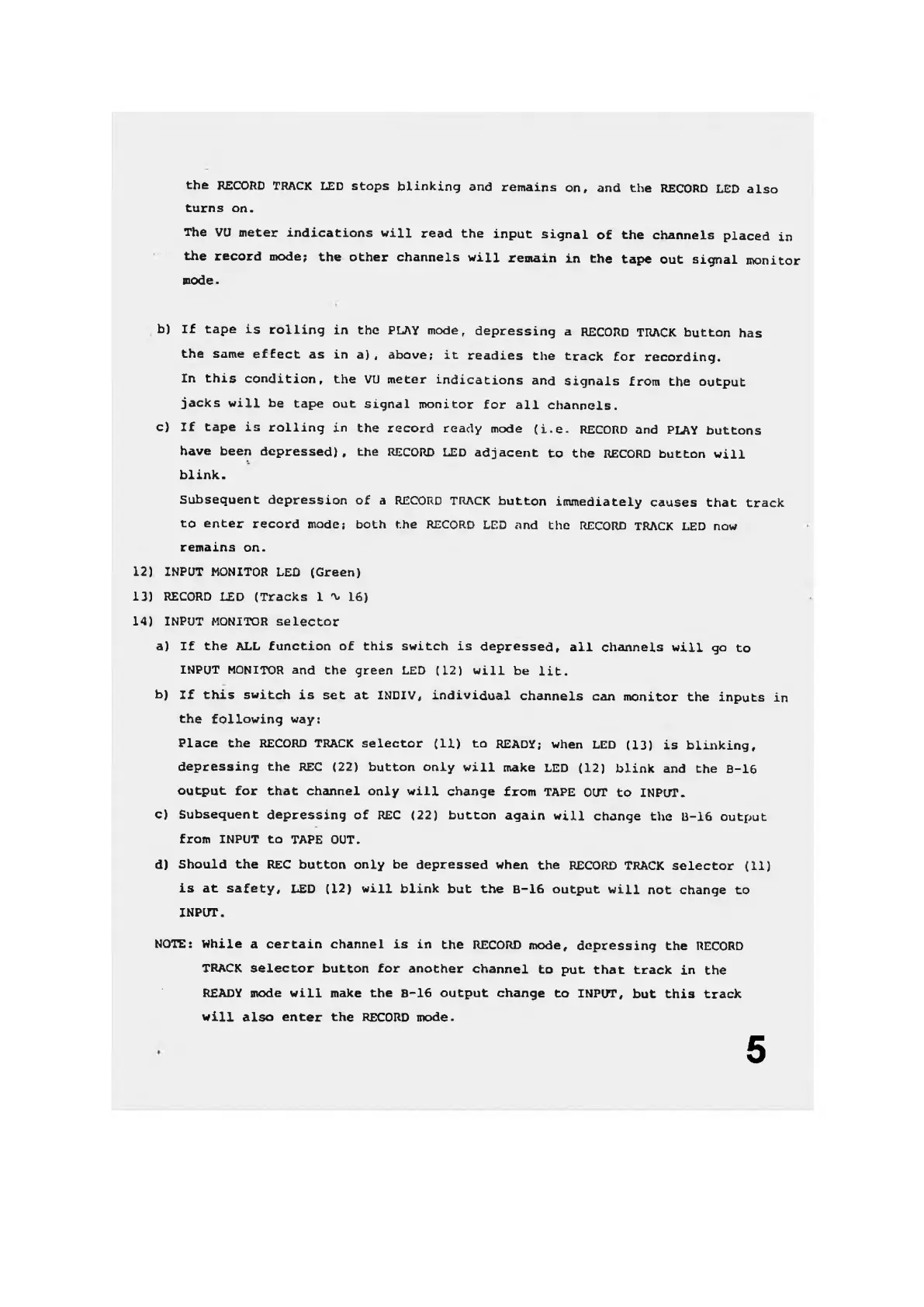

the RECORD TRACK LED stops blinking and remains on, and the RECORD LED also
turns on.
The VU meter indications will read the input signal of the channels placed in
the record mode; the other channels will remain in the tape out signal monitor
mode.
b) If tape is rolling in the PLAY mode, depressing a RECORD TRACK button has
the same effect as in a) , above; it readies the track for recording.
In this condition, the VU meter indications and signals from the output
jacks will be tape out signal monitor for all channels.
c) If tape is rolling in the record ready mode (i.e. RECORD and PLAY buttons
have been depressed), the RECORD LED adjacent to the RECORD button will
blink.
Subsequent depression of a RECORD TRACK button immediately causes that track
to enter record mode; both the RECORD LED and the RECORD TRACK LED now
remains on.
12) INPUT MONITOR LED (Green)
13) RECORD LED (Tracks 1 % 16)
14) INPUT MONITOR selector
a) If the ALL function of this switch is depressed, all channels will go to
INPUT MONITOR and the green LED (12) will be lit.
b) If this switch is set at INDIV, individual channels can monitor the inputs in
the following way:
Place the RECORD TRACK selector (11) to READY; when LED (13) is blinking,
depressing the REC (22) button only will make LED (12) blink and the B-16
output for that channel only will change from TAPE OUT to INPUT.
c) Subsequent depressing of REC (22) button again will change the B-16 output
from INPUT to TAPE OUT.
d) Should the REC button only be depressed when the RECORD TRACK selector (11)
is at safety, LED (12) will blink but the B-16 output will not change to
INPUT.
NOTE: While a certain channel is in the RECORD mode, depressing the RECORD
TRACK selector button for another channel to put that track in the
' READY mode will make the B-16 output change to INPUT, but this track
will also enter the RECORD mode.
