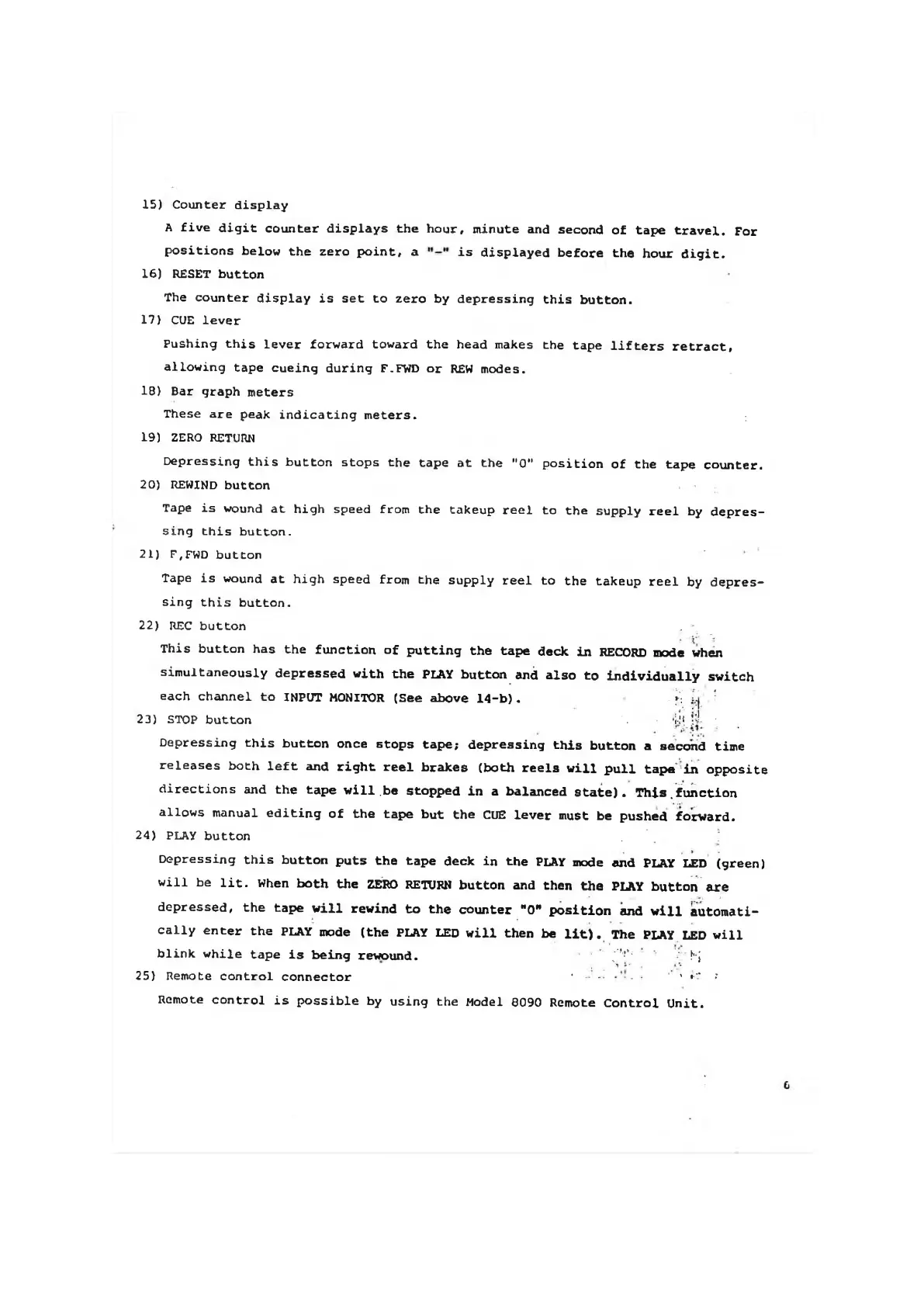

15) Counter display
A five digit counter displays the hour, minute and second of tape travel. For
positions below the zero point, a is displayed before the hour digit.
16) RESET button
The counter display is set to zero by depressing this button.
17) CUE lever
Pushing this lever forward toward the head makes the tape lifters retract,
allowing tape cueing during F.FWD or REW modes.
18) Bar graph meters
These are peak indicating meters. ;
19) ZERO RETURN
Depressing this button stops the tape at the ” 0" position of the tape counter.
20) REWIND button ,
Tape is wound at high speed from the takeup reel to the supply reel by depres 
sing this button.
21) F,FWD button
Tape is wound at high speed from the supply reel to the takeup reel by depres 
sing this button.
22) REC button .
This button has the function of putting the tape deck in RECORD mode when
simultaneously depressed with the PLAY button and also to individually switch
each channel to INPUT MONITOR (See above 14-b) . - £ ’
23) STOP button ' . '7 ■
Depressing this button once stops tape; depressing this button a second time
releases both left and right reel brakes (both reels will pull tape in opposite
directions and the tape will.be stopped in a balanced state). This.function
allows manual editing of the tape but the CUE lever must be pushed forward.
24) PLAY button .
Depressing this button puts the tape deck in the PLAY mode and PLAY LED (green)
will be lit. when both the ZERO RETURN button and then the PLAY button are
depressed, the tape will rewind to the counter "0" position and will automati 
cally enter the PLAY mode (the PLAY LED will then be lit) . The PLAY LED will
blink while tape is being rewound. ; V' ' (■;
25) Remote control connector ' - ’ »" :
Remote control is possible by using the Model 8090 Remote Control Unit.
