6) NOISE REDUCTION INT/EXT selector J
The Dolby C noise reduction circuit contained in the B-16 is switched in by
setting this switch to INT. If this switch is set to EXT, this internal noise
reduction circuit is bypassed and an external NR system can then be connected.
7 J INPUT jack
8) OUTPUT jack
9) Meter
The LED bar graph meter on the front panel can be lifted out and installed at
another location such as a mixing console or video switcher. In choosing this
method, the optional Model 9082 cable must be used.
0) AC cord
1) REMOTE PUNCH IN/OUT jack
Remote PUNCH 1N/PUNCH OUT is accomplished by using the Model 8050 Foot Switch.

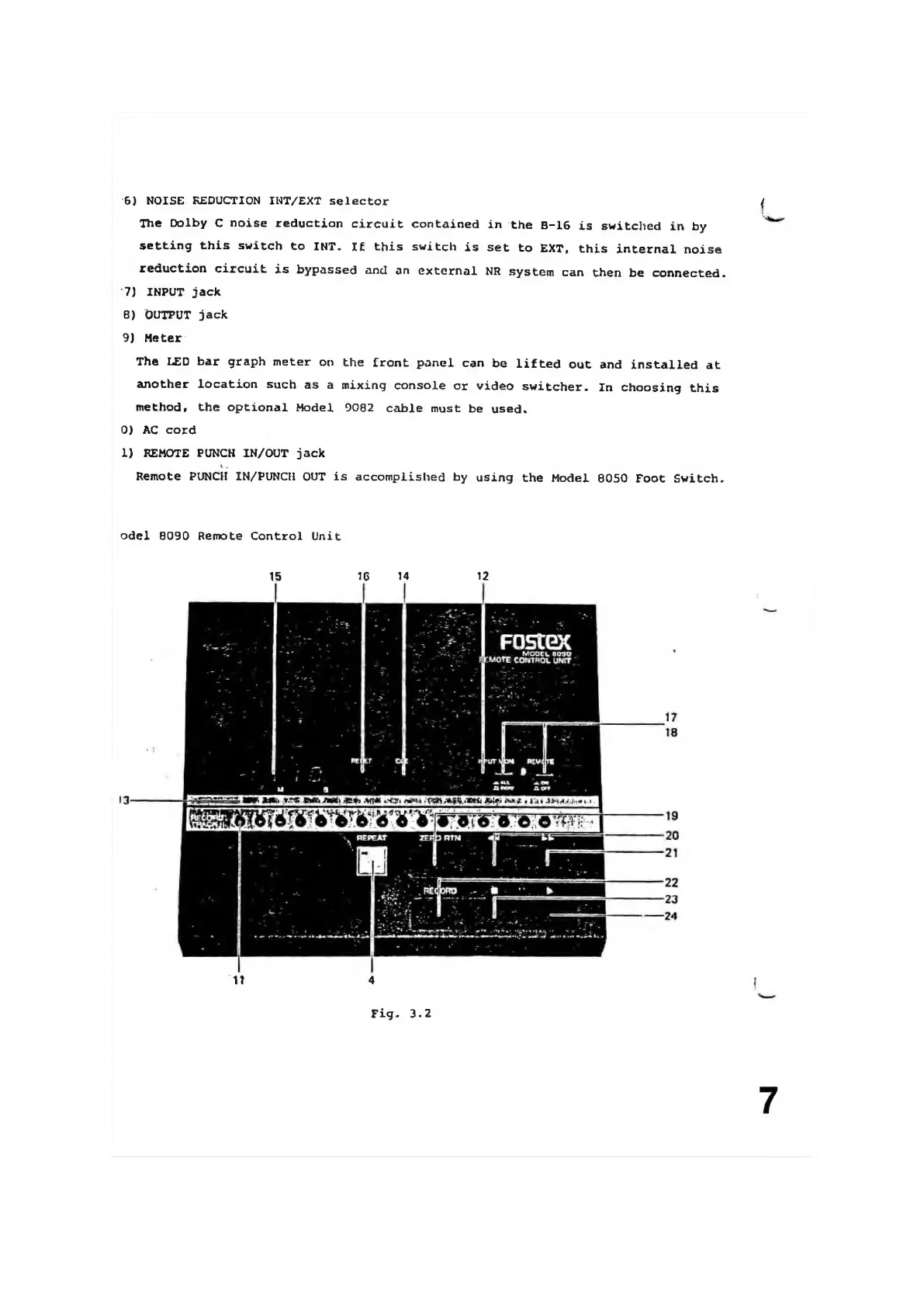

odel 8090 Remote Control Unit
15 16 14 12
11 4
Fig. 3.2
