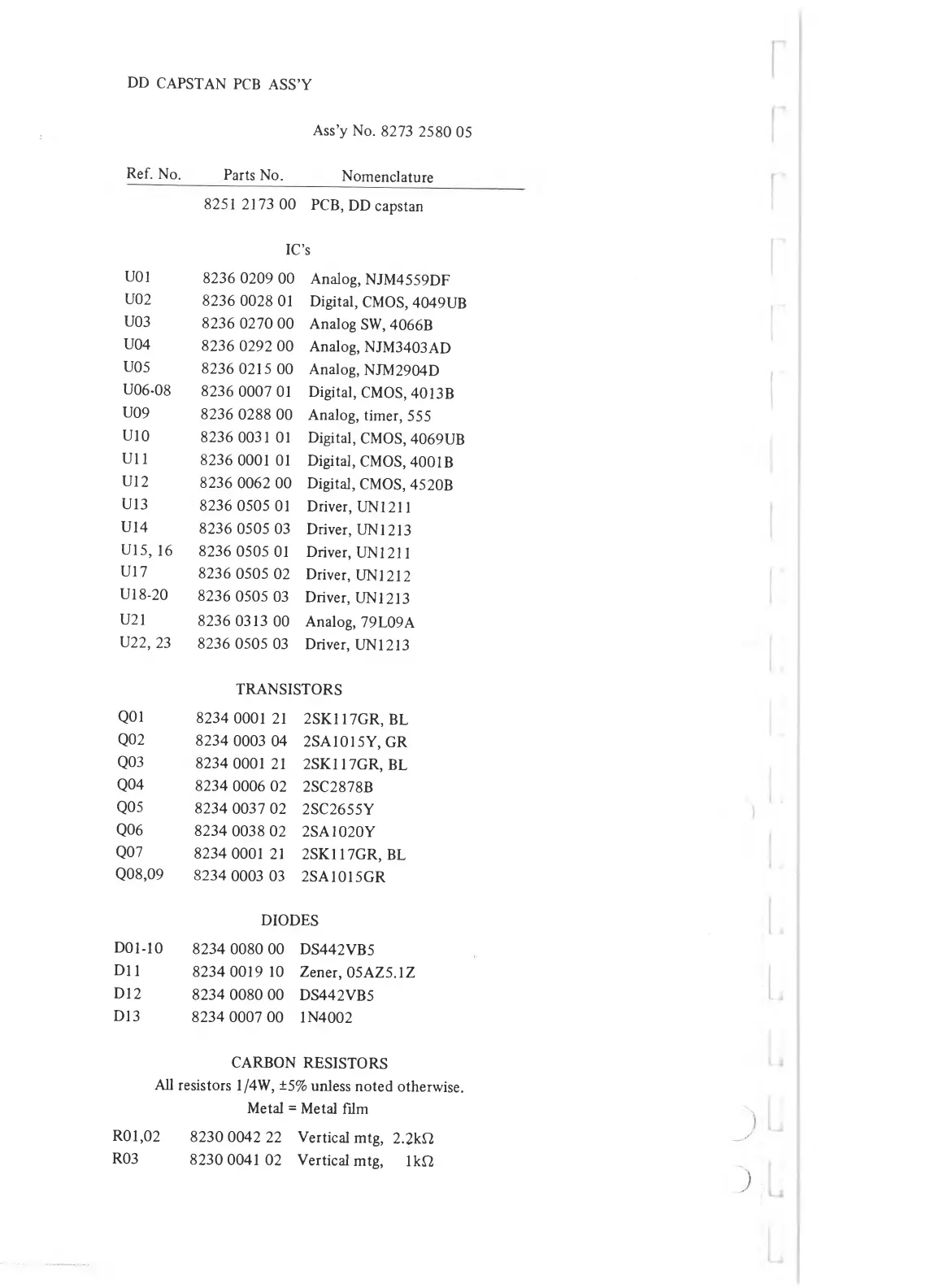

DD CAPSTAN PCB ASS ’ Y
Ass ’ y No. 8273 2580 05
Ref. No.Parts No.Nomenclature
8251 2173 00 PCB, DD capstan
IC ’ s
TRANSISTORS
U01
8236 0209 00
Analog, NJM4559DF
U02
8236 0028 01
Digital, CMOS, 4049UB
U03
8236 0270 00
Analog SW, 4066B
U04
8236 0292 00
Analog, NJM3403AD
U05
8236 0215 00
Analog, NJM2904D
U06-08
8236 0007 01
Digital, CMOS, 4013B
U09
8236 0288 00
Analog, timer, 555
U10
8236 0031 01
Digital, CMOS, 4069UB
Ull
8236 0001 01
Digital, CMOS, 400 IB
UI 2
8236 0062 00
Digital, CMOS, 4520B
U13
8236 0505 01
Driver, UNI 211
U14
8236 0505 03
Driver, UNI 213
U15, 16
8236 0505 01
Driver, UNI 211
U17
8236 0505 02
Driver, UNI 212
UI 8-20
8236 0505 03
Driver, UNI 213
U21
8236 0313 00
Analog, 79L09A
U22, 23
8236 0505 03
Driver, UNI 213
DIODES
Q01
8234 0001 21
2SK117GR, BL
Q02
8234 0003 04
2SA1015Y, GR
Q03
8234 0001 21
2SK1 1 7GR, BL
Q04
8234 0006 02
2SC2878B
Q05
8234 0037 02
2SC2655Y
Q06
8234 0038 02
2SA1020Y
Q07
8234 0001 21
2SK117GR, BL
Q08,09
8234 0003 03
2SA1015GR
DOMO 8234 0080 00 DS442VB5
Dll
8234 0019 10
Zener, 05AZ5.1Z
D12
8234 0080 00
DS442VB5
D13
8234 0007 00
1N4002
CARBON RESISTORS
All resistors 1/4W, ±5% unless noted otherwise.
Metal = Metal film
R01,02 8230 0042 22 Vertical mtg, 2.2ki2
R03 8230 0041 02 Vertical mtg, lkf2
