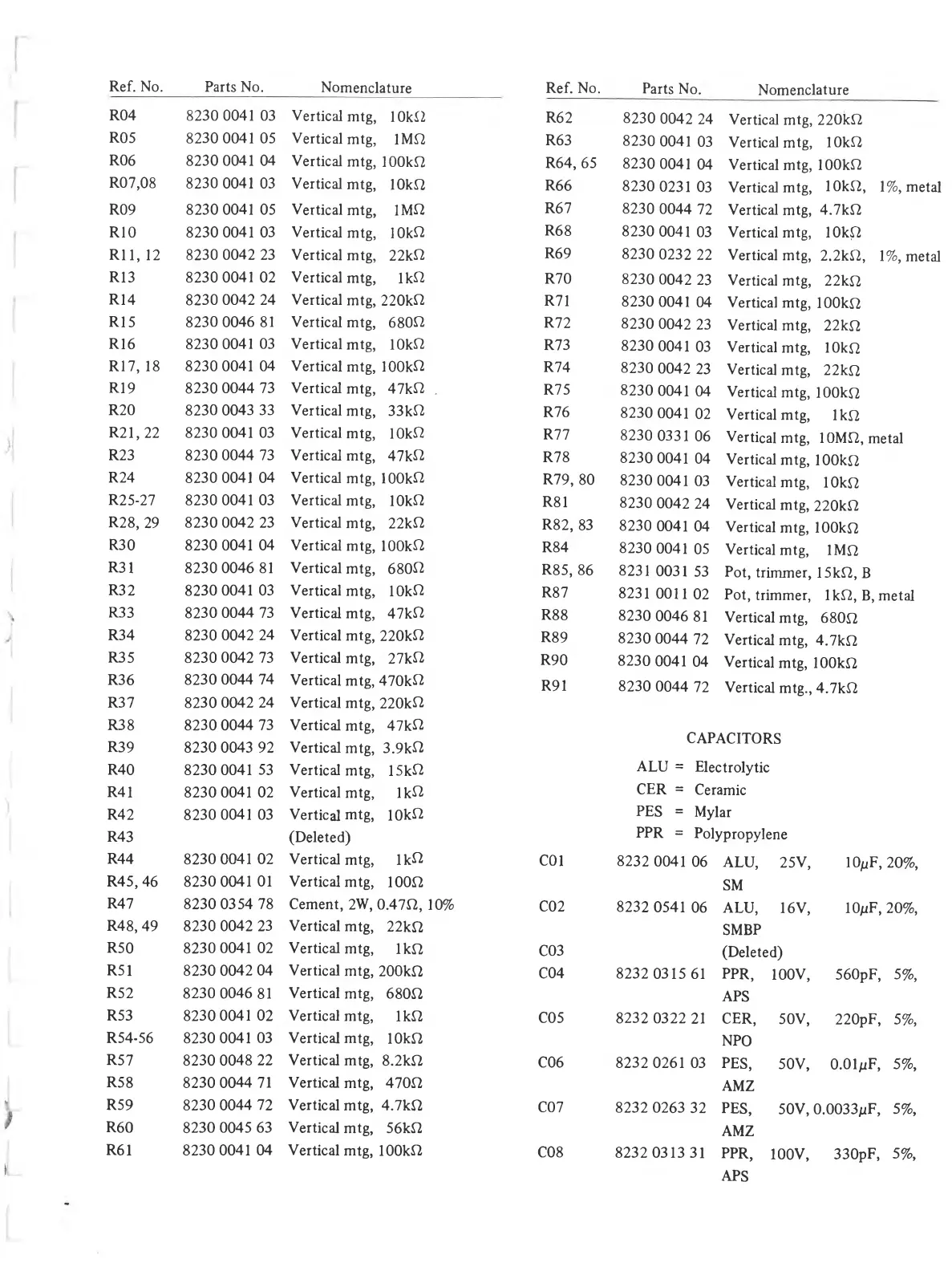

Fostex G16 - Page 104

Ref. No.
Parts No.
Nomenclature
R04
8230 0041 03
Vertical mtg, 10k(2
R05
8230 0041 05
Vertical mtg, 1M(2
R06 8230 0041 04
Vertical mtg, 100k(2
R07,08 8230 0041 03
Vertical mtg, 10k(2
R09
8230 0041 05
Vertical mtg, 1MU
RIO 8230 0041 03
Vertical mtg, 10k%
Rll, 12
8230 0042 23
Vertical mtg, 22k(2
R13
8230 0041 02
Vertical mtg, lk(2
R14 8230 0042 24
Vertical mtg, 220k(2
R15
8230 0046 81
Vertical mtg, 680(2
R16
8230 0041 03
Vertical mtg, lOkil
R17, 18 8230 0041 04
Vertical mtg, lOOkil
RI 9
8230 0044 73
Vertical mtg, 47kU .
R20 8230 0043 33
Vertical mtg, 33kf2
R21,22
8230 0041 03
Vertical mtg, 1 0k(2
R23 8230 0044 73
Vertical mtg, 47kS2
R24 8230 0041 04
Vertical mtg, lOOkU
R25-27 8230 0041 03
Vertical mtg, 10k(2
R28, 29 8230 0042 23
Vertical mtg, 22k(2
R30
8230 0041 04
Vertical mtg, lOOkii
R31
8230 0046 81
Vertical mtg, 680(2
R32 8230 0041 03
Vertical mtg, 1 0k(2
R33 8230 0044 73
Vertical mtg, 47k(2
R34 8230 0042 24
Vertical mtg, 220k(2
R35 8230 0042 73 Vertical mtg, 27k(2
R36
8230 0044 74
Vertical mtg, 470k(2
R37
8230 0042 24 Vertical mtg, 220k(2
R38
8230 0044 73
Vertical mtg, 47k(2
R39 8230 0043 92 Vertical mtg, 3.9k(2
R40 8230 0041 53
Vertical mtg, 15k(2
R41
8230 0041 02
Vertical mtg, lk(2
R42
8230 0041 03
Vertical mtg, 10k(2
R43
(Deleted)
R44 8230 0041 02
Vertical mtg, lk(2
R45, 46 8230 0041 01
Vertical mtg, 100(2
R47
8230 0354 78
Cement, 2W, 0.47(2, 10%
R48, 49 8230 0042 23
Vertical mtg, 22k(2
R50
8230 0041 02
Vertical mtg, lk(2
R51 8230 0042 04
Vertical mtg, 2OOk(2
R52 8230 0046 81
Vertical mtg, 680(2
R53 8230 0041 02
Vertical mtg, lk(2
R54-56
8230 0041 03
Vertical mtg, 10k(2
R57
8230 0048 22
Vertical mtg, 8.2k(2
R58 8230 0044 71
Vertical mtg, 470(2
R59
8230 0044 72
Vertical mtg, 4.7k(2
R6O 8230 0045 63 Vertical mtg, 56k(2
R61
8230 0041 04
Vertical mtg, 100k(2
Ref. No.
Parts No.
Nomenclature
R62
8230 0042 24
Vertical mtg, 220k(2
R63
8230 0041 03
Vertical mtg, 10k(2
R64, 65
8230 0041 04
Vertical mtg, 100k(2
R66
8230 0231 03
Vertical mtg, 10k(2, 1%, metal
R67
8230 0044 72
Vertical mtg, 4.7k(2
R68
8230 0041 03
Vertical mtg, 10k(2
R69
8230 0232 22
Vertical mtg, 2.2k(2, 1%, metal
R70
8230 0042 23
Vertical mtg, 22k(2
R71
8230 0041 04
Vertical mtg, 100k(2
R72
8230 0042 23
Vertical mtg, 22k(2
R73
8230 0041 03
Vertical mtg, 10k(2
R74
8230 0042 23
Vertical mtg, 22k(2
R75
8230 0041 04
Vertical mtg, 100k(2
R76
8230 0041 02
Vertical mtg, 1 k(2
R77
8230 0331 06
Vertical mtg, 10M(2, metal
R78
8230 0041 04
Vertical mtg, 100k(2
R79, 80
8230 0041 03
Vertical mtg, 10k(2
R81
8230 0042 24
Vertical mtg, 220k(2
R82, 83
8230 0041 04
Vertical mtg, 100k(2
R84
8230 0041 05
Vertical mtg, 1M(2
R85, 86
8231 0031 53
Pot, trimmer, 15k(2, B
R87
8231 0011 02
Pot, trimmer, 1 k(2, B, metal
R88
8230 0046 81
Vertical mtg, 680(2
R89
8230 0044 72
Vertical mtg, 4.7k(2
R90
8230 0041 04
Vertical mtg, 100k(2
R91
8230 0044 72
Vertical mtg., 4.7k(2
CAPACITORS
ALU = Electrolytic
CER = Ceramic
PES = Mylar
PPR = Polypropylene
C01
8232 0041 06
ALU,
SM
25V,
lOpF, 20%,
C02
C03
8232 0541 06
ALU, 16 V,
SMBP
(Deleted)
lOpF, 20%,
C04
8232 0315 61
PPR,
APS
100 V, 560pF, 5%,
C05
8232 0322 21
CER,
NPO
50V, 220pF, 5%,
C06
8232 0261 03
PES,
AMZ
50V, 0.0 IpF, 5%,
C07
8232 0263 32
PES,
AMZ
50V, 0.0033pF, 5%,
C08
8232 0313 31
PPR,
APS
100 V,
330pF, 5%,
