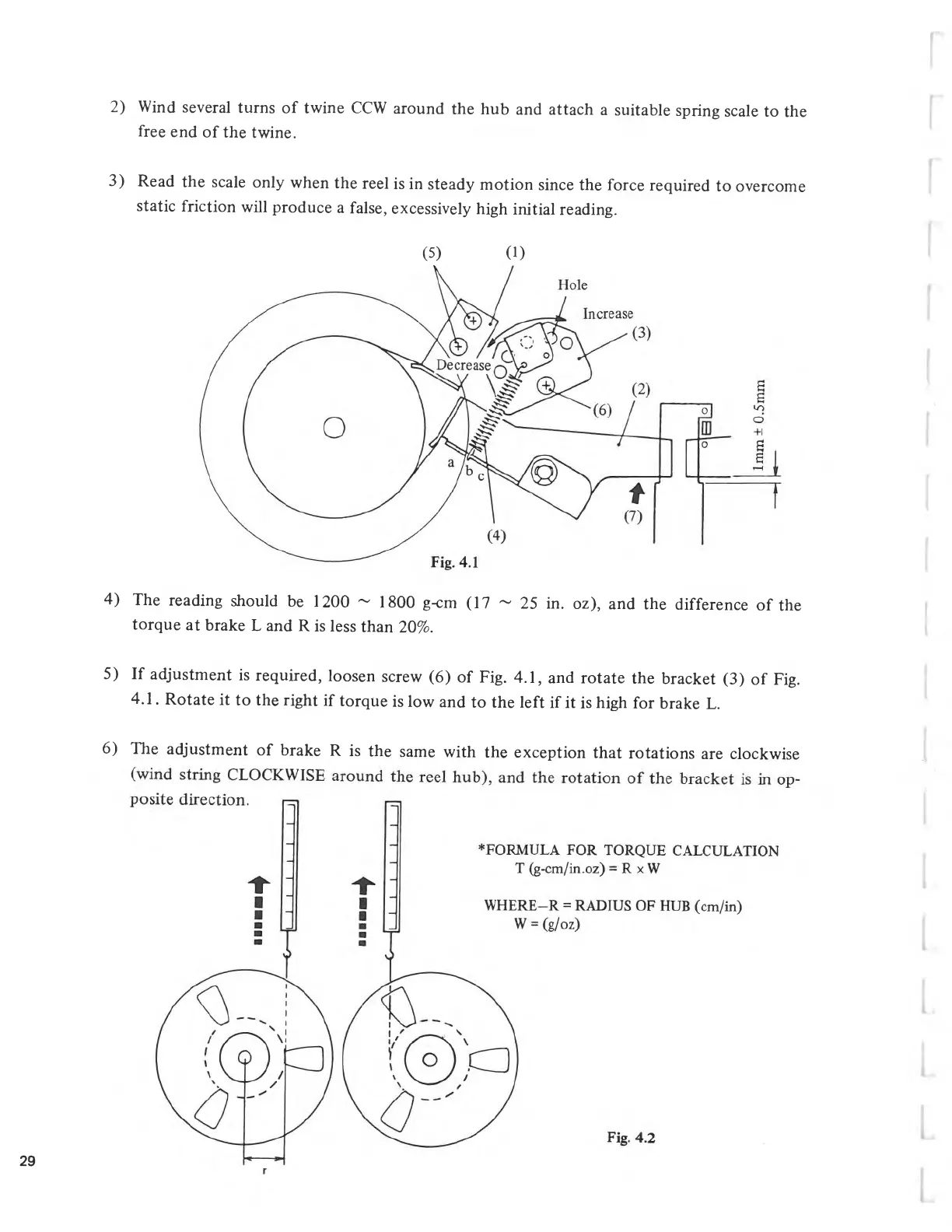

2)
Wind
several
turns
of
twine
CCW
around
the
hub
and
attach
a
suitable
spring
scale
to
the
free
end
of
the
twine.
3)
Read
the
scale
only
when
the
reel
is
in
steady
motion
since
the
force
required
to
overcome
static
friction
will
produce
a
false,
excessively
high
initial
reading.
(5)
(1)
4)
The
reading
should
be
1200
~
1800
g-cm
(17
~
25
in.
oz),
and
the
difference
of
the
torque
at
brake
L
and
R
is
less
than
20%.
5)
If
adjustment
is
required,
loosen
screw
(6)
of
Fig.
4.1,
and
rotate
the
bracket
(3)
of
Fig.
4.1.
Rotate
it
to
the
right
if
torque
is
low
and
to
the
left
if
it
is
high
for
brake
L.
6)
The
adjustment
of
brake
R
is
the
same
with
the
exception
that
rotations
are
clockwise
29
