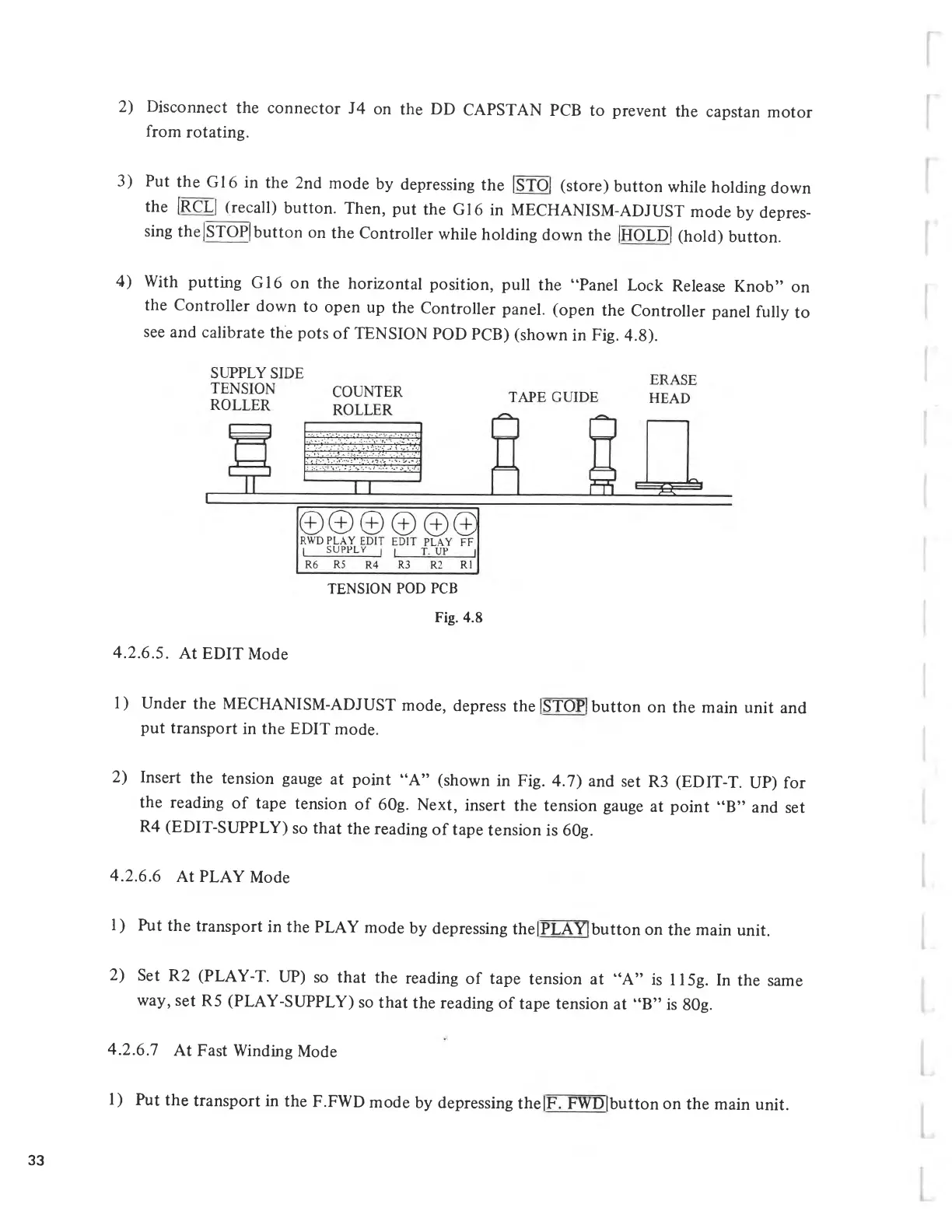

2)

Disconnect

the

connector

J4

on

the

DD

CAPSTAN

PCB

to

prevent

the

capstan

motor

from

rotating.

3)

Put

the

G

16

in

the

2nd

mode

by

depressing

the

|STO|

(store)

button

while

holding

down

the

(

RCL

|

(recall)

button.

Then,

put

the

G16

in

MECHANISM-ADJUST

mode

by

depres



sing

the|

STOP|

button

on

the

Controller

while

holding

down

the

|HOLD|

(hold)

button.

4)

With

putting

G16

on

the

horizontal

position,

pull

the

“

Panel

Lock

Release

Knob

”

on

the

Controller

down

to

open

up

the

Controller

panel,

(open

the

Controller

panel

fully

to

see

and

calibrate

the

pots

of

TENSION

POD

PCB)

(shown

in

Fig.

4.8).

TENSION

POD

PCB

Fig.

4.8

4.2.6.5

.

At

EDIT

Mode

1)

Under

the

MECHANISM-ADJUST

mode,

depress

the

|STOP|

button

on

the

main

unit

and

put

transport

in

the

EDIT

mode.

2)

Insert

the

tension

gauge

at

point

“

A

”

(shown

in

Fig.

4.7)

and

set

R3

(EDIT-T.

UP)

for

the

reading

of

tape

tension

of

60g.

Next,

insert

the

tension

gauge

at

point

“

B

”

and

set

R4

(EDIT-SUPPLY)

so

that

the

reading

of

tape

tension

is

60g.

4.2.6.6

At

PLAY

Mode

1)

Put

the

transport

in

the

PLAY

mode

by

depressing

the

|PLAY|

button

on

the

main

unit.

2)

Set

R2

(PLAY-T.

UP)

so

that

the

reading

of

tape

tension

at

“

A

”

is

115g.

In

the

same

way,

set

R5

(PLAY-SUPPLY)

so

that

the

reading

of

tape

tension

at

“

B

”

is

80g.

4.2.6.7

At

Fast

Winding

Mode

1)

Put

the

transport

in

the

F.FWD

mode

by

depressing

the

|F.

FWD|

button

on

the

main

unit.

33
