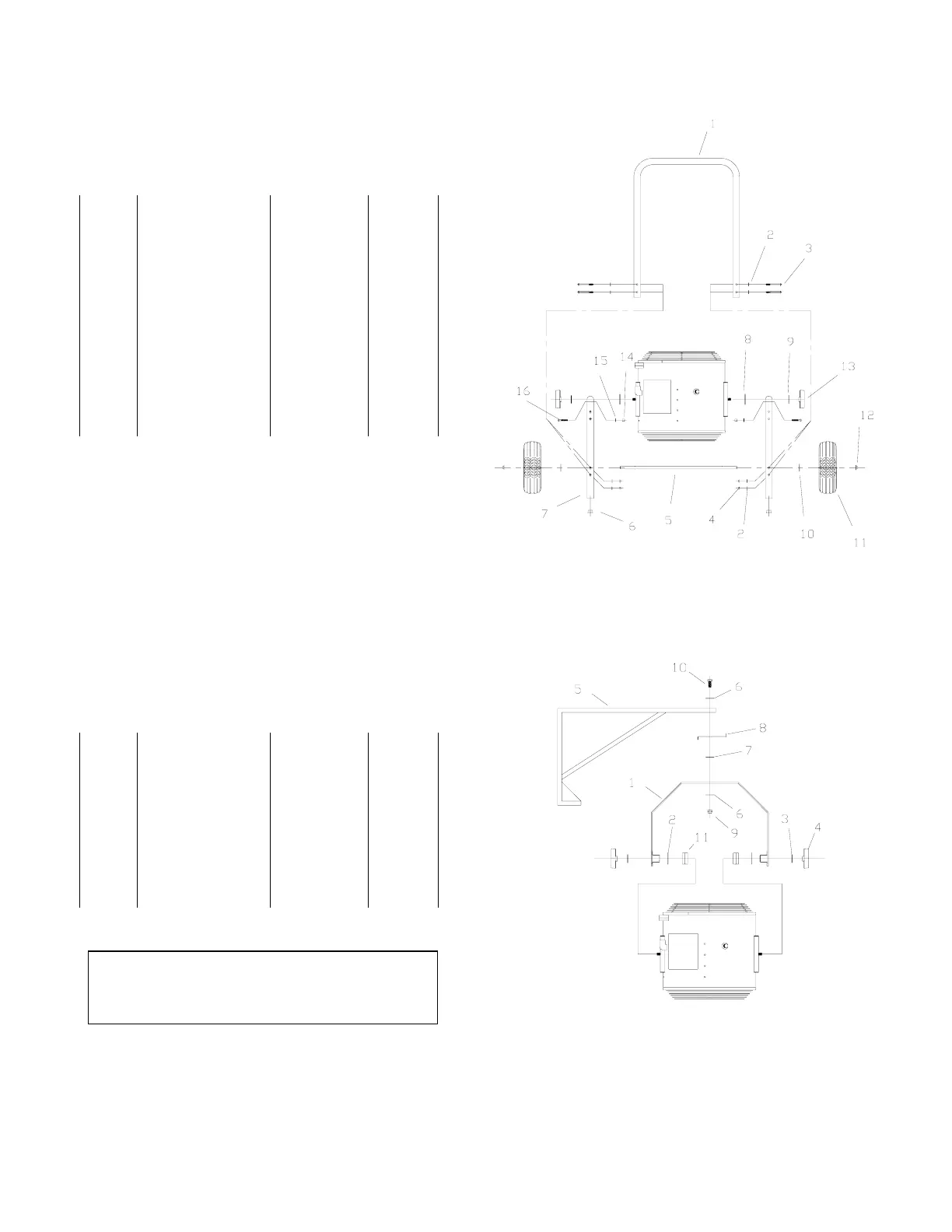

“FES” REPLACEMENT PARTS LIST & EXPLODED VIEW
Ref No. Description Part No. Qty.
1 Handle 8480021 1
2 Washer flat ¼ 3442532 8
3 Screw ¼-20 x 2-3/4 2470032 4
4 Nut stop ¼-20
“YES” REPLACEMENT PARTS LIST & EXPLODED VIEW
3440132 4
5 Axle 8480232 1
6 Cap plug 3409200 2
7 Leg 8480121 2
8 Washer rubber 2480200 2
9 Spacer 8480500 2
10 Washer flat ½ 3460156 2
11 Wheel 8480300 2
12 Push nut 8045700 2
13 Bar Knob 2470200 2
14 Spacer 2471932 2
15 Washer lock ¼ 3427900 2
16 Screw ¼-20 x 1-3/4 2471832 2
Ref No. Description Part No. Qty.
1 Yoke 8484023 1
2 Washer rubber 2480200 2
3 Spacer 8480500 2
4 Bar knob 2470200 2
5 Mounting bracket 57074002 1
6 Washer fender 3472232 2
7 Washer nylon 3443700 1
8 Rotating stop 8483923 1
9 Nut stop ½-13 3446432 1
10 Screw ½-13 x 1-1/2 2480132 1
11 Rotating Stop – Side 8484423 2
To convert an FES unit to a YES unit
order the Fostoria kit Model WMK-FES
p/n 04804102.
