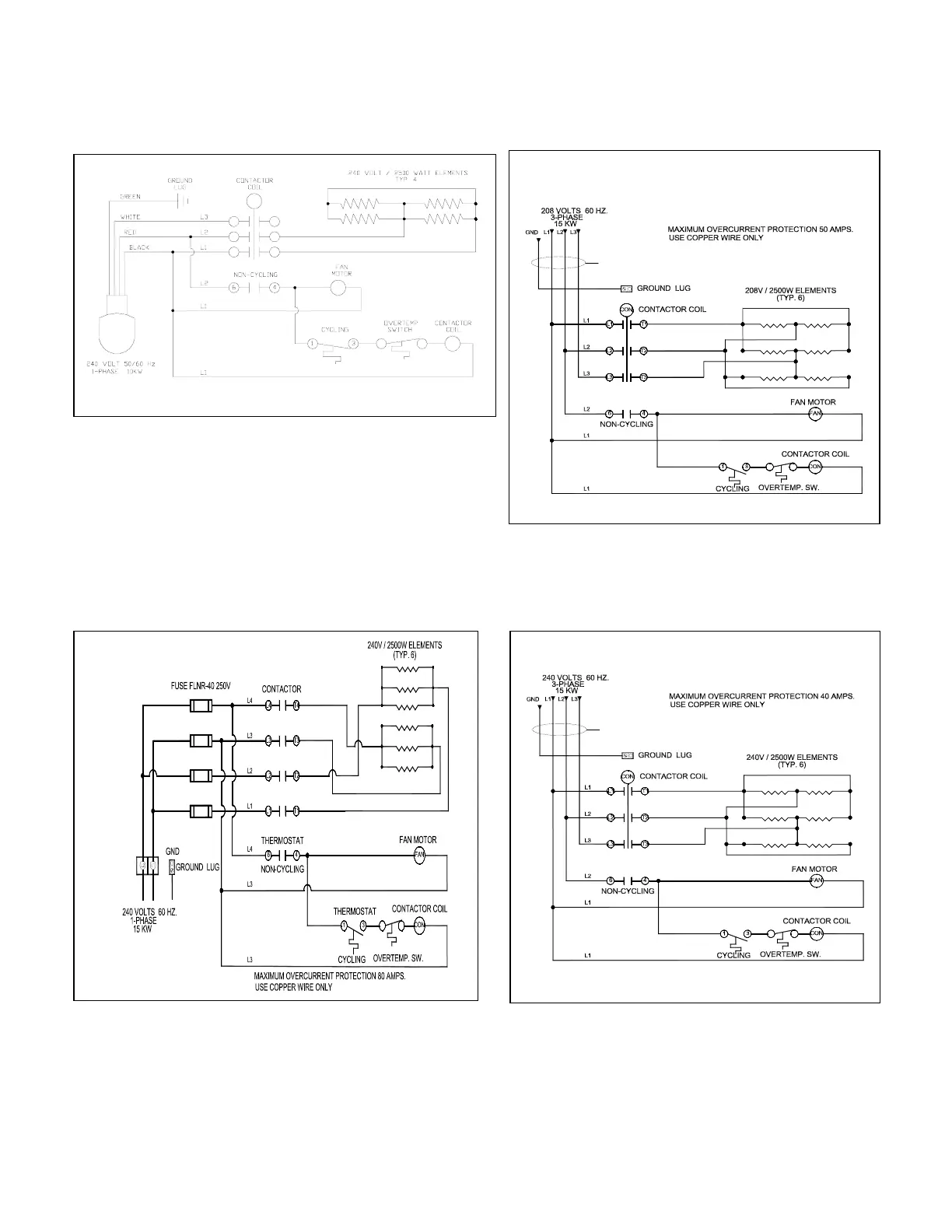

FES & YES WIRING DIAGRAMS
1024-1CA 1520-3A
1524-3E
CORD KIT 6/4 (NOT PROVIDED),
REFER TO INSTALLATION
CHART ON PAGE 2 FOR
FOSTORIA PART NO.
CORD KIT 6/4 (NOT PROVIDED),
REFER TO INSTALLATION
CHART ON PAGE 2 FOR
FOSTORIA PART NO.
1524-1A
TERMINAL
BLOCK
Issue Date: 4-19-02 Rev. Date: 12-12-03 Rev. Level: 07 OIPM P/N 3420458 Page 6 of 7
