power PVB-10 PVB-30 PVB-80
200 W 18 °C / h 6 °C / h 2 °C / h
400 W 36 °C / h 12 °C / h 4.5 °C / h
550 W 50 °C / h 16 °C / h 6 °C / h
Heating time of the water depending on the heating power
Note
The values given in the table are intended as a gui-
deline. The heating times depend on many factors
(power, ambient air temperature, water withdrawal)
ted photovoltaic power, the more the water can be
heated on days with low solar radiation. The water
is heated with a maximum power of 550 W, even if
more photovoltaic power is available.
8
3
1
2
5
6*
4
7

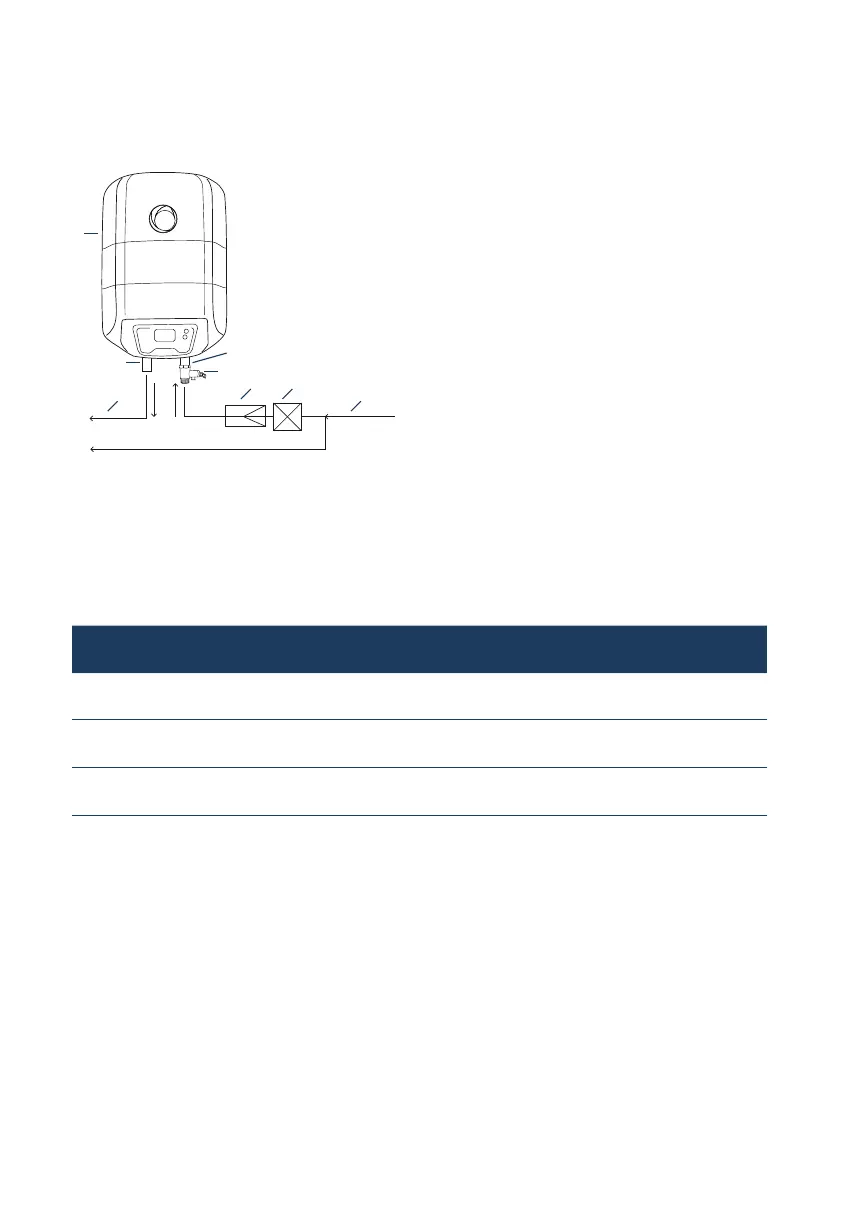

1 hot water tank
2 water inlet
3 water outlet
4
5
combined check and
pressure relief valve
6 pressure reducing
valve*
7 cold water
8 hot water
*not included
* necessary if water pressure
> 0.5 MPa (5 bar)
