FOTILE EMS9026 - Installation Guide; Packing List

12
FOTILE
Installation

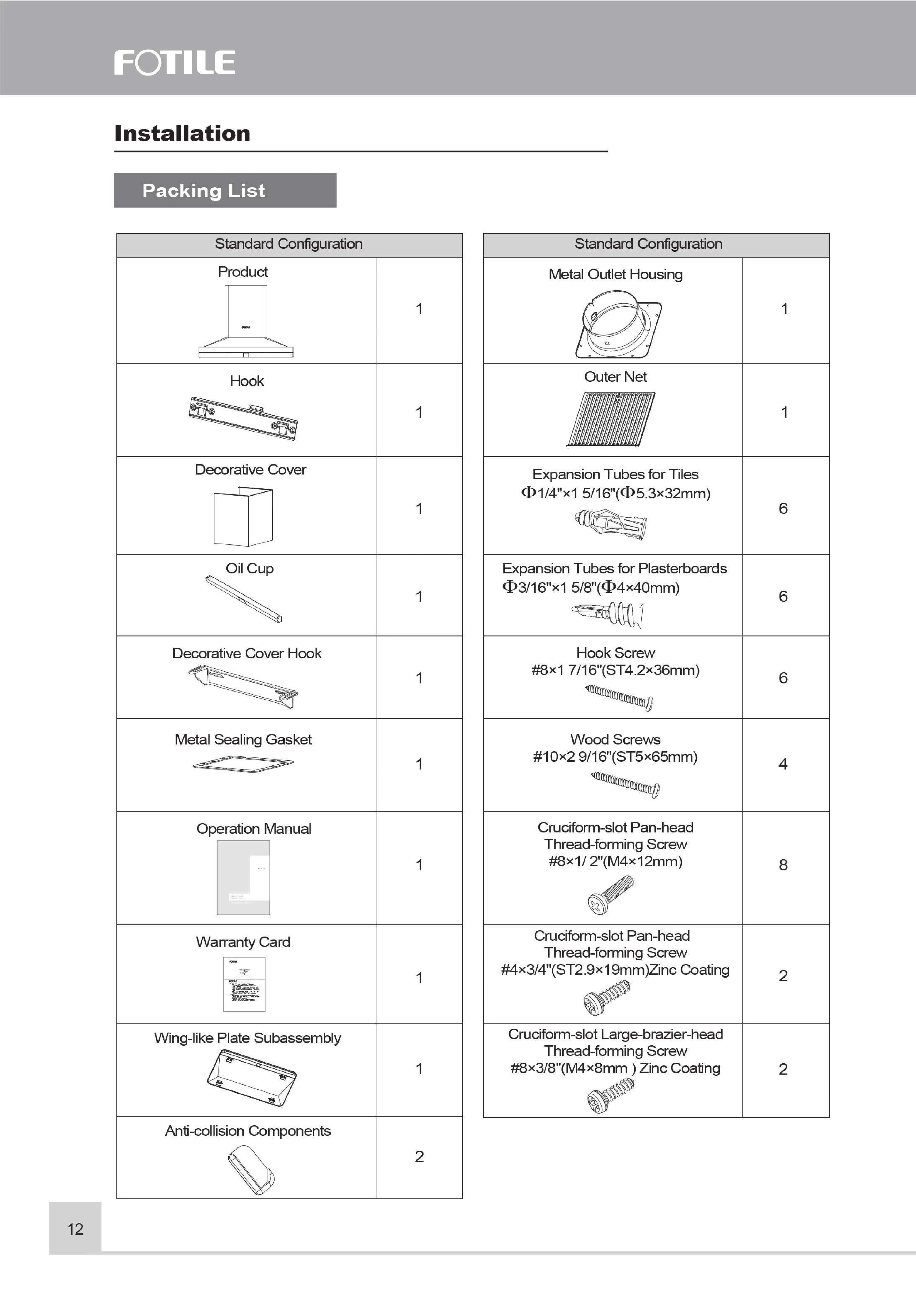

Packing List
Standard
Configuration
Standard
Configuration
Product
Metal
Outlet
Housing
/’
Expansion Tubes for Plasterboards
d3/16"x1 5/8"(D4x40mm)
==
Decorative Cover Hook
=
—
Hook Screw
#8x1 7/16"(ST4.2x36mm)
gy
—
e
Metal Sealing Gasket Wood Screws
#10x2 9/16"(ST5*x65mm)
gy
Cruciform-slot Pan-head
Thread-forming Screw
#8x1/ 2"(M4x12mm)
Cruciform-slot Pan-head
Thread-forming Screw
Wing-like Plate Subassembly
—
Anti-collision Components
Cruciform-slot Large-brazier-head
Thread-forming Screw
#3x3/8"(M4x8mm ) Zinc Coating
<)
RANGE HOOD
Installation Guidance
To ensure the safe and efficient use of your FOTILE product, please note the highlighted infor-
mation in the product manual as follows:
* Warning: Indicating a risk of serious bodily injury or death if precautions are not observed.
* Notice: Indicating possible minor personal injury or product damage if instructions are not
followed.
* Important: Emphasizing information of critical importance.
PN Safety Instructions
Please be sure to read these safety
instructions before using the product.
Please be sure to properly
keep these safety instructions.
This product is for indoor use only.
Warning A A
@® In order to reduce the risk of fire, electric shock, or injury to persons, please carefully read
the following:
M The installation and wiring of the appliance should only be carried out by a professional
electrician in accordance with current national or local electric safety regulations, includ-
Ing fire-rated construction. Non-professional personnel should not conduct installation.
Proper installation is the responsibility of the installer. Product failure due to improper
installation is not covered under the FOTILE warranty.
B Please use standard installation equipment and tools provided by FOTILE to ensure safe
installation. Make sure to use the expansion tube and expansion bolt provided by our
company, in case the range hood falls down accidentally. The hole drilled into the wall
should precisely match the size of the expansion tube, otherwise the range hood will not
be properly secured to the wall and may fall down.
B The range hood should be connected to a standard power socket with safe grounding.
The midway connection, prolonged electric line or multi-socket wiring may cause electric
shock, overheating and even fire. Power off before wiring and make sure proper mea-
sures have been taken to avoid unexpected connection.
13
