FOTILE SD2F-P3 - Exploded View

_]6_

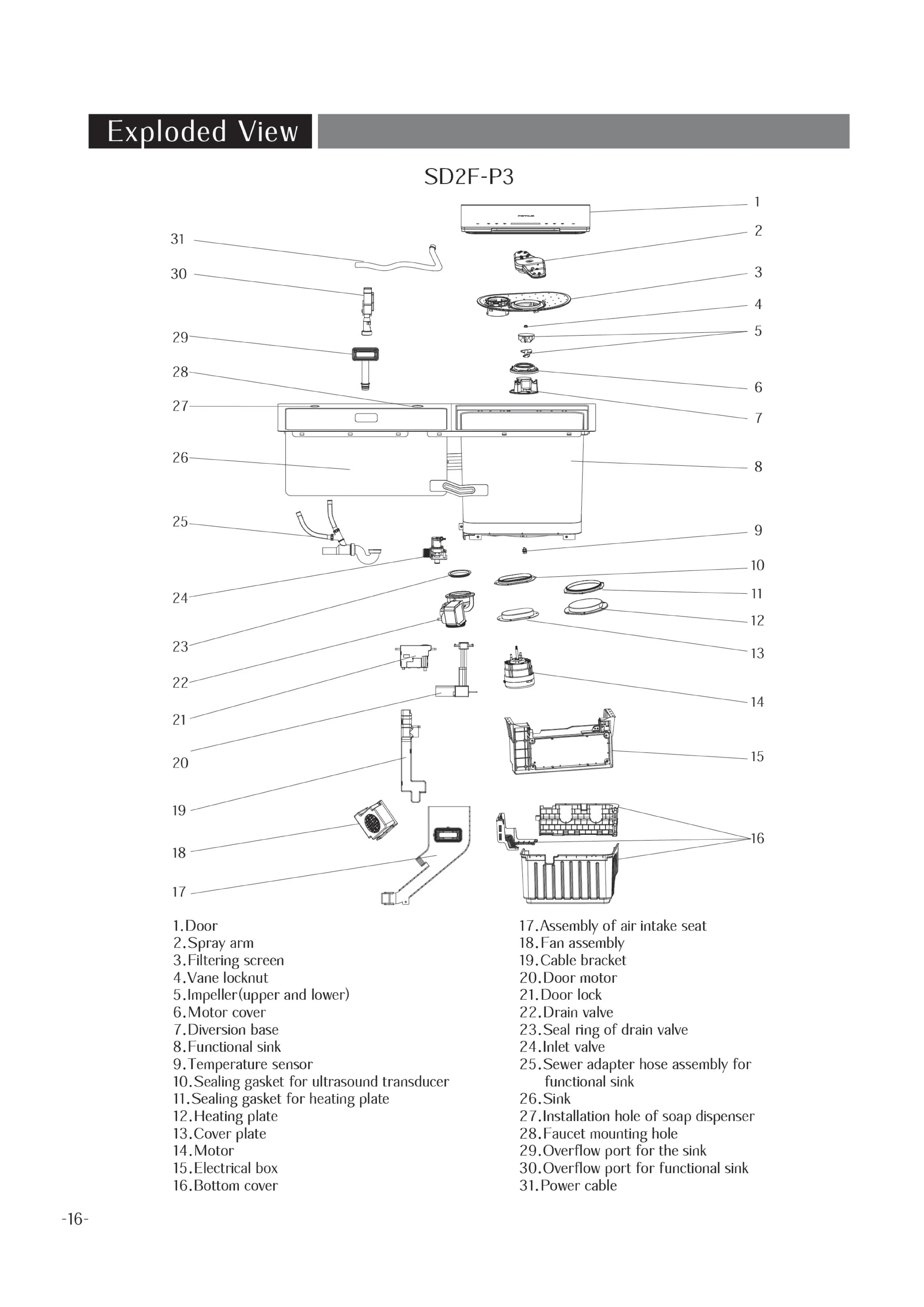

Exploded View f
SD?2F-P3
- e Q_\_
30 §
§
26
25
24
23
2z
21
20
19
18
17/
1.Door
2.Spray arm
3.Filtering screen
4 .Vane locknut
5.lmpeller(upper and lower)
6.Motor cover
7 .Diversion base
8.Functional sink
9. Temperature sensor
10.Sealing gasket for ultrasound transducer
11.Sealing gasket for heating plate
12.Heating plate
13.Cover plate
14.Motor
15. Electrical box
16.Bottom cover
17.Assembly of air intake seat
18.Fan assembly
19.Cable bracket
20.Door motor
21.Door lock
2?2 .Drain valve
23.Seal ring of drain valve
24 .Inlet valve
25.Sewer adapter hose assembly for
functional sink
26.Sink
2 [ .Installation hole of soap dispenser
28.Faucet mounting hole
29.0verflow port for the sink
30.0verflow port for functional sink
31.Power cable
SDZ2E-P31L
1.Door
2.Spray arm
3.Filtering screen
4 Vane locknut
5Impeller (upper and lower)
6.Motor cover
7 .Diversion base
8.Functional sink
9. Temperature sensor
10. Sealing gasket for ultrasound transducer
11.Sealing gasket for heating plate
12.Heating plate
13.Cover plate
14.Motor
15. Electrical box
16. Bottom cover
17.Assembly of air intake seat
18.Fan assembly
19.Cable bracket
20.Door motor
21.Door lock
22.Drain valve
23.Seal ring of drain valve
24 . Inlet valve
25.Sewer adapter hose assembly for
functional sink
26.Sink
2 [ .Installation hole of soap dispenser
28.Faucet mounting hole
29.0verflow port for the sink
30.0Overflow port for functional sink
31.Power cable
