Ceiling cassette
Fan
Coil Unit
, 4
-
pipe system
Model: FP-
KM

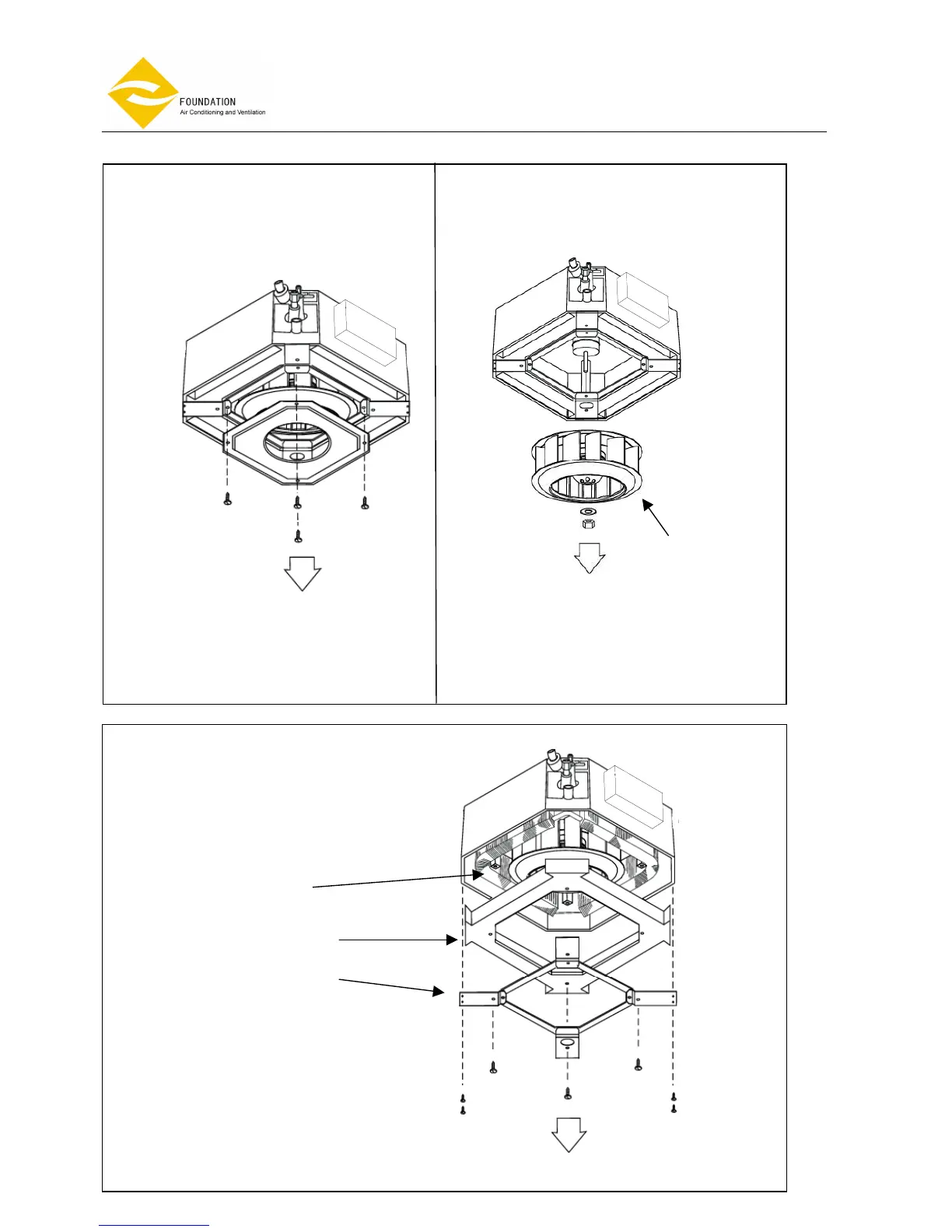

Fig.22
Condensate Drain Pan Removal
Coil
Drain Pan
Drain Pan
Fixture
Fan blower Removal
Fan Blower
Fig.20 Fig.21
Condensate drain pan Removal
