Foundation FP-68KM4 - FP-170-204-238 KM4 Component Identification

Page 33 of 49
Ceiling cassette
Fan
Coil Unit
, 4
-
pipe system
Model: FP-
KM

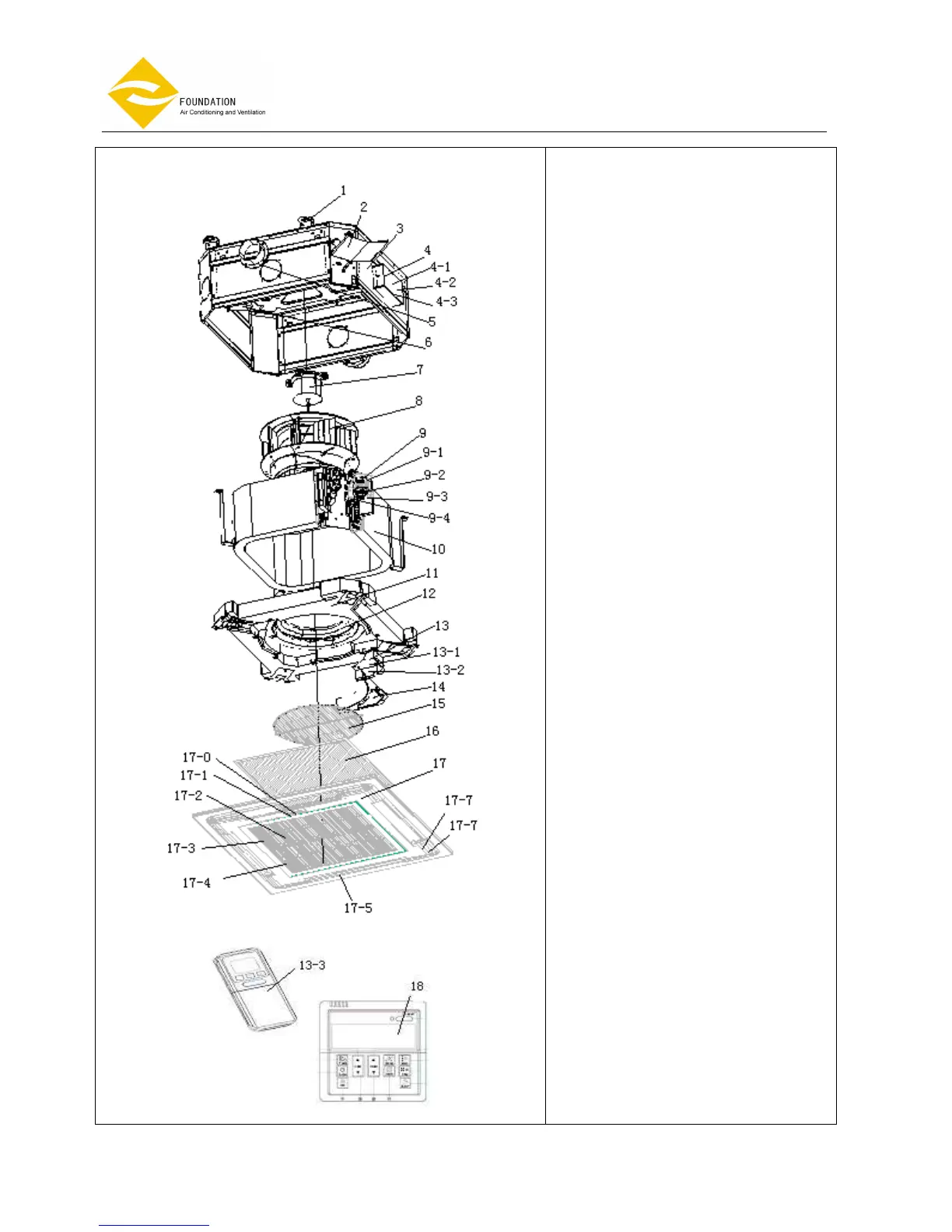

FP-170-204-238KM4
1-Mounting brackets
2-External drain pan
3- Load bearing structure
4- Outside control box
4-1-Terminal Block
4-2-Invert board
4-3-Wire clip
5-Branch duct
6-Fresh air outlet
7-Fan motor
7-1-fan motor capacitor
8-Fan blower
9--Drain pump assembly
9-1- Pump fixture
9-2-Drain pump
9-3-Drainage tube
9-4-Float switch
10-Heat exchanger
11-Drain pan
12-Venturi
13-Inside control box
13-1-Transformer
13-2-Main PCB
13-3- Remote handset
14-Inside control box cover
15- Shield
16-Air filter
17-Panel
17-0- Receiver display
17-1-Receiver label sticker
17-2-Grille
17-3-Bolt（Left）
17-4-Bolt（Right）
17-5-Louver
17-6-Stepping motor
17-7-Fan bearing
18- Wire wall pad
