Foundry FastIron LS Layer 2 Compact Switch Hardware Installation Guide
3 - 8 © 2007 Foundry Networks, Inc. September 2007
Installing a Redundant Power Supply
About the RPS2-EIF Redundant Power Supply
Overview
Foundry Network’s External Redundant Power Supply (RPS2-EIF) can supply a maximum of 150 Watts of output
power per port, a total of 600 Watts of backup power to four FasrIron devices in the event of an AC loss or failure
of an internal power supply.
The system operates as a backup to a switch's internal power supply. If an internal power supply fails, the RPS will
support the full load of the switch without affecting network operation.
The following devices are supported by the FastIron RPS2-EIF: Foundry FastIron LS624 and FastIron LS648.
Features and Benefits
Supports four FastIron devices with 12V DC output
Status LEDs located on the front panel
AC line cord can draw power from a different supply circuit
DC line cord provides backup power to the attached device
Thermal overload protection prevents the RPS from overheating if a thermal overload occurs.
Over-voltage protection shuts down an output channel if the voltage exceeds a preset threshold.
Over-current protection shuts down the RPS if the output load exceeds a preset threshold.
Short-circuit protection prevents the RPS from being damaged from a short circuit on any output channel.
The power supply will operate under a no-load condition.
Front and Rear Panels
Four power indicators and one fan indicator are located on the RPS’s front panel. The AC supply and DC backup
receptacles are located on the RPS’s rear panel.

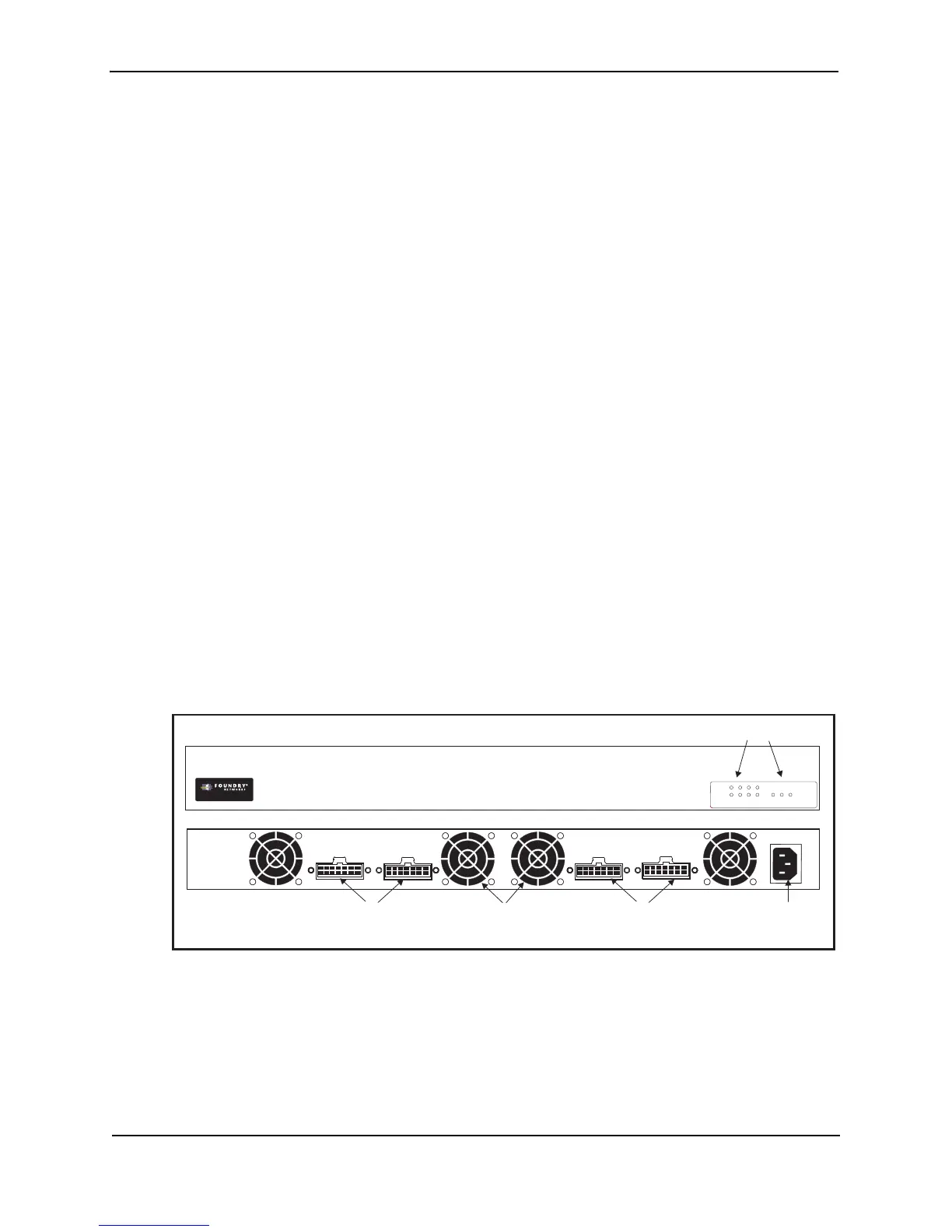

Figure 3.4 Front and rear panels
Package Contents
Redundant Power Supply Unit (RPS2-EIF)
One AC Supply Power Cord — US, Continental Europe or UK
Four DC Backup Power Cords with IEC connectors on both ends (length 152 cm each)
Rack Mounting Kit containing brackets and screws
Adhesive feet
100-240V, 50-60Hz 14A
BPS 1BPS 2
BPS 3BPS 4
FastIron RPS2-EIF
Redundant Power Sockets 4~3
Fans
Redundant Power Sockets 2~1
Power Socket
Port and System Status Indicators
Link
Activity
12
3
4
Fan Thermal Power
