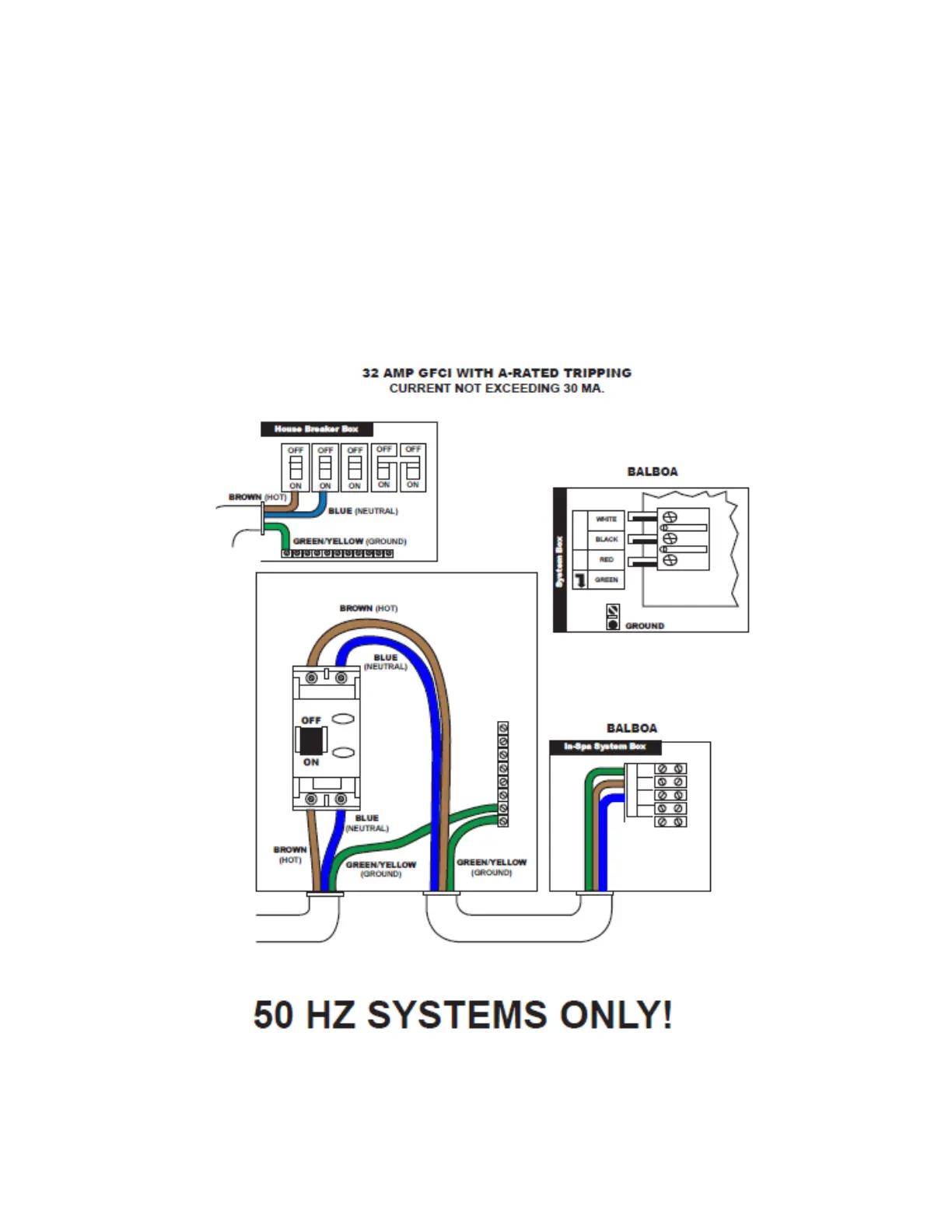

EURO WIRING SPECS (50HZ)
For 50 HZ Systems – 1 to 3 Pumps - Use 1 X 32 AMP Breakers
For 50 HZ Systems – 4 Pumps – Use 2 X 32 AMP Breakers
Use 6 Gauge Wire
For Supply Connections,
use Conductors sized on the basis of 60 Degrees Celsius Amperage
but rated minimum of 90 Degrees Celsius.
Torque Range for Main Terminal Block
27 – 30IN. LBS – (31.3 – 34.5 KG)
