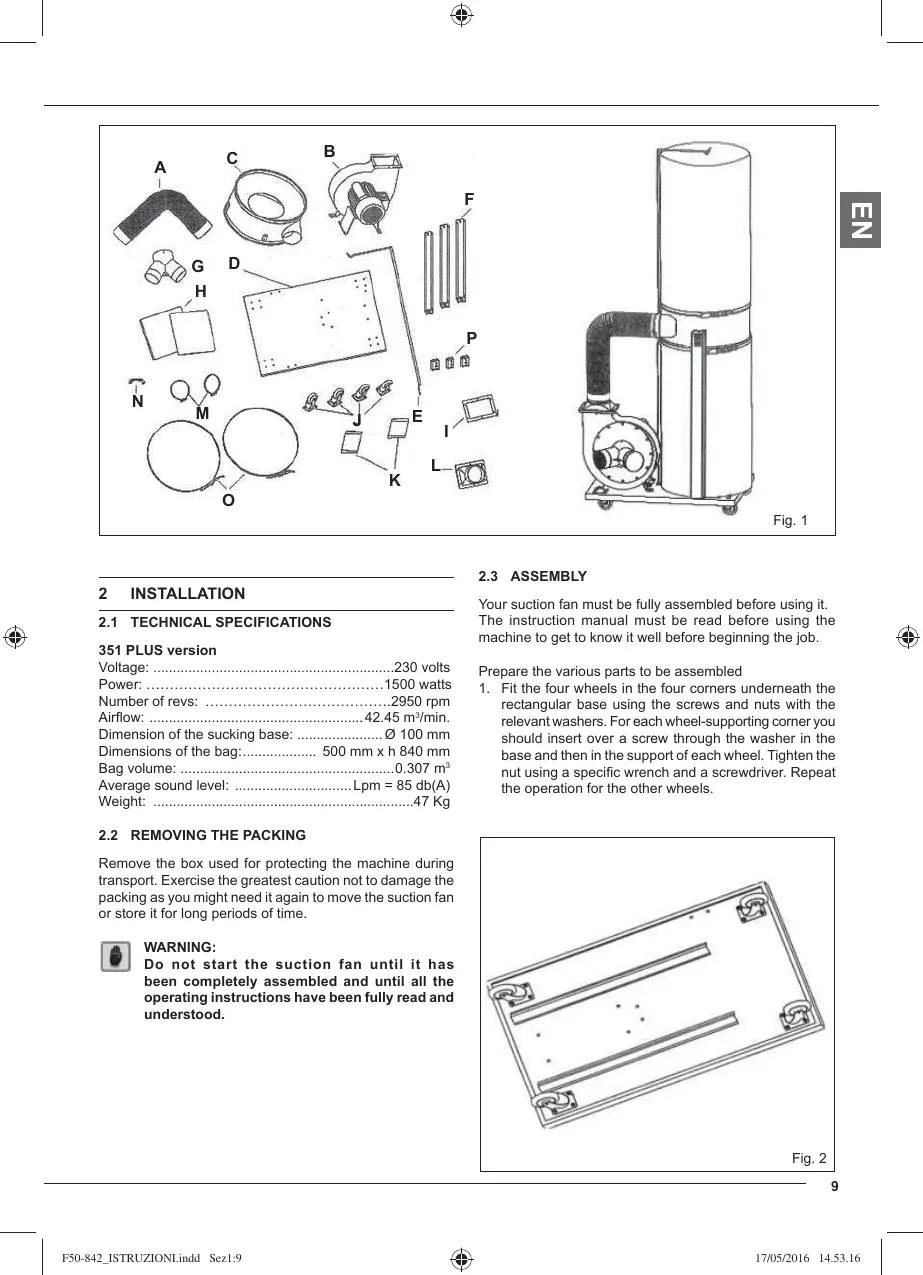

2 INSTALLATION
2.1 TECHNICAL SPECIFICATIONS
351 PLUS version
Voltage: ..............................................................230 volts
Power: … …………………………………………1500 watts
Number of revs: ………………………………….2950 rpm
Airfl ow: .......................................................42.45 m
3
/min.
Dimension of the sucking base: ...................... Ø 100 mm
Dimensions of the bag: ................... 500 mm x h 840 mm
Bag volume: .......................................................0.307 m
3
Average sound level: ..............................Lpm = 85 db(A)
Weight: ...................................................................47 Kg
2.2 REMOVING THE PACKING
Remove the box used for protecting the machine during
transport. Exercise the greatest caution not to damage the
packing as you might need it again to move the suction fan
or store it for long periods of time.
WARNING:
Do not start the suction fan until it has
been completely assembled and until all the
operating instructions have been fully read and
understood.
2.3 ASSEMBLY
Your suction fan must be fully assembled before using it.
The instruction manual must be read before using the
machine to get to know it well before beginning the job.
Prepare the various parts to be assembled
1. Fit the four wheels in the four corners underneath the
rectangular base using the screws and nuts with the
relevant washers. For each wheel-supporting corner you
should insert over a screw through the washer in the
base and then in the support of each wheel. Tighten the
nut using a specifi c wrench and a screwdriver. Repeat
the operation for the other wheels.
Fig. 2
Fig. 1
A
G
C
B
D
H
N
M
F
P
J
O
E
K
I
L
