Fig. 5

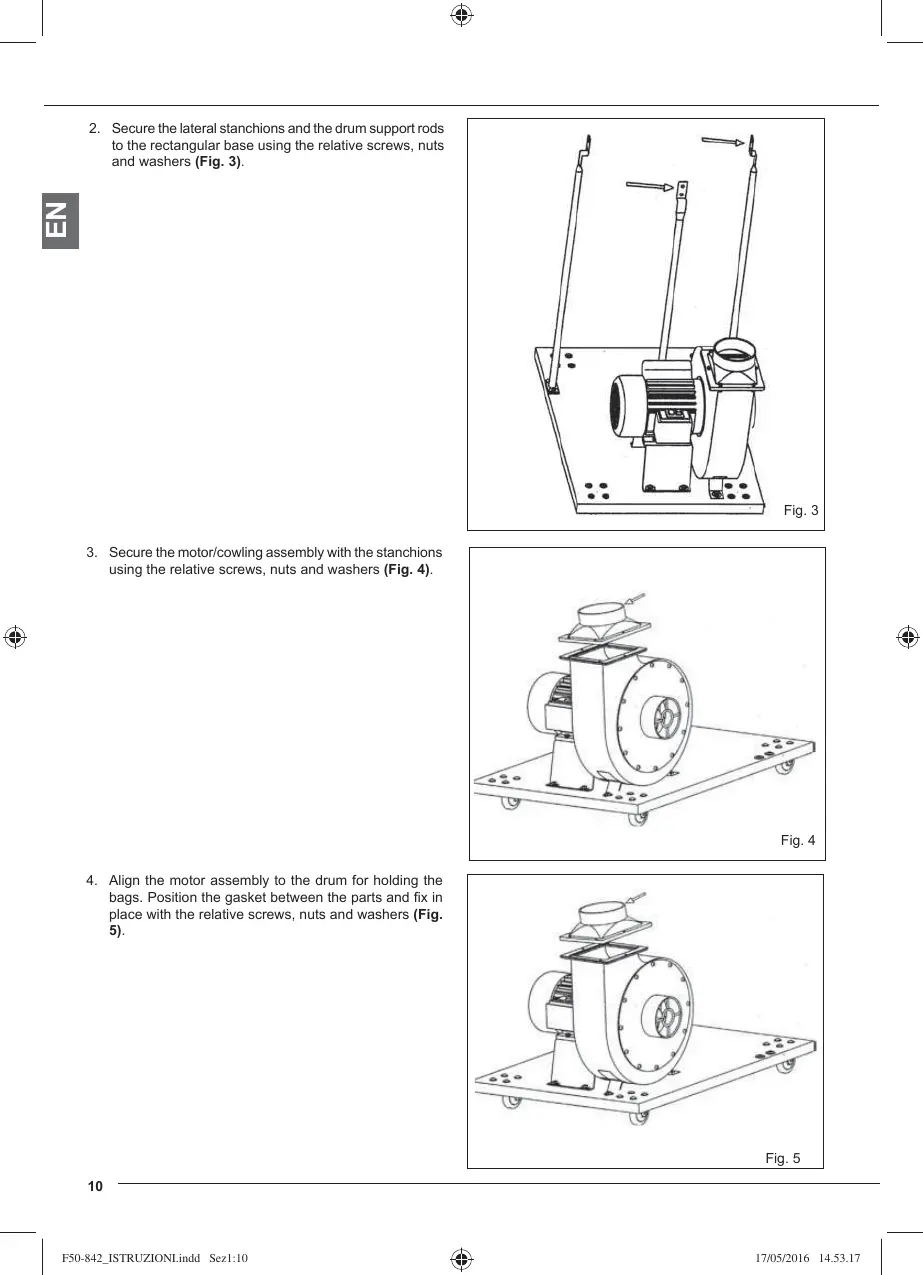

2. Secure the lateral stanchions and the drum support rods

to the rectangular base using the relative screws, nuts

and washers (Fig. 3).

3. Secure the motor/cowling assembly with the stanchions

using the relative screws, nuts and washers (Fig. 4).

4. Align the motor assembly to the drum for holding the

bags. Position the gasket between the parts and ﬁ x in

place with the relative screws, nuts and washers (Fig.

5).

Fig. 3

Fig. 4

F50-842_ISTRUZIONI.indd Sez1:10F50-842_ISTRUZIONI.indd Sez1:10 17/05/2016 14.53.1717/05/2016 14.53.17
