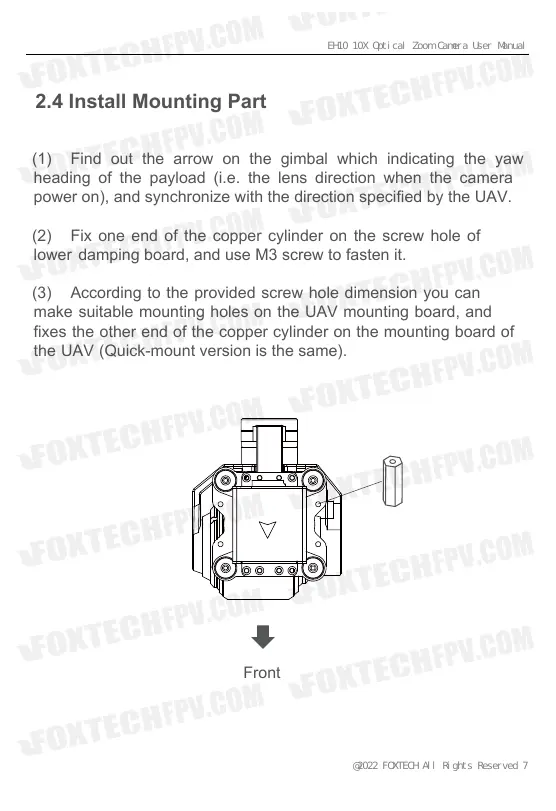

2.4 Install Mounting Part
(1) Find out the arrow on the gimbal which indicating the yaw
heading of the payload (i.e. the lens direction when the camera
power on), and synchronize with the direction specified by the UAV.
(2) Fix one end of the copper cylinder on the screw hole of
lower damping board, and use M3 screw to fasten it.
(3) A
ccording to the provided screw hole dimension you can
make
suitable mounting holes on the UAV mounting board, and
fixes the other end of the copper cylinder on the mounting board of
the UAV (Quick-mount version is the same).
Front
EH10 10X Optical Zoom Camera User Manual
@2022 FOXTECH All Rights Reserved 7
