FOXTECH Nimbus VTOL V2(DA16S Combo) User Manual
©
2019 FOXTECH All Rights Reserved
19

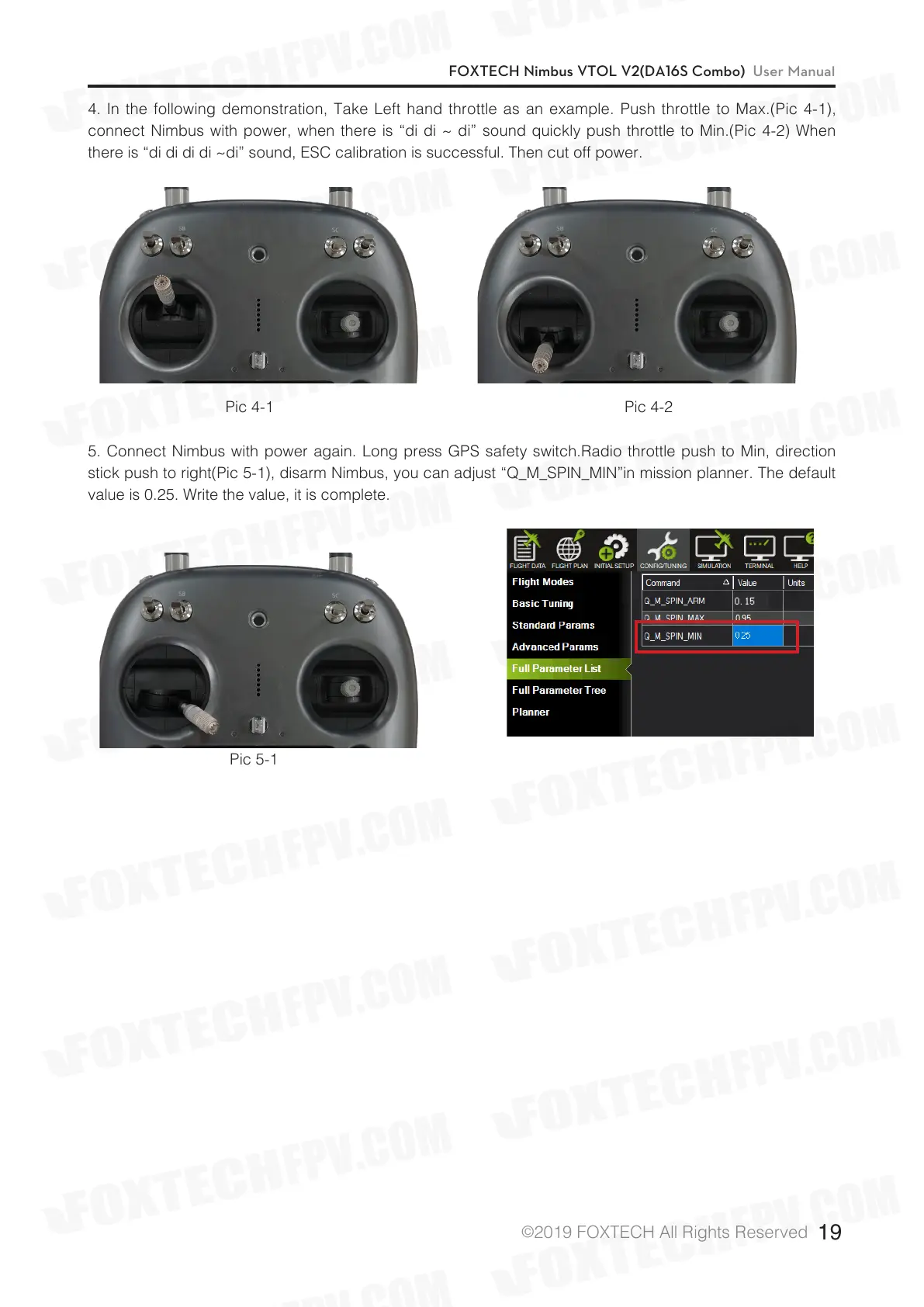

5. Connect Nimbus with power again. Long press GPS safety switch.Radio throttle push to Min, direction
stick push to right(Pic 5-1), disarm Nimbus, you can adjust “Q_M_SPIN_MIN”in mission planner. The default
value is 0.25. Write the value, it is complete.
4. In the following demonstration, Take Left hand throttle as an example. Push throttle to Max.(Pic 4-1),
connect Nimbus with power, when there is “di di ~ di” sound quickly push throttle to Min.(Pic 4-2) When
there is “di di di di ~di” sound, ESC calibration is successful. Then cut off power.
Pic 4-1
Pic 5-1
Pic 4-2
