FOXTECH Nimbus VTOL V2(DA16S Combo) User Manual
©
2019 FOXTECH All Rights Reserved
8

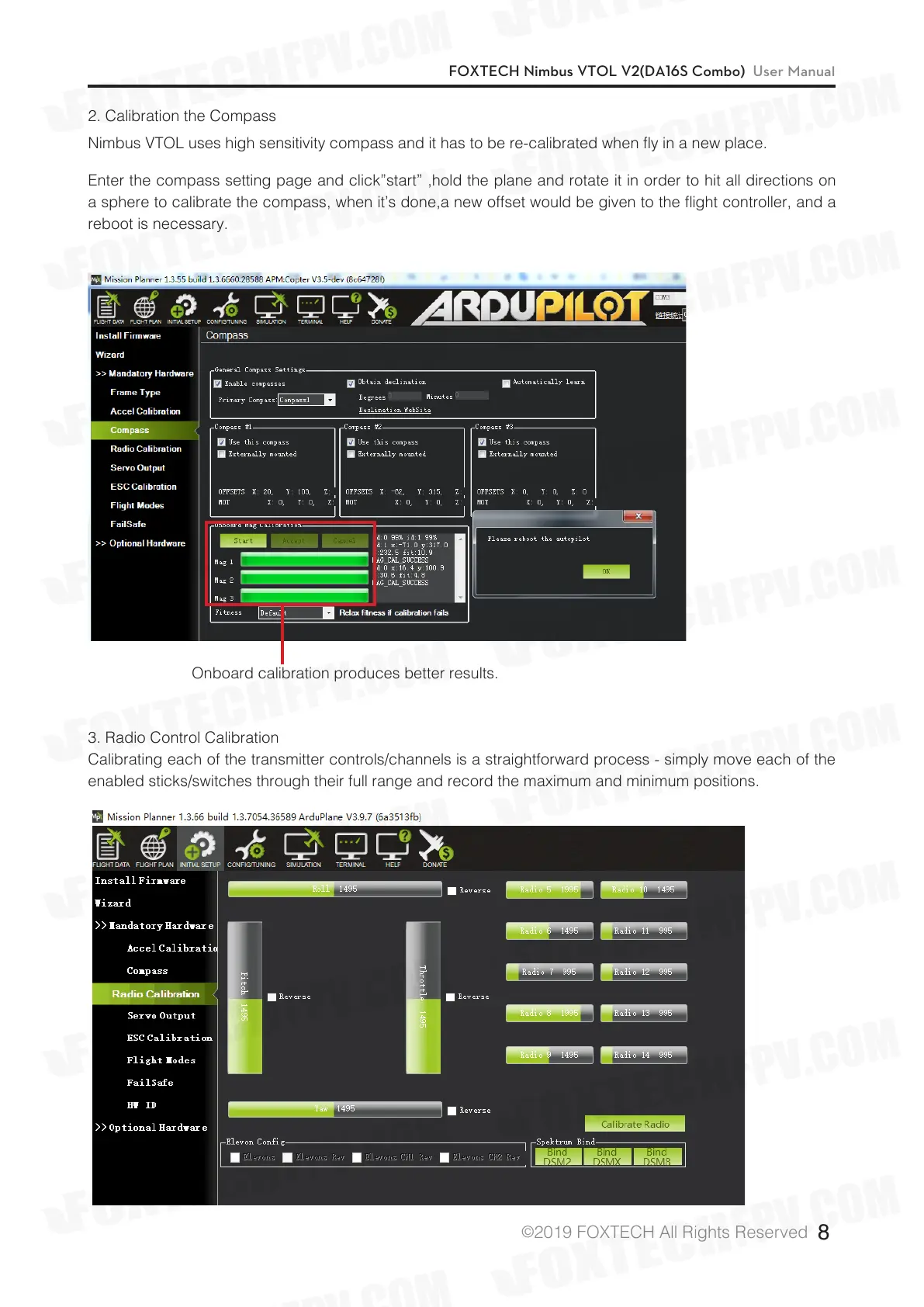

2. Calibration the Compass
Nimbus VTOL uses high sensitivity compass and it has to be re-calibrated when fly in a new place.
Enter the compass setting page and click”start” ,hold the plane and rotate it in order to hit all directions on
a sphere to calibrate the compass, when it’s done,a new offset would be given to the flight controller, and a
reboot is necessary.
Onboard calibration produces better results.
3. Radio Control Calibration
Calibrating each of the transmitter controls/channels is a straightforward process - simply move each of the
enabled sticks/switches through their full range and record the maximum and minimum positions.
