Foxtronics FOXCART MARK II - AC Plug and Receptacle Dimensions

3448 W. Mockingbird Ln. Dallas, TX 75235 PHONE: 214/358-4425 FAX: 214/358-1519

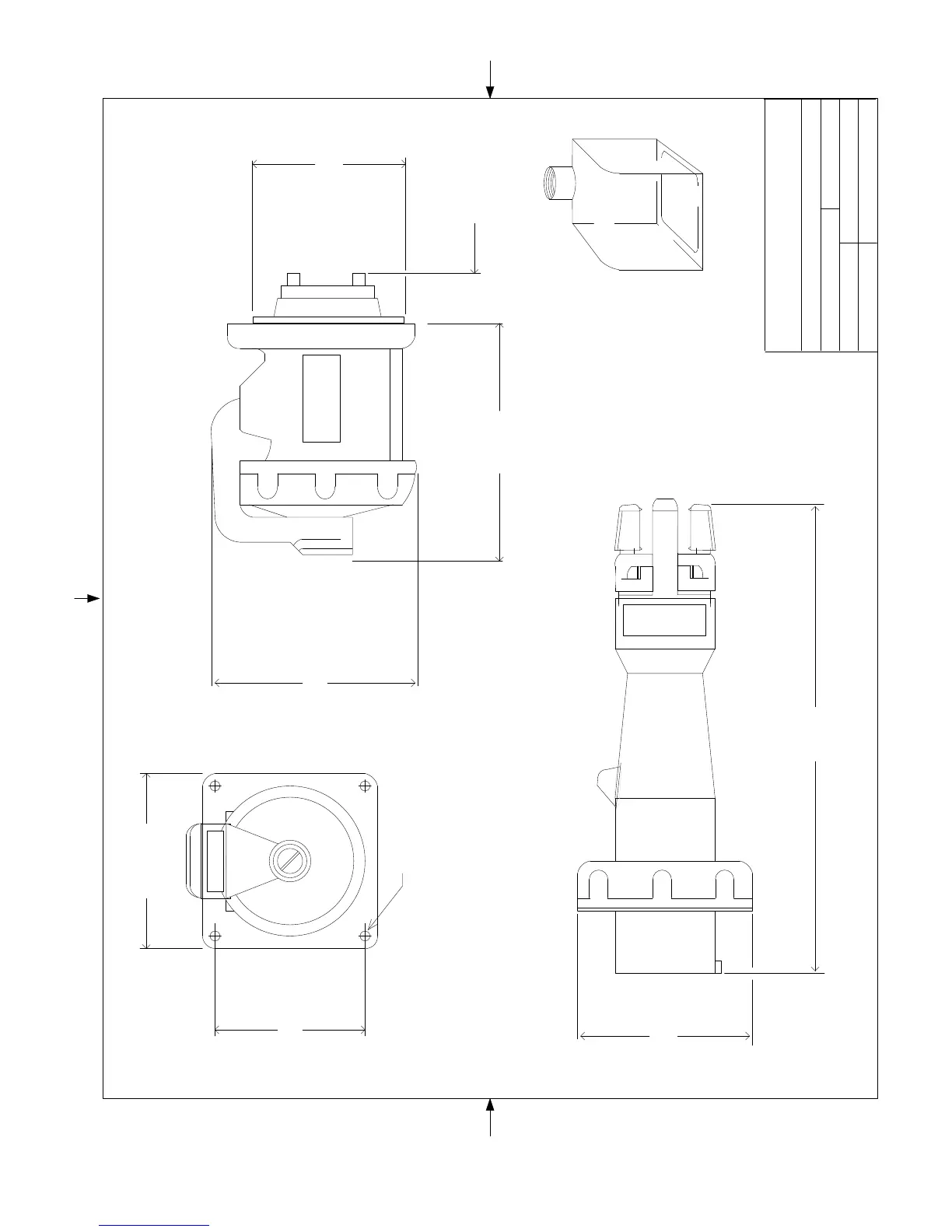

TITLE: HUBBELL 460P7W & 460R7W AC PLUGS
DRAWING NO: 400-0005-034
PAGE: 1 OF 1
REV: 10/01/01
DRAWN BY: SE
APPROVED BY:
DATE: 10/01/01
HUBBELL 460R7W WALL RECEPTICLE
FIGURE 10.
3 7/8"
4 1/2"
98.4 MM SQ.
114.4 MM SQ.
7/32" 5.5 MM DIA.
(4 HOLES)
FRONT
VIEW
5 7/64"
129.7 MM
4 5/64"
103.5 MM
1 11/16"
42.8 MM
3 3/32"
88 MM DIA.
END
VIEW
4 1/2"
114 MM
10 9/64"
257.5 MM
WALL
BOX
P/N 401-0038-000
P/N 401-0006-007
P/N 401-0037-000
HUBBELL 460P7W WALL PLUG
foxtronics
incorporated
