FPZ SCL K07R - Installation Sketches; Pressure Service; Parallel Pressure Service; Vacuum Service

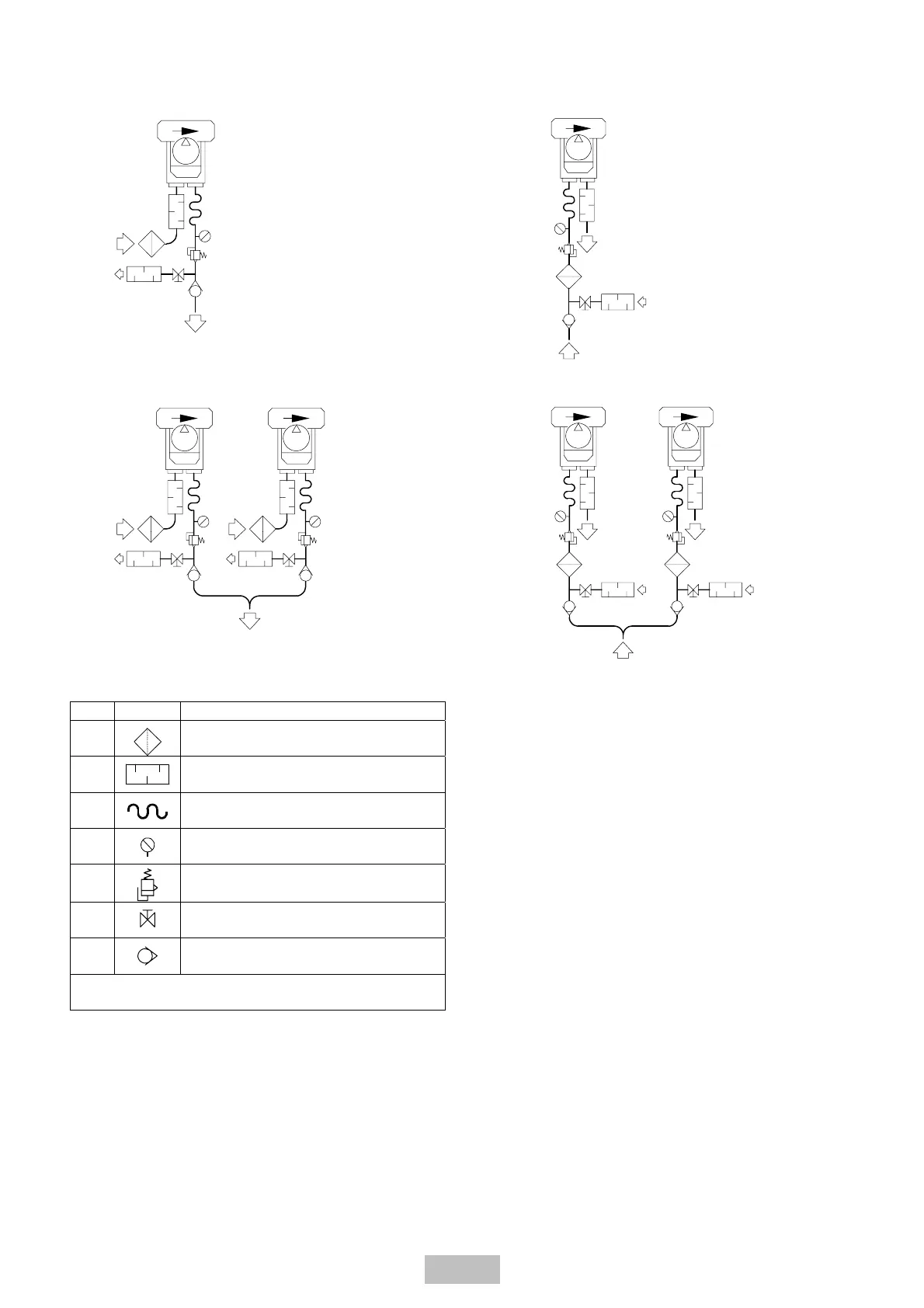

2. INSTALLATION SKETCHES
2.1 PRESSURE SERVICE
2.2 PARALLEL PRESSURE SERVICE
2.5 LIST ACCESSORIES
2.3 VACUUM SERVICE
2.4 PARALLEL VACUUM SERVICE
GB - 18/39
Item
Denomination
1
Filter – Inline filter
(2)
Silencer
3
Flexible coupling
4
Pressure – Vacuum gauge
5
Safety valve
6
Valve
7 Non return valve
(x) IF NECESSARY
