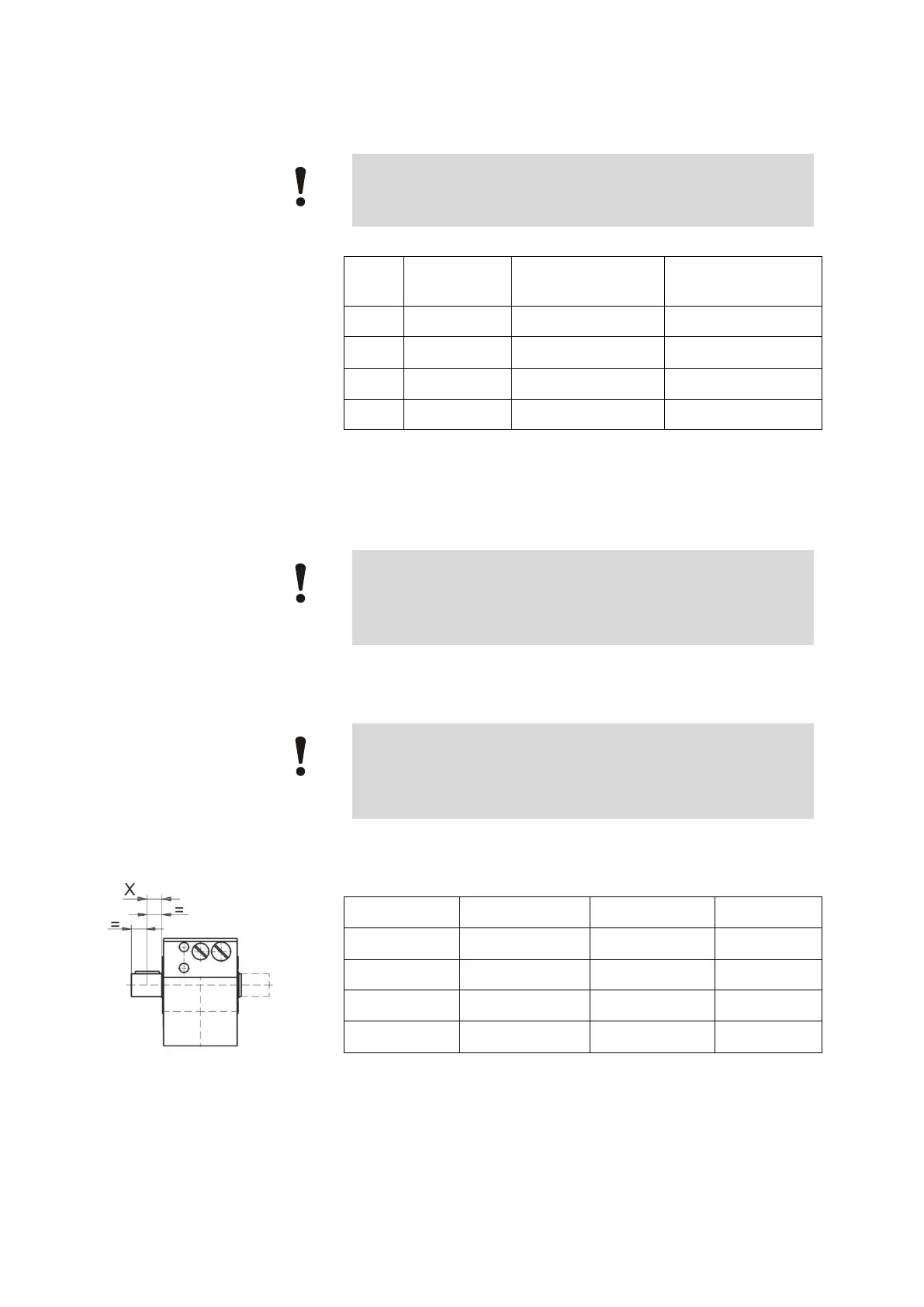

Mounting
20
BEWARE!
Respect the correct screw length, since a wrong length
would damage the housing.
Type Torque
Min. screwing
depth
Max. screwing
depth
MR6 14 NM 10 mm 15 mm
MS12 14 NM 10 mm 12 mm
MR30 25 NM 12 mm 15 mm
AG160
25 NM 12 mm 16 mm
(Table 1)
Mount the motor with the four screws, without mechanical tensions.
Comply with the above-mentioned torques.
BEWARE!
Risk of damages to the bearings and securing rings
– Do not mount attachments such as couplings or chain
wheels with the help of impacts or shocks.
Drive shaft forces
BEWARE!
Risk of damages to the drive shaft
– The authorised forces on the drive shaft can be found
in Table 2.
The following forces on the drive shaft are authorised:
Type Radial load Axial load X
MR 6 1500 N 750 N 20 mm
MS12 1500 N 750 N 20 mm
MR30 2000 N 1000 N 20 mm
AG160 2000 N 1000 N 25 mm
(Table 2)
