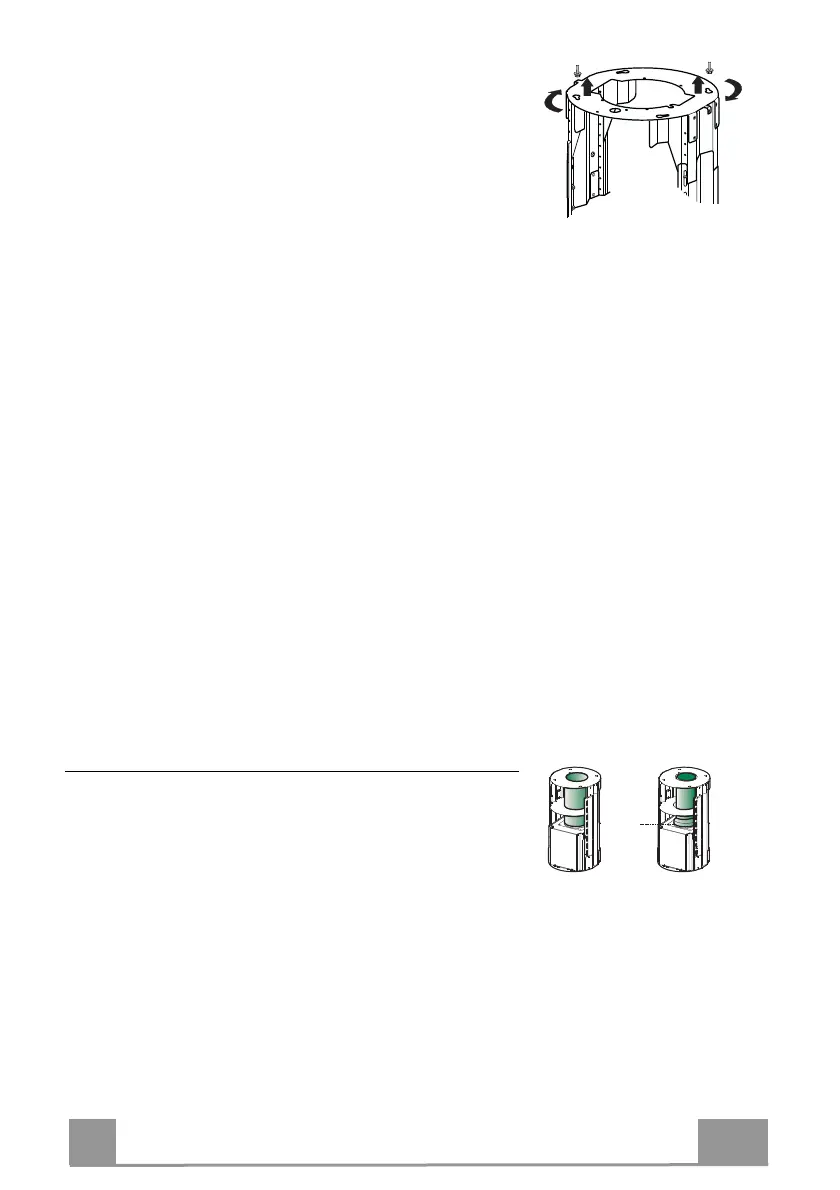

FIXING THE FRAME
• Lift the frame up, making sure that the index over the
frame plate is turned forwards.
• Fit the frame slots onto the two screws inserted in the ceil-
ing as above, and turn until reaching the centre of the ad-
justment slot.
• Tighten the two screws and fasten the other two screws
provided; before locking the screws completely, it is possi-
ble to adjust the frame by turning it, making sure that the
screws do not come out of their housing in the adjustment
slot.
• The Frame must be securely fastened so as to support both
the weight of the Hood and the stress caused by occasional
axial pressure against the fitted Appliance. After fixing,
make sure that the base is stable even when the Frame is
subjected to lateral stress.
• If the Ceiling is not strong enough in the area where the
hood is to be fixed, the Installer must strengthen the area
using suitable plates and counterplates anchored to resistant
structures.
2
1
1
2
Ducted version air exhaust system Connection
When installing the ducted version, connect the hood to the
chimney using either a flexible or rigid pipe ø 150 or 120
mm, the choice of which is left to the installer.
• To install a ø 120 mm air exhaust connection, insert the
reducer flange 9 on the hood body outlet.
• Fix the pipe using the pipe clamps 25 (not provided).
• Remove any activated charcoal filters.
9
ø 120ø 150
