Attach disposer onto the upper mounting ring
by aligning the three mounting tabs on the
lower mounting ring with the slide-up ramps on
the upper mounting ring and rotating counter
clockwise.
A
C
B

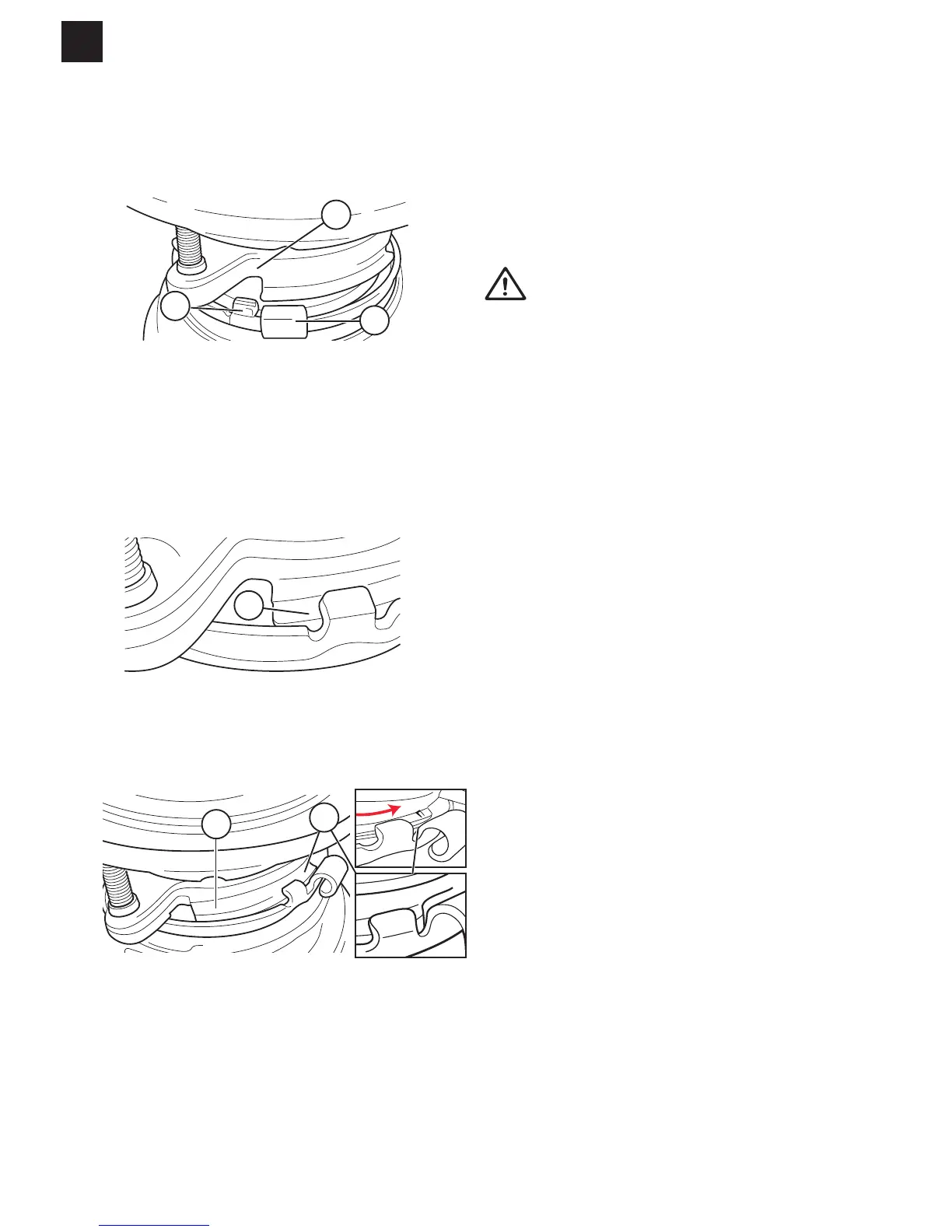

The lower mounting ring (which is part of the
disposer) has 3 tabs that grab the mounting ring
ramp.
(A) points to the upper mounting ring.
(B) is the tab that slides up onto the “Ramp”.
(C) is the „Ear“ that is used to help rotate the lower
mounting ring.
Use a screwdriver for leverage if needed.
D
Lift and turn the lower mounting ring counter
clockwise until all three mounting tabs lock over
the ridges (F) on the slide-up ramps (D) of the
upper mounting ring.
F
E
As the lower mounting ring is turned counter
clockwise each tab slides up onto the upper
mounting ring ramp (E) and locks in position over
the ridges (F).
Use a screwdriver or hammer for leverage if
needed.
If a disposer needs to be removed, tapping on the
Ear clockwise with a hammer will easily loosen
the lower mounting ring.
Electrical connection
Connect disposer to appropriate
household current only.
The receptacle to which this appliance is connected
must be controlled by a switch.
WARNING: Improper connection of the
equipment-earthing conductor can result in a
risk of electric shock. Check with a qualified
electrician or serviceman if you are in doubt as to
whether the appliance is properly earthed. Do not
modify the plug provided with the appliance if it will
not fit the outlet. Have a proper outlet installed by
a qualified electrician.
Earthing instructions
FOR WASTE DISPOSERS EQUIPPED WITH AN
EARTHED PLUG-IN POWER CORD
This appliance must be earthed. In the event of
a malfunction or breakdown, earthing provides
a path of least resistance for electric current to
reduce the risk of electric shock. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
If the supply cord is damaged it must be replaced
by the manufacturer, its service agent or similarly
qualified person in order to avoid a hazard.
Removing an attached power cord or plug voids
the warranty.
The following UK Electrical Section is for United
Kingdom only - skip if not applicable.
WHEN USING THE ATTACHED PRE-WIRED MOULDED
PLUG AND LEAD (fig. 3A)
9 These disposers are engineered to be connected
to a 220/240 V~-50/60 Hz electrical supply
through the attached three-pin plug and into a
wired socket.
9 The disposer must be protected by a BS 1363 13
Amp fuse. The fuse is included within the molded
plug and lead, attached to the disposer.
9 The 13 Amp double pole switched spur switch
should be positioned higher than the sink
