Fransgard V-6500 - Visual Clutch Adjustment Guide; Check Lock Nut Tightness; Loosen Adjustment Bolts; Tighten Bolts Against Stop

Clutch Adjustment for Fransgård forestry winches.
Basic adjustment – after changing lining, chain wheel and main
shaft
5
Bolt B
Against stop
Nut C
Make sure the large 1” lock nut (Nut
C) is tightened and will not move on
the main shaft when a load is applied
on the winch.

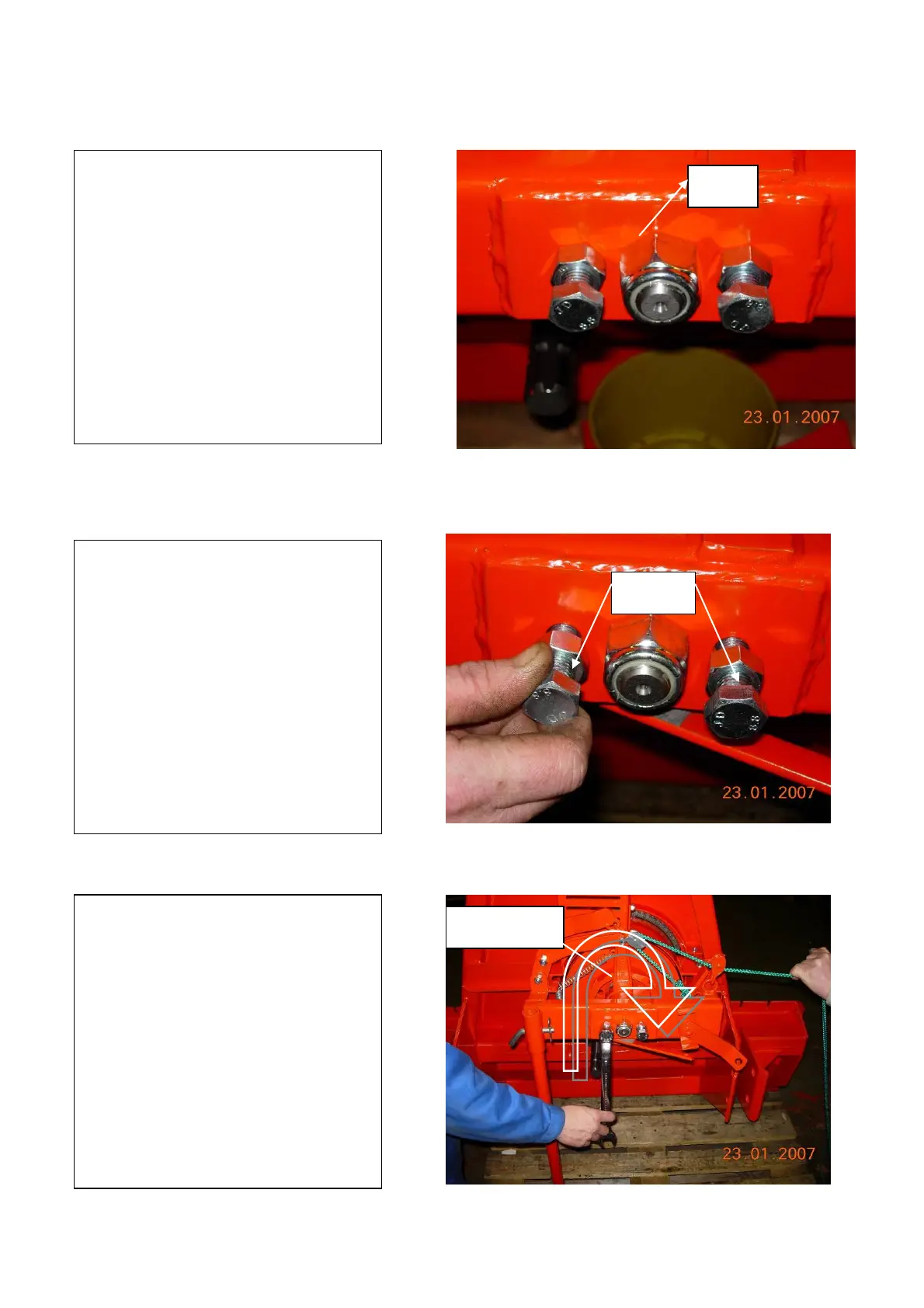

Loosen the two clutch adjustment
bolts (Bolt B).
Get someone to pull the green cord,
so the clutch arm is up against the
welded stop (this is with the
maximum green cord pull)..
Tighten the two clutch adjustment
bolts (Bolt B) until you feel
resistance.
