5
RFID █ www.freenove.com
Circuit

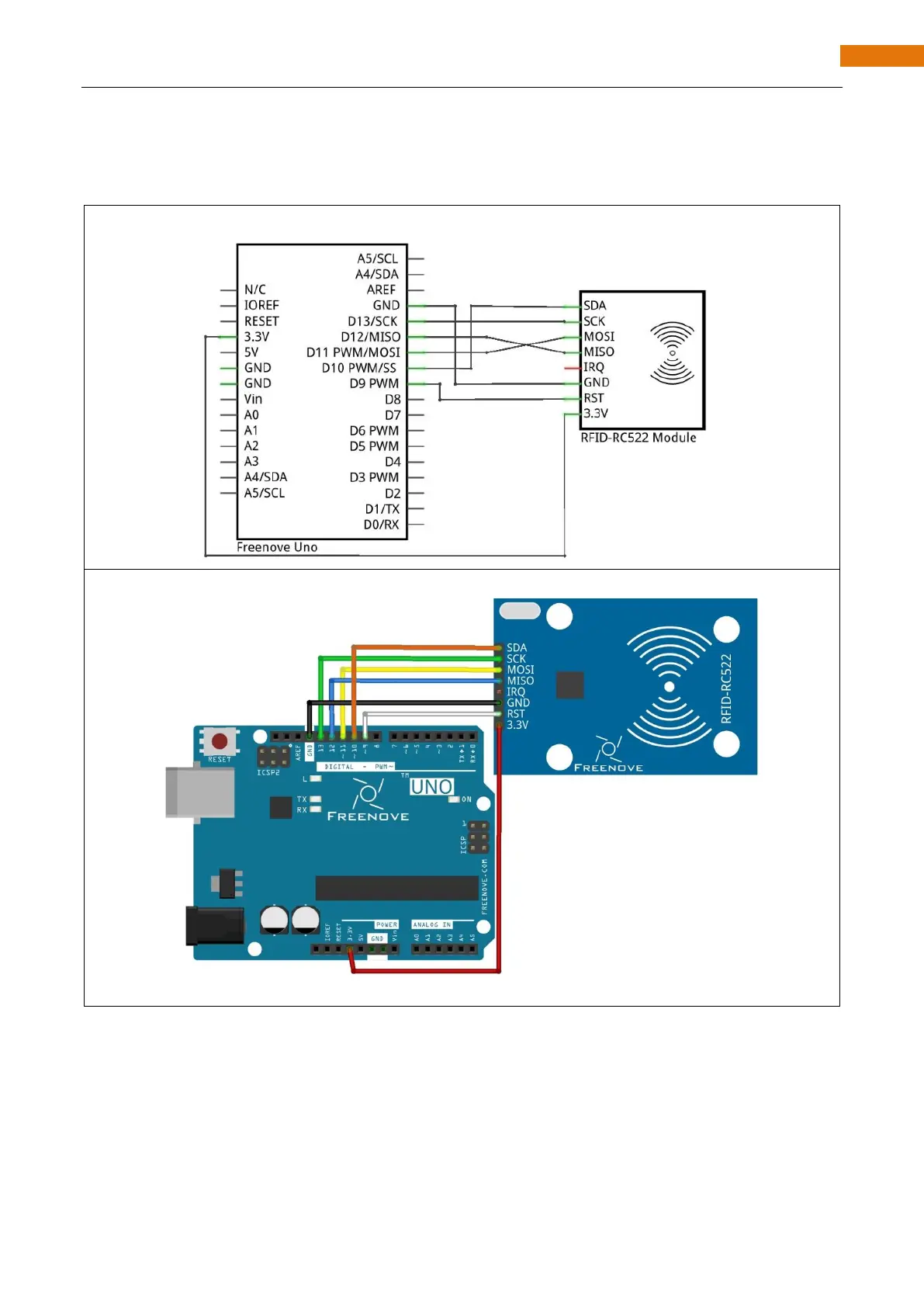

The connection of Freenove UNO board and RFID module is shown below.
Schematic diagram
Hardware connection
