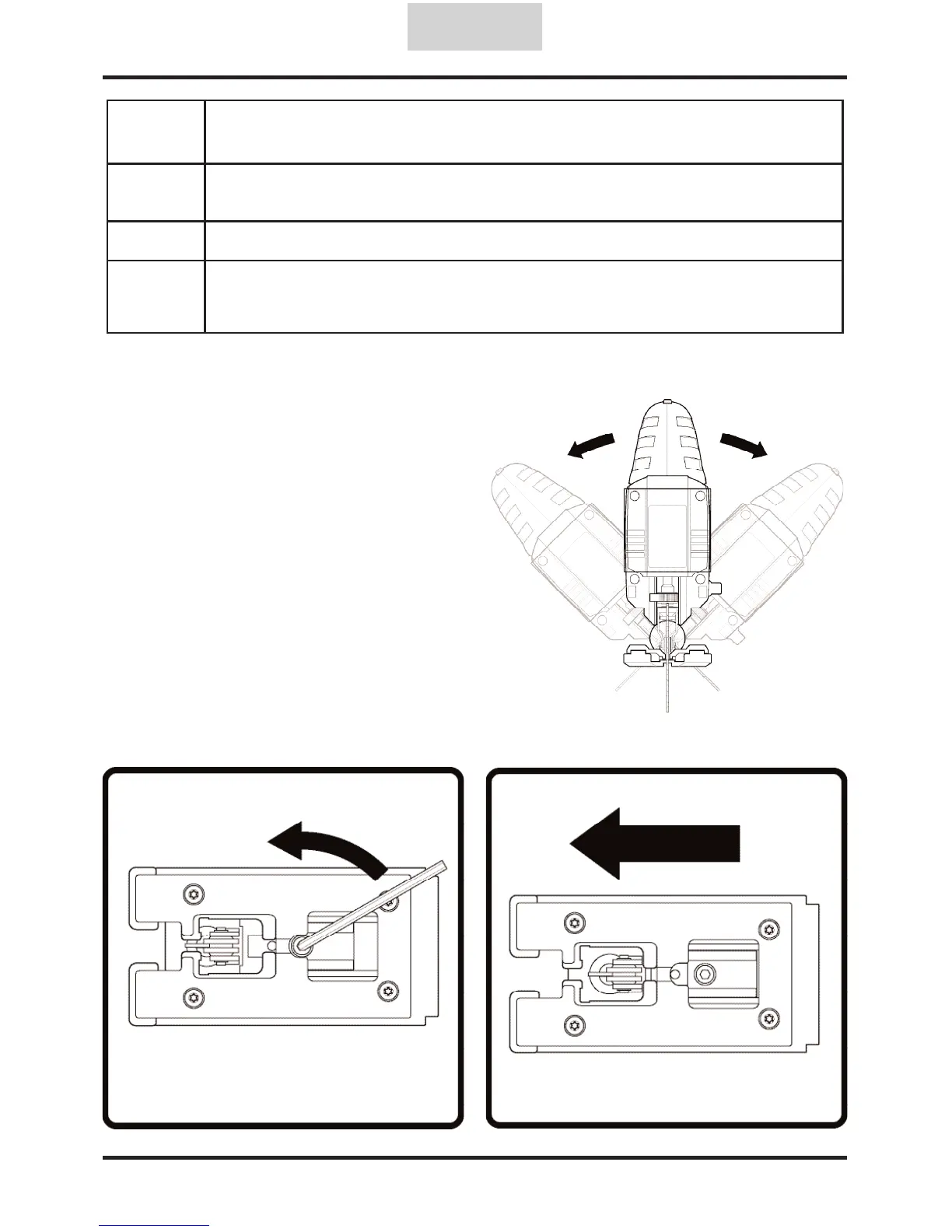

7. Base Plate Angle Adjustment
The base plate may be tilted to produce angle
cuts up to 45º - Fig. 10.
To adjust the base plate, unplug the tool then
loosen the screw on the bottom of the saw with
the included allen key – Fig. 11.
Position the base as far forward as possible to
provide for maximum blade inclination – Fig. 12.
Position the base at the desired cutting angle and
tighten the screw in the bottom of the saw – Fig. 13
& 14.
Note: The base should be placed as far forward
as possible to allow for unlimited saw blade
inclination.
English
Setting 0 Good for metals, plastics, and best quality finish in wood and wood products
such as plywood, chip board, etc. Also good for scroll work.
Setting 1 Better quality cut in wood and wood products where speed of cut is more
imortant than quality of cut.
Setting 2 Good quality with faster cut speed in wood and wood products.
Setting 3 Fastest speed with coarse cuts in wood and wood products where speed is
more important than quality of cut.
Fig. 11
Fig. 12
Fig. 10
