140.925-IOM (APR 2019)
Page 9
XLP3 EVAPORATIVE CONDENSERS
INSTALLATION

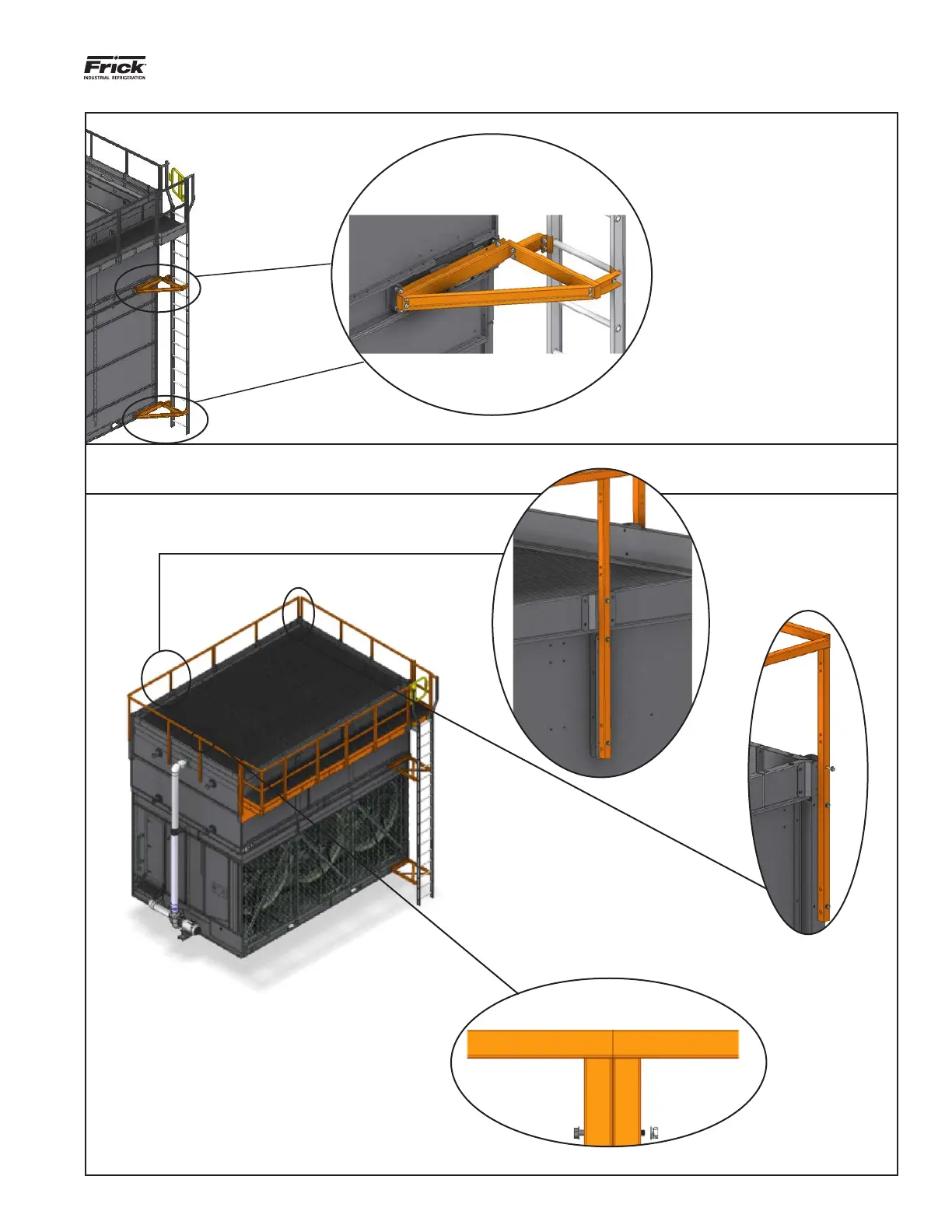

Figure 9 — End Ladder Installation
Detail A. End Ladder Bracket
Detail A. Perimeter
Guardrail
Installation
Detail B. Corner
Guardrail Installation
Detail C. Perimeter Guardrail Installation
Figure 10 — Perimeter Guardrail Installation
