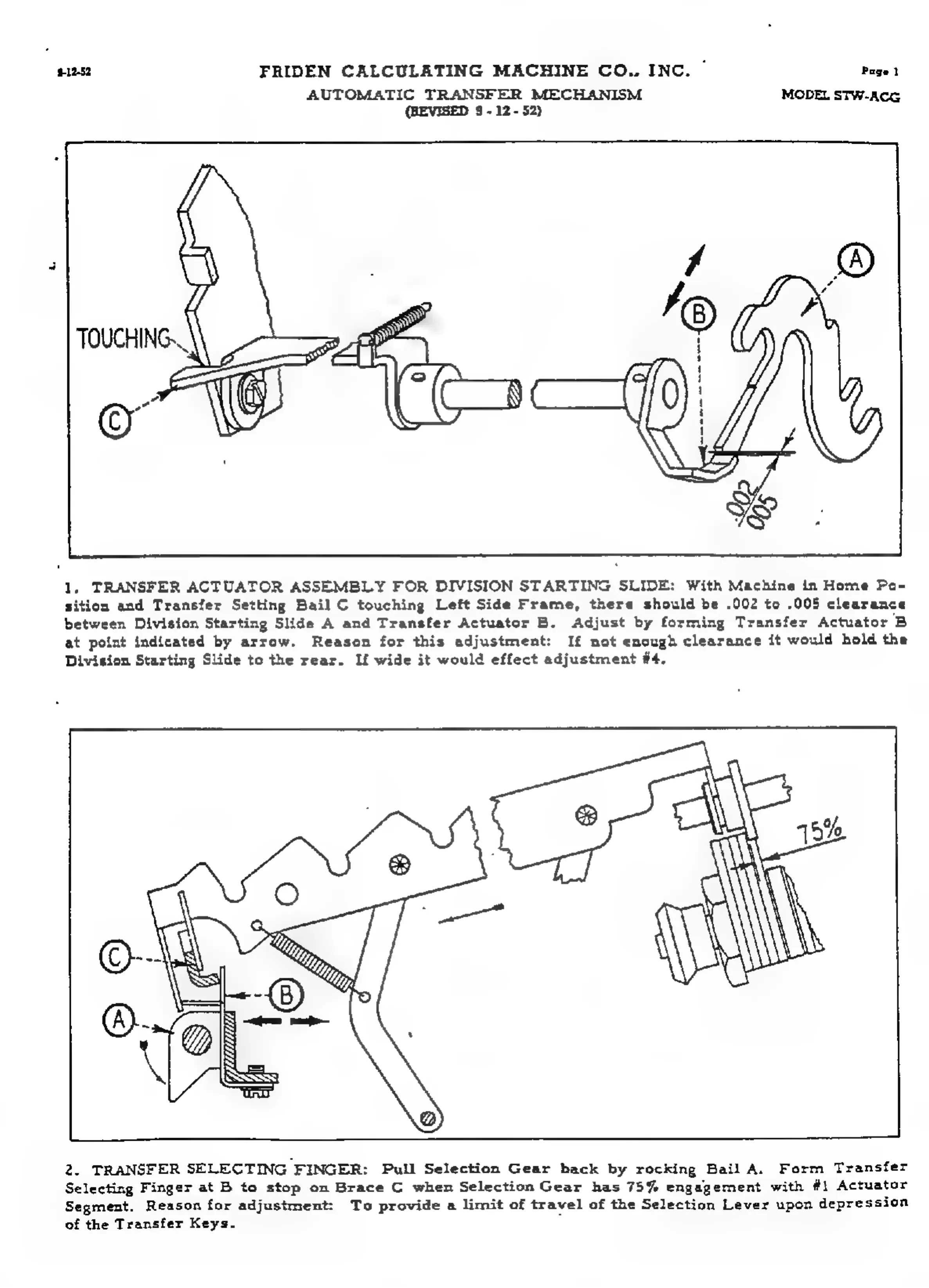

#1282 FRIDEN CALCULATING MACHINE CO.. INC. © : Page 1
AUTOMATIC TRANSFER MECHANISM MODEL STW-ACG
(BEVISED $§ - 12-52}
TOUCHING...
o
1,
TRANSFER
ACTUATOR
ASSEMBLY
FOR
DIVISION
STARTING
SLIDE:
With
Machine
in
Home
Pa-
sition
and
Transfer
Setting
Bail
C
touching
Left
Side
Frame,
there
should
be
.002
to
.005
clearance
between
Division
Starting
Slide
A
and
Transfer
Actuator
B.
Adjust
by
forming
Transfer
Actuator
B
at
point
indicated
by
arrow.
Reason
for
this
adjustment:
If
not
enough
clearance
it
would
hold
the
Division
Starting
Slide
to
the
rear.
If
wide
it
would
effect
adjustment
#4,
2.
TRANSFER
SELECTING
FINGER:
Pull
Selection
Gear
back
by
rocking
Bail
A.
Form
Transfer
Selecting
Finger
at
B
to
stop
on
Brace
C
when
Selection
Gear
has
75%
engagement
with
#1
Actuator
Segment.
Reason
for
adjustment:
To
provide
a
limit
of
travel
of
the
Selection
Lever
upon
depression
of
the
Transfer
Keys.
:
